GW-40B Steel Bar Bending Testing Equipment

US$ 4,200 - 12,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

HST

Model Number:

GW-40B

Jinan Hensgrand Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name HST

Model Number GW-40B

Power Electronic

Usage Bending Testing Machine

Specifications

1.Steel Bar Bending Testing Machine

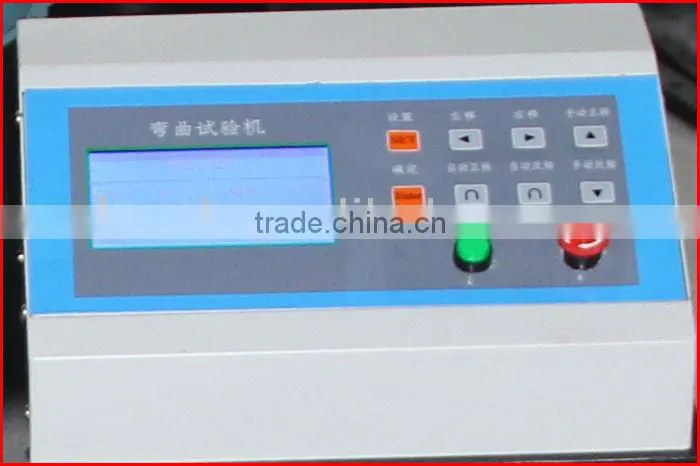

2.Digital Display

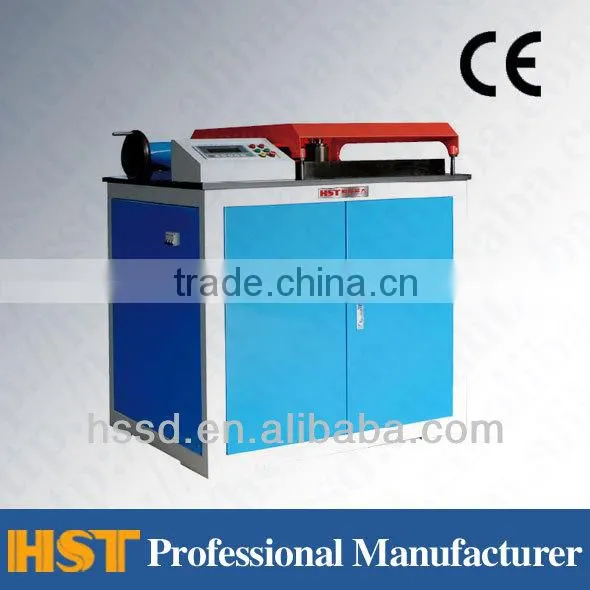

3.CE Certificate
4.Forward Bending Angle:0 To 180 Degrees At Will

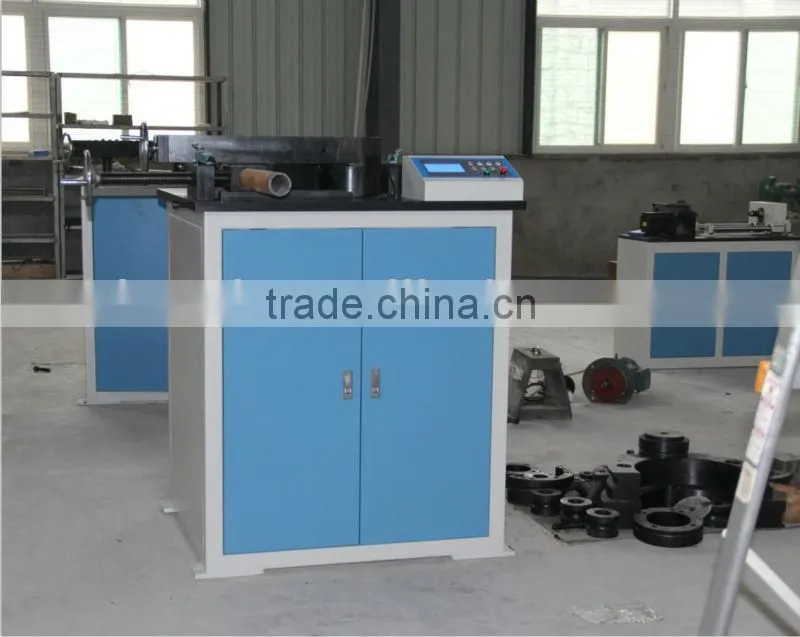

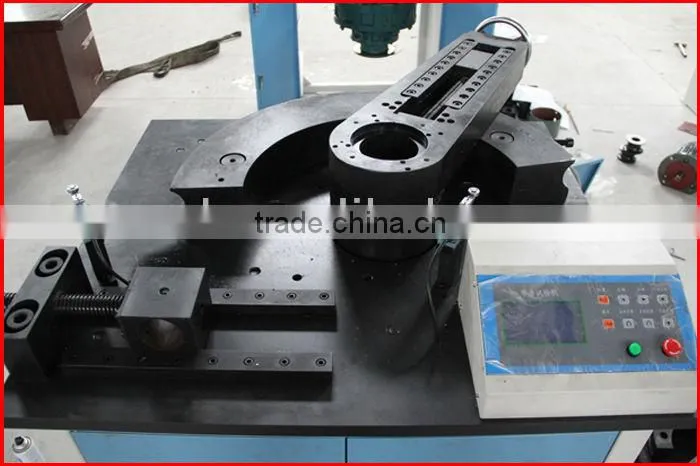

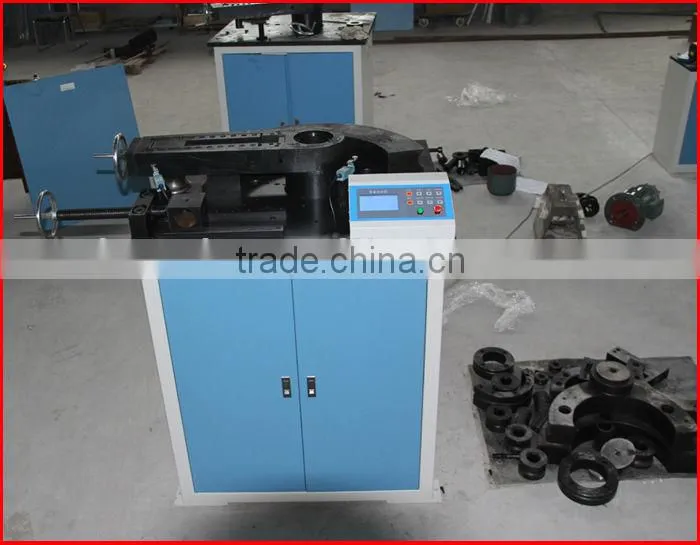

GW-40B Steel Bar Bending Testing Machine

1. Application:

This testing machine can be used to do cold bend and rebend test on plane.

The main technical parameters accord with GB1499._22007 <The second

part of Steel tube for the reinforcement of concrete: hot rolled ribbed steel

bars>, YB/T51262003 <Program of steel bars plane rebend tests.

This machine is suitable for bend test of the metallic material rods and bars,

the plate,spiral steel,and widely applies in the building materials,the metallurgy,

the Scientific research Unit,the universities,colleges and institutes,the quality

detection center and the commodity inspection department.

It is indispensable ideal testing machines to test the recurvate character and

cold bending property of screw thread steel bar.

The testing machine has many advantages,such as small size,compact structure,

easy to operate, low noise, smooth and steady running, display directly bending

angle and lubricate easily,especially reasonable design of limit position and easily

damaged parts,so it has a long using time.

2. Main Specifications:

Mode	GW-40B		GW-50B
Max Of Bending Diameter Of Steel Bar	40mm		50mm
Forward Bending Angle	0° To 180° At Will
Reverse Bending Angle	0° To 25° At Will
Rotating Speed Of Working Table	≤2.0r/min
Distance Between The Center Of Two Rolls	165mm	165mm
Diameter Of The Working Table	Φ580mm	Φ760mm
Motor Power	1.5 KW	2.2 KW
Standard Bending Accessory	HRB-335/φ6-φ40/ or other configuration option	HRB-335/φ6-φ50/ Or other configuration option
Weight(KG)	1500 KG	2500 KG
