water treatment

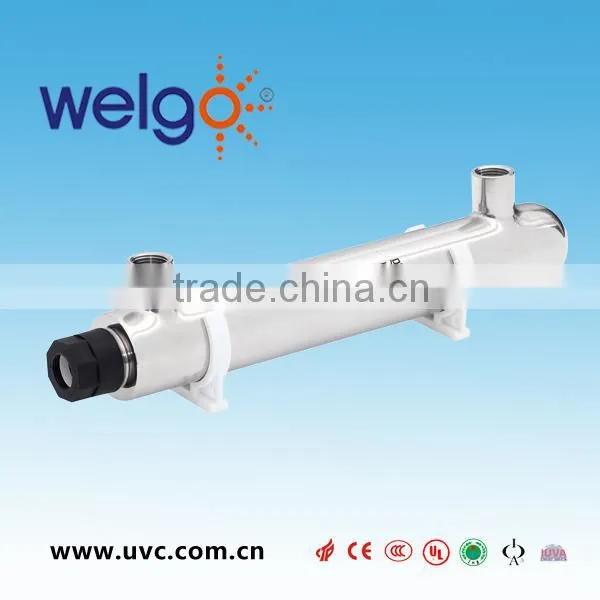

Features:
1. The single open end design for F series can be installed horizontally and vertically.
2. The ballast is displayed with lamp operation status indicating light and fault alarm .Its Power supply should be 230VAC,50HZ./CE,Rohs,UL approval as option.
3. The germicidal UV lamp with 8000-12000 hours life span is imported from USA or Europe.
4. As standard material,stainless steel SS304 is used for chamber design and 316L as for option.The chamber pressure resistance meets the standard specification of 0.7Mpa.
5. Mechanical polishing or,as the option,the anti-rust electropolishing is applied to chamber surface processing.
Applications:
1. Drinking water disinfection, tap water, pure water,
2. Food and beverage water, industrial process water.
3. Swimming pool and spa, scenery water, irrigation water.
4. Waste water disinfection
5. Cooling tower and RO system.
Techinical Parameter
| No. | Model | 30mj/cm2 Flow rate | Lamp watts | Inlet/Outlet | Reactor Size (mm) | Weight(KG) | |||
| GPM | m3/Hr | L1 | D | H | |||||
| 1 | WGUV-F06 | 6 | 1.35 | 25W | G 1/2" inner thread | 520 | 63 | 88 | 2.3KG |
Spare Parts:
UV Lamps Quartz sleeves
Ballasts
Brackets Nuts
O'rings
Packaging & Shipping
