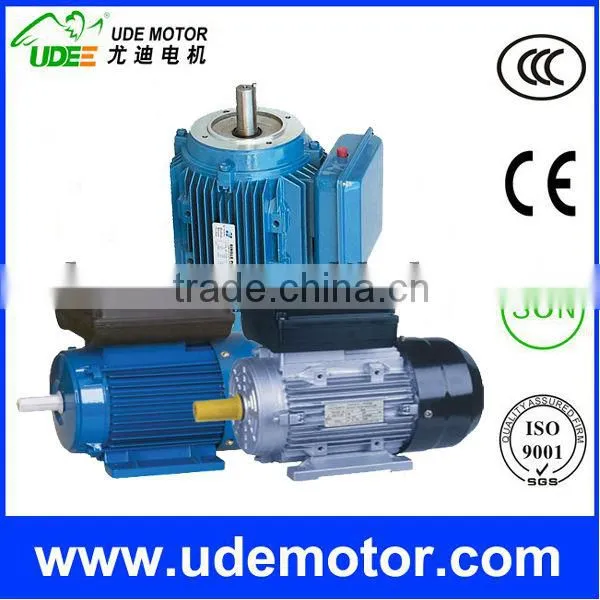

ML Series Single Phase Electrical Motor ac

ML Series Single Phase Electrical Motor ac thumbnail-1
ML Series Single Phase Electrical Motor ac photo-1
US$ 20 - 500 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
UDE
Model Number:
ML Series
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Fujian Ude Electrical Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name UDE
Model Number ML Series
Type Asynchronous Motor
Frequency 50HZ/60HZ
Output Power 0.5HP-5HP
Protect Feature Other, IP54;IP55
Phase Single-phase
Certification CCC, CE, Other, CCC, CE, ISO9001
AC Voltage Other, 220V;110V-240V
Place of Origin China
Efficiency Other, IE2;IE3

Specifications

ML Series single phase electrical motor ac
1.high efficiency, energy-saving
2.high starting torque
3.CCC.CE.ISO

ML Series single phase electrical motor ac



ML series water pump motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air compressors, pumps, fans, medical apparatus and instruments, and many other small machines.



Type Output Current (A) Speed  (r/min) EFF.   (%) Power Factor Tstart/Tn Ist/In Tmax/Tn
KW HP
ML711-2 0.37 0.5 2.60 2760 68.0 0.95 2.2 6.5 1.7
ML712-2 0.55 0.75 3.71 2760 71.0 0.95 2.2 6.5 1.7
ML801-2 0.75 1 4.92 2780 73.0 0.95 2.2 6.5 1.7
ML802-2 1.10 1.5 7.05 2780 75.0 0.95 2.2 6.5 1.7
ML90S-2 1.50 2 9.32 2800 77.0 0.95 2.2 6.5 1.7
ML90L-2 2.20 3 13.50 2800 78.0 0.95 2.2 6.5 1.7
ML100L-2 3.00 4    18.20 2820 79.0 0.95 2.0 7.0 1.7
ML112M-2 3.70 5    22.10 2820 80.0 0.95 2.0 7.0 1.7
ML711-4 0.25  1/3 1.90 1360 63.0 0.95 2.2 6.5 1.7
ML712-4 0.37 1 2.64 1360 67.0 0.95 2.2 6.5 1.7
ML801-4 0.55 0.75 3.76 1380 70.0 0.95 2.2 6.5 1.7
ML802-4 0.75 1 4.98 1380 72.0 0.95 2.2 6.5 1.7
ML90S-4 1.10 1.5 7.11 1400 74.0 0.95 2.2 6.5 1.7
ML90L-4 1.50 2 9.44 1400 76.0 0.95 2.2 6.5 1.7
ML100L1-4 2.20 3 13.70 1410 77.0 0.95 2.0 7.0 1.7
ML100L2-4 3.00 4 18.40 1420 78.0 0.95 2.0 7.0 1.7
ML112M-4 3.70 5 22.40 1420 79.0 0.95 2.0 7.0 1.7



ML Series single phase electrical motor acML Series single phase electrical motor acML Series single phase electrical motor acML Series single phase electrical motor acML Series single phase electrical motor ac

ML Series single phase electrical motor ac
