Product Details
Brand Name: | UDE | Model Number: | MY series | Type: | Asynchronous Motor |
Frequency: | 50HZ/60HZ | Output Power: | 0.12HP~3HP | Protect Feature: | Other, IP54;IP55 |
Phase: | Single-phase | Certification: | CCC, CE | AC Voltage: | Other, 220V;100V~240V |
Place of Origin: | China | Efficiency: | Other, IE1;IE2;IE3 |
Product Description
Specifications
MY series SINGLE PHASE electrical motor ac1.good performance
2.safe and reliable operation
3.low noise, sight vibration

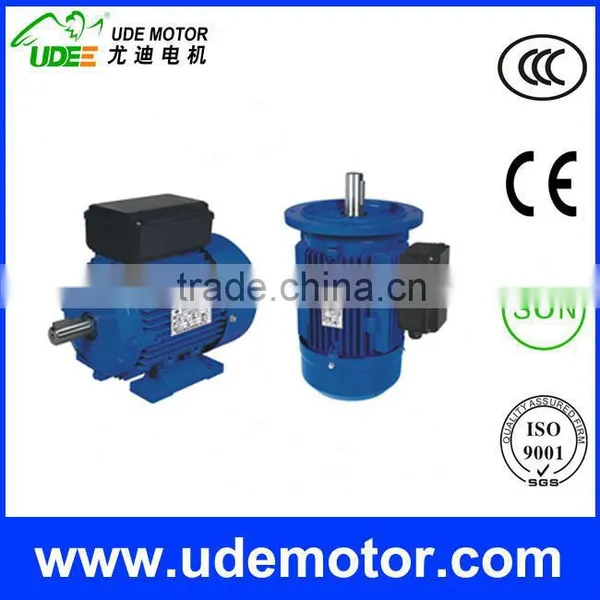

MY series SINGLE PHASE electrical motor ac
INTRODUCE
MY Series Aluminum housing single-phase capacitor run asynchronous motors, with the international latest design, are made of quality materials and meet the relative standards of IEC. MY series motors have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, low noise, sight vibration, light weight and simple construction.This series motors can be used on air compressor, pumps, refrigeration, medical apparatus and instruments, and other machines that need full-load starting.
Ambient temperature:-15°C~40°C
Altitude: not exceed 1000m
Rated voltage: 220V; 110V~240V
Rated frequency: 50HZ/60HZ
Duty:S1(continous)
Insulation class: B/F/H
Protection class: IP54/IP55
Cooling method: ICO141
Type | Output | Current (A) | Speed (r/min) | EFF. (%) | Power Factor | Tstart/Tn | Ist/In | Tmax/Tn | |
KW | HP | ||||||||
MY561-2 | 0.09 | 0.12 | 0.77 | 2730 | 58.0 | 0.92 | 0.55 | 4.5 | 1.7 |
MY562-2 | 0.12 | 0.16 | 0.96 | 2730 | 62.0 | 0.92 | 0.55 | 4.5 | 1.7 |
MY631-2 | 0.18 | 0.24 | 1.35 | 2740 | 66.0 | 0.92 | 0.50 | 4.5 | 1.7 |
MY632-2 | 0.25 | 0.33 | 1.84 | 2740 | 67.0 | 0.92 | 0.50 | 4.5 | 1.7 |
MY711-2 | 0.37 | 0.50 | 2.65 | 2750 | 69.0 | 0.92 | 0.45 | 4.5 | 1.7 |
MY712-2 | 0.55 | 0.75 | 3.83 | 2760 | 71.0 | 0.92 | 0.45 | 4.5 | 1.7 |
MY801-2 | 0.75 | 1.00 | 5.08 | 2780 | 73.0 | 0.92 | 0.40 | 4.5 | 1.7 |
MY802-2 | 1.10 | 1.50 | 7.02 | 2790 | 75.0 | 0.95 | 0.40 | 4.5 | 1.7 |
MY90S-2 | 1.50 | 2.00 | 9.44 | 2800 | 76.0 | 0.95 | 0.35 | 5.0 | 1.7 |
MY90L-2 | 2.20 | 3.00 | 13.67 | 2800 | 77.0 | 0.95 | 0.30 | 5.0 | 1.7 |
MY561-4 | 2.20 | 3.00 | 13.70 | 2800 | 77.0 | 0.95 | 0.35 | 5.0 | 1.7 |
MY562-4 | 0.06 | 0.08 | 0.57 | 1330 | 53.0 | 0.90 | 0.55 | 4.5 | 1.7 |
MY631-4 | 0.12 | 0.16 | 1.01 | 1350 | 60.0 | 0.90 | 0.50 | 4.5 | 1.7 |
MY632-4 | 0.18 | 0.24 | 1.47 | 1360 | 62.0 | 0.90 | 0.50 | 4.5 | 1.7 |
MY711-4 | 0.25 | 0.33 | 1.93 | 1370 | 64.0 | 0.92 | 0.45 | 4.5 | 1.7 |
MY712-4 | 0.37 | 0.50 | 2.77 | 1370 | 66.0 | 0.92 | 0.45 | 4.5 | 1.7 |
MY801-4 | 0.55 | 0.75 | 4.00 | 1380 | 68.0 | 0.92 | 0.40 | 4.5 | 1.7 |
MY802-4 | 0.75 | 1.00 | 5.29 | 1380 | 70.0 | 0.92 | 0.40 | 4.5 | 1.7 |
MY90S-4 | 1.10 | 1.50 | 7.21 | 1390 | 73.0 | 0.95 | 0.35 | 5.0 | 1.7 |
MY90L-4 | 1.50 | 2.00 | 9.57 | 1400 | 75.0 | 0.95 | 0.35 | 5.0 | 1.7 |
