LM-PSC01 3G/HD/SD SDI to Composite CVBS/AV Media Converter Supports PAL/NTSC 1080p
Model:LM-PSC01
Color:Black
Size:141x102x30mm
Keyword:SDI to CVBS/AV Converter

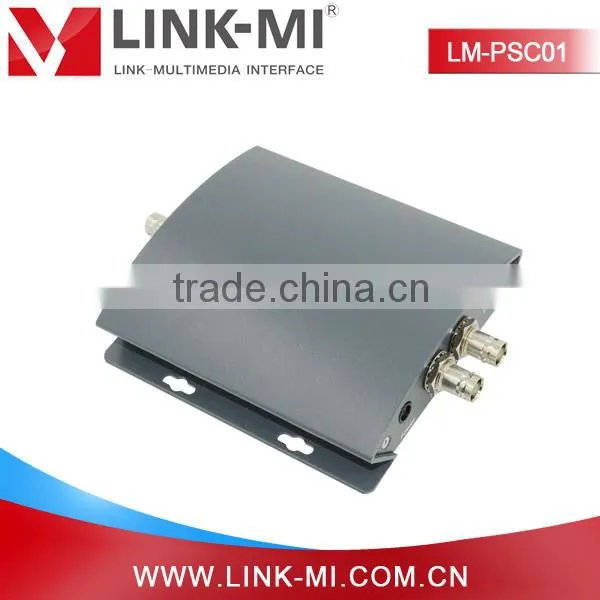

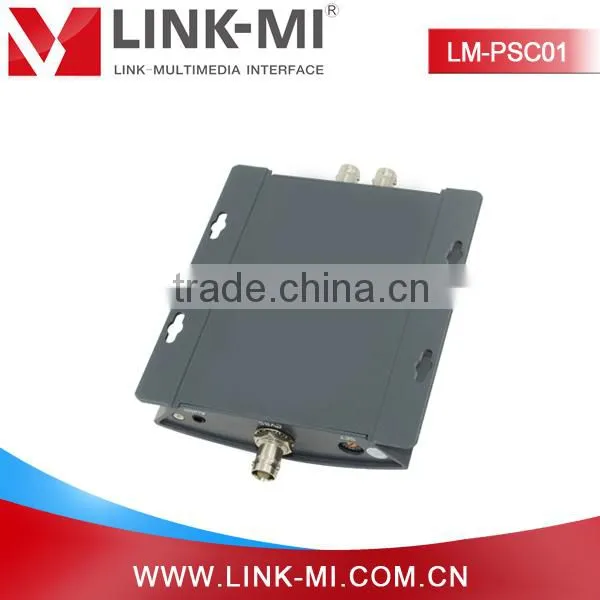

LM-PSC01 SDI to CVBS/AV Converter
LM-PSC01 SDI to CVBS/AV Converter is apply to 3G/HD/SD SDI Signal Conversion Converter, integrates FRCS ( Frames Rate Conversion System), SDI Receivers and CVBS Encoder, can convert the 3G/HD/SD SDI signal to composite Video CVBS. At the same time, LM-PSC01 SDI to CVBS Signal Converter supports de-embedded audio from 3G/HD/SD SDI signal, output to the analog ports.
[Specifications]
Name |
SDI to CVBS Video Converter |
|
Model No. |
LM-PSC01 |
|
SDI Input / Output |
Signal |
3G/HD/SD SDI |
Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps-2.97Gbps |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
Analog Audio Output |
Output Signal |
Analog Stereo Audio |
Impedance |
16Ω |
|
Connector |
Earphones |
|
CVBS Output |
Output Signal |
Analog CVBS Signal |
Connector |
BNC ( IEC169-8 Standard ) |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
Power |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|
Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH |
|
[Commodity Description]
Features:
1. Supports 3G/HD/SD SDI Signal Input
2. Supports 3G/HD/SD SDI Signal Looping Output
3. Supports 1080p/1080i/720p/480i/576i Video format
4. Supports 1080PSF/ 720P 30/25/24Hz
5. SD CVBS output ( Supports PAL/NTSC )
6. Supports Down-Conversion function
7. Down-Conversion have three mode ( Left/Right Cut, T/B Black, Point to Point Output ) can be choosed
8.Adaptively SDI Input signal
9.De-embedded Audio from SDI Input signal
10 Supports Analog stereo audio output
11. SDI Looping out and synchronous CVBS output
12. Color Bar output
13. Can be costumed

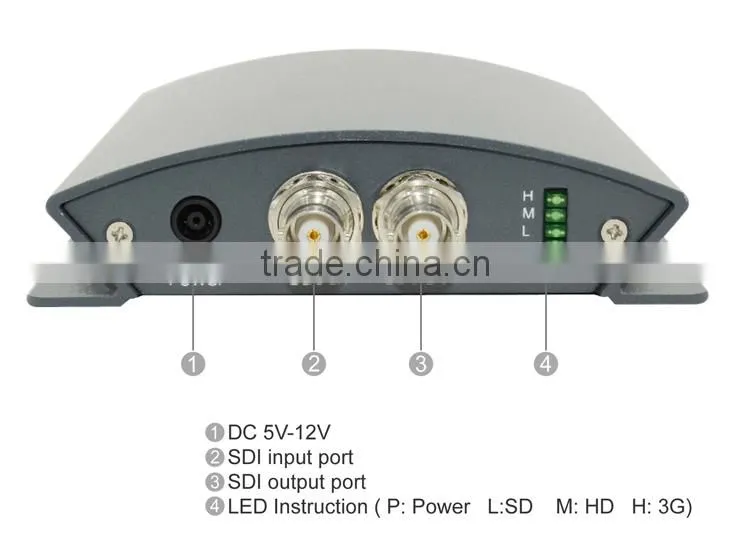

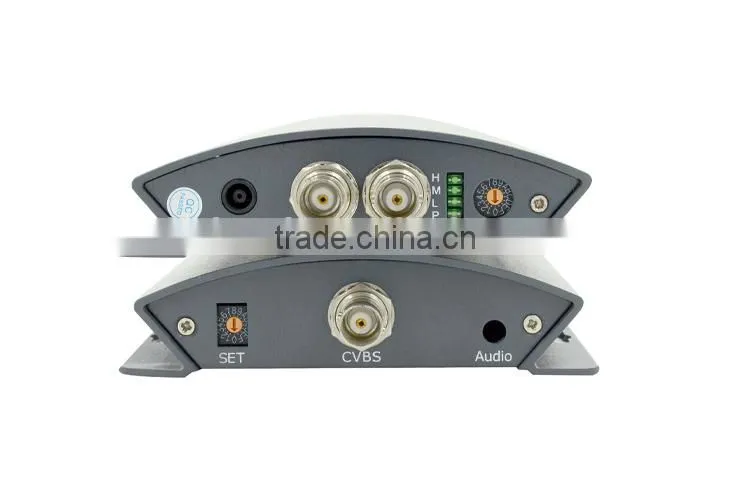

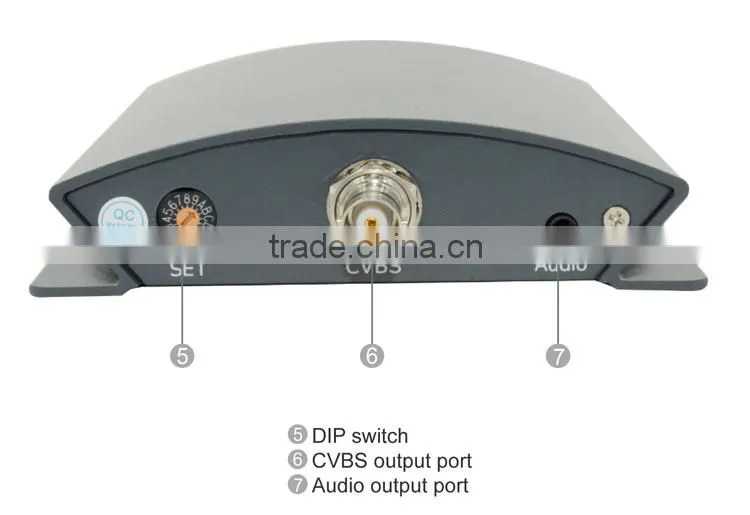

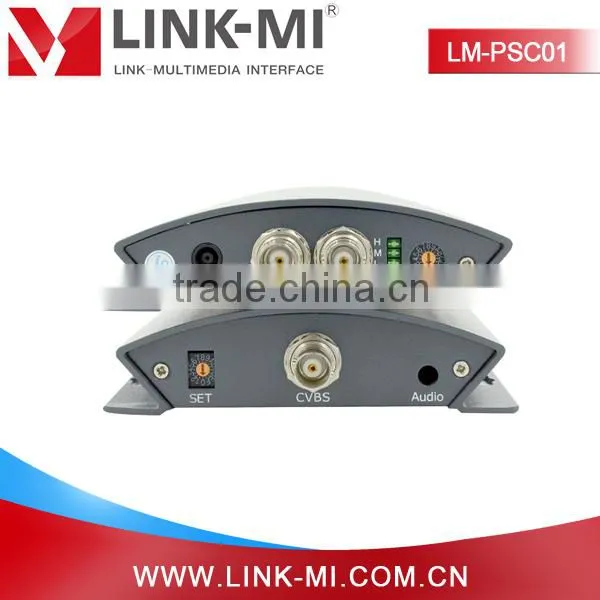

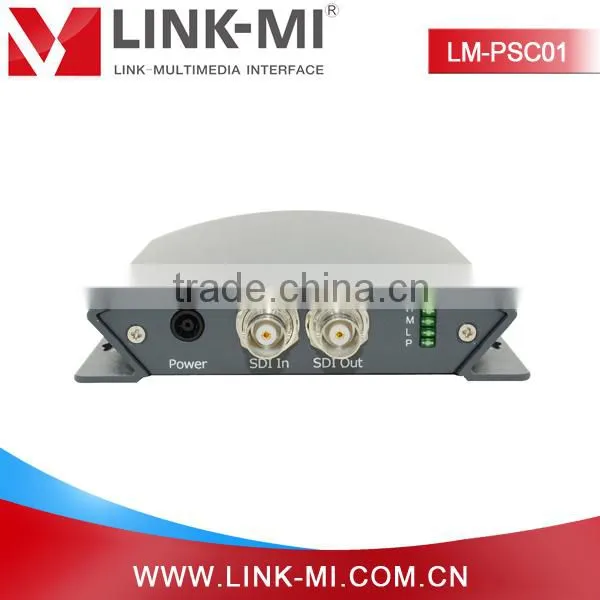

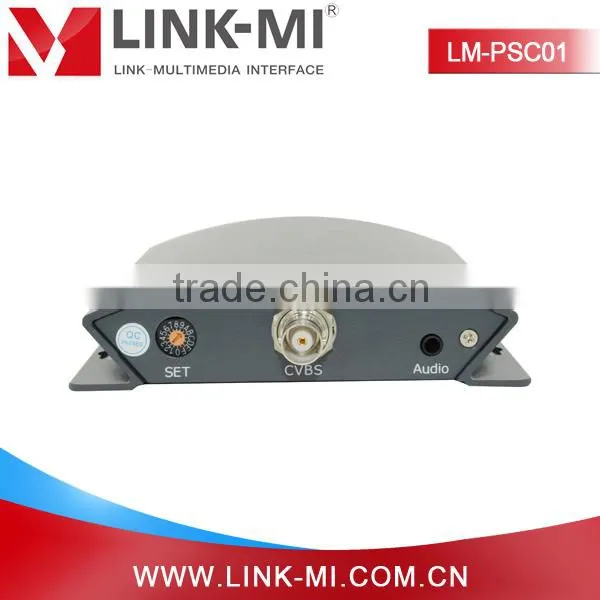

Panel Description:
[DIP Switch Setting]
Coding |
Output Format |
SDI Output |
0 |
576i@50Hz 1:1 |
Loop |
1 |
576i@50Hz L/R Cut |
Loop |
2 |
576i@50Hz T/B Black |
Loop |
3 |
576i@50Hz Color Bar |
Loop |
4 |
480i@50Hz 1:1 |
Loop |
5 |
480i@50Hz L/R Cut |
Loop |
6 |
480i@50Hz T/B Black |
Loop |
7 |
480i@50Hz Color Bar |
Loop |
8 |
576i@50Hz 1:1 |
FRC |
9 |
576i@50Hz L/R Cut |
FRC |
A |
576i@50Hz T/B Black |
FRC |
B |
576i@50Hz Color Bar |
FRC |
C |
480i@50Hz 1:1 |
FRC |
D |
480i@50Hz L/R Cut |
FRC |
E |
480i@50Hz T/B Black |
FRC |
F |
480i@50Hz Color Bar |
FRC |
Note:
L/R Left/Right
T/B Top/Bottom
FRC Frame Rate Convert
[Product Demonstration]
[Installation]

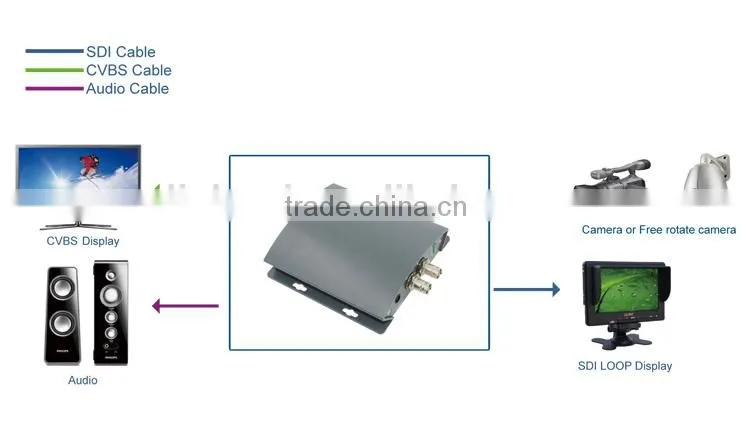

Connection Diagram:
[Packing Contents]
1) Main Unit. SDI to CVBS Video Converter
2) DC 5V Power Supply
3) 1pcs Manual
Contact Person: Yephine
My Skype:linkmi55
Send Inquiry to This Supplier
