LINK-MI LM-PYS01 YPbPr And Analog Audio Input HD/3G SDI Output Analog to Digital Video Converter
Model No.: LM-PYS01
Product Type: Analog to Digital Video Converter
Keyword: Analog to Digital Video Converter
Analog to Digital Video Converter
Introduction
LM-PYS01 YPbPr And Analog Audio Input HD/3G SDI Output Analog to Digital Video Converter , support YPbPr signal input and 3G / HD / SD SDI signal output, integrated YPbPr receivers and 3G / HD / SD-SDI encoder, convert YPbPr signal to 3G / HD / SD-SDI signals .
Simultaneously, LM-PYS01 Analog to Digital Video Converter supports external analog stereo audio signal embedded in the SDI signal. In addition, LM-PYS01 Analog to Digital Video Converter also support the "frequency Conversion" function, YPbPr signals can be input "convert" to SDI signal output fixed resolution and up-convert SD 480I / 576I to HD SDI, also can down-convert HD 1080P / 720P / 1080I to SD SDI output, optional trim or extra time "down converted" black edges. Resolution through digital coding switch to select, easy to operate.
Features
1. Standard YPbPr signal input
2. Optional 3G / HD / SD SDI signal output
3. Optional 1080P / 1080I / 720P / 480I / 576I common resolution
4. Optional 1080PSF / 720P 30/25/24 special resolution
5. Optional "down converted" trim or add black borders
6. YPbPr input signal adaptive
7. Support external analog stereo audio signals embedded in SDI signal
8. SDI output can be set as "frequency Conversion"
9. SDI output can set as "fixed frequency"
10. Special features can be customized
Specification
Name |
Analog to Digital Video Converter |
|
Model No. |
LM-PYS01 |
|
YPbPr Input |
Signal |
YPbPr Standard |
Connector |
BNC |
|
SMPTE |
27M |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
Analog Audio Iutput |
Output Signal |
Analog Stereo Audio |
Impedance |
16Ω |
|
Connector |
Earphones |
|
SDI Output |
Output Signal |
SDI Signal |
Connector |
BNC (IEC169-8 Standard) |
|
Signal Amplitude |
800mv ±10% |
|
Impedance |
75Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
Power |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|
Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH |
|

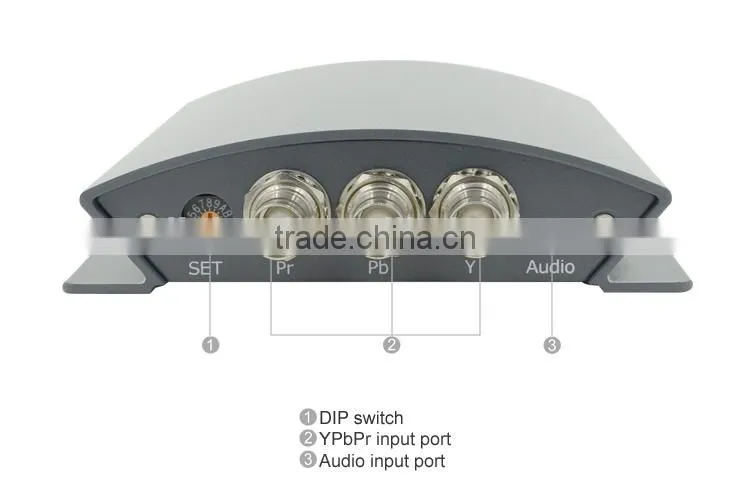

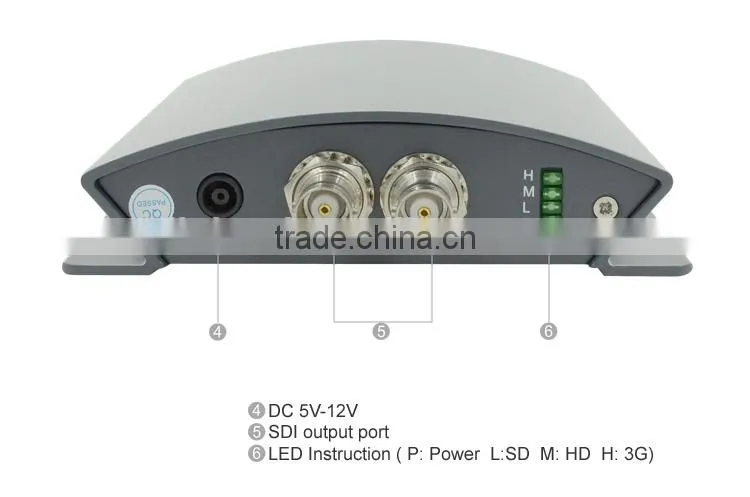

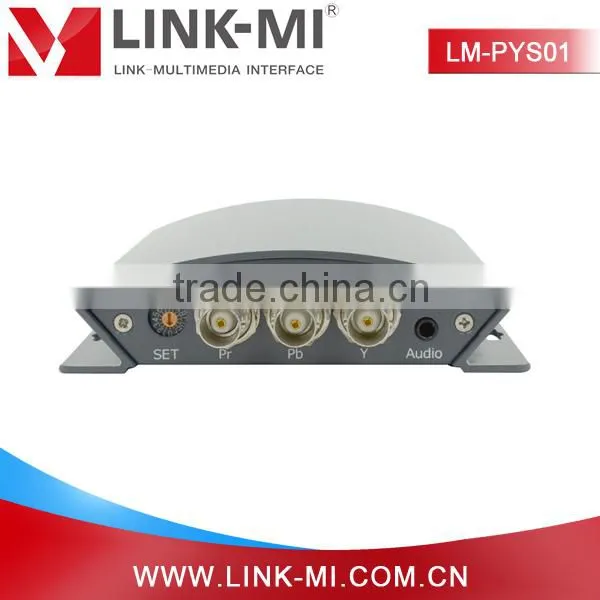

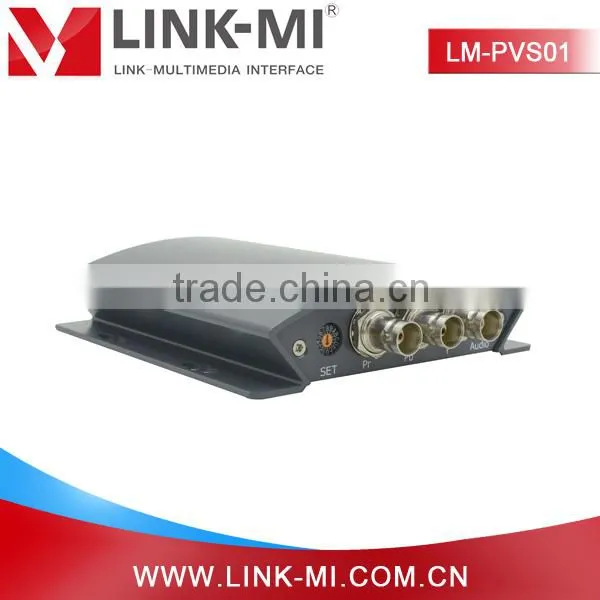

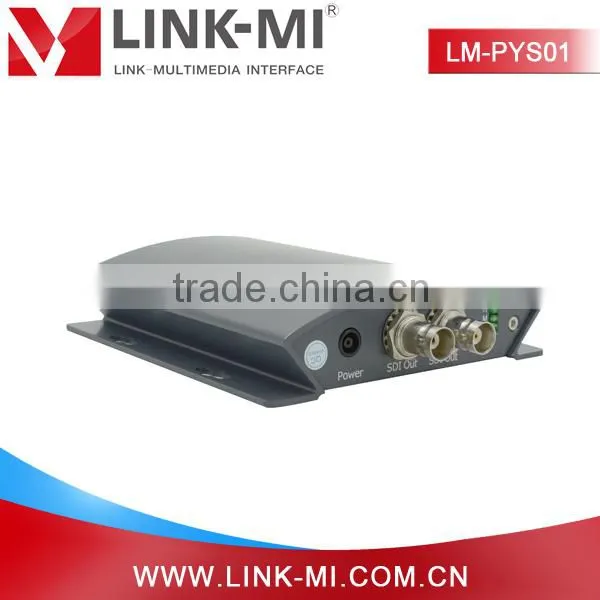

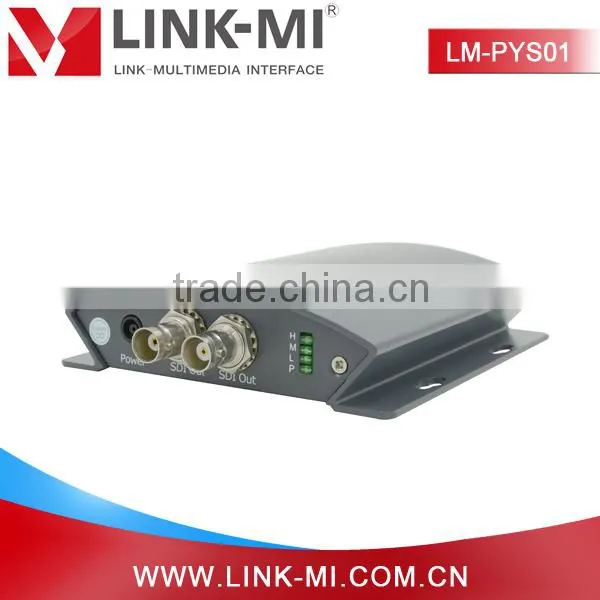

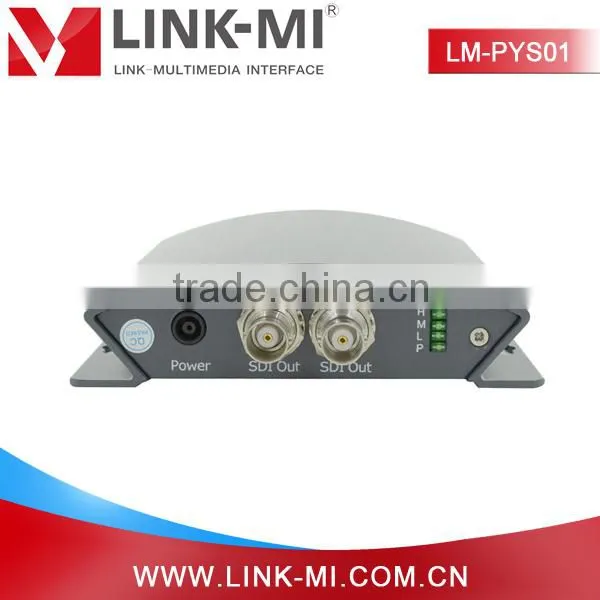

Panel Description
DIP Switch Setting
Coding |
Resolution |
0 |
1080i @50HZ |
1 |
1080P @60HZ |
2 |
1080P @50HZ |
3 |
1080i @60HZ |
4 |
1080P @30HZ |
5 |
1080Pi @25HZ |
6 |
1080P @24HZ |
7 |
720P @60HZ |
8 |
720P @50HZ |
9 |
720P @30HZ |
A |
720P @25HZ |
B |
576i @50HZ |
C |
480i @60HZ |
D |
576i @50HZ Cut |
E |
576i @50HZ Black |
F |
Reserved |

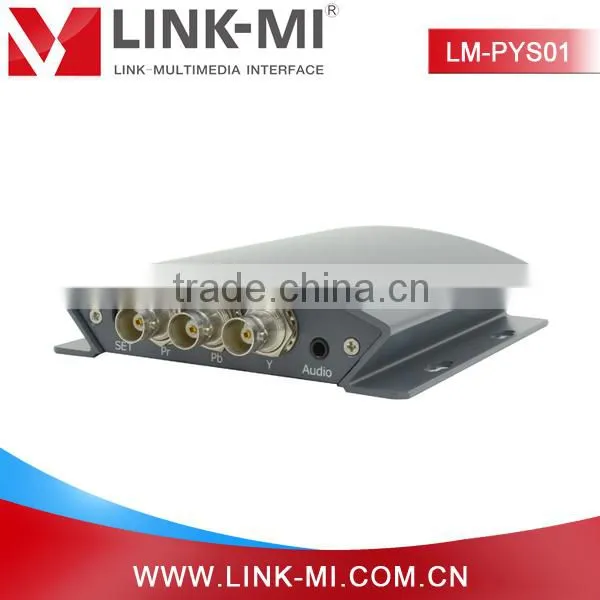

Product Overviews
Connection and Operating
1. Connect the cable of all the ports correctly.
2. Adjust the device on a suitable resolution, connect the power.

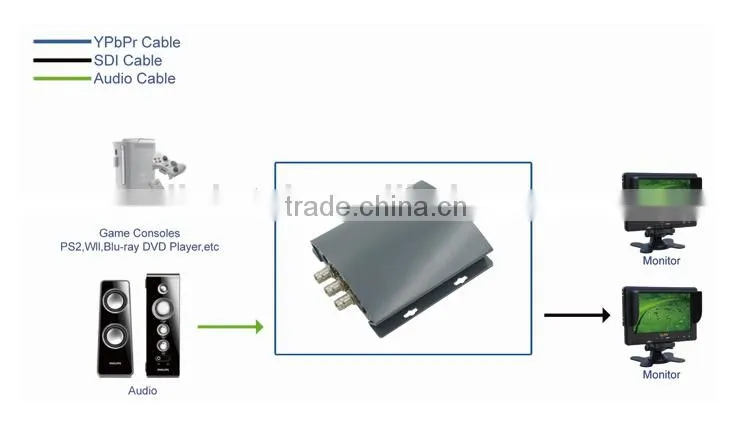

Connection Diagram
Packing Contents
1. Main Unit. 1pcs Analog to Digital Video Converter
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual
