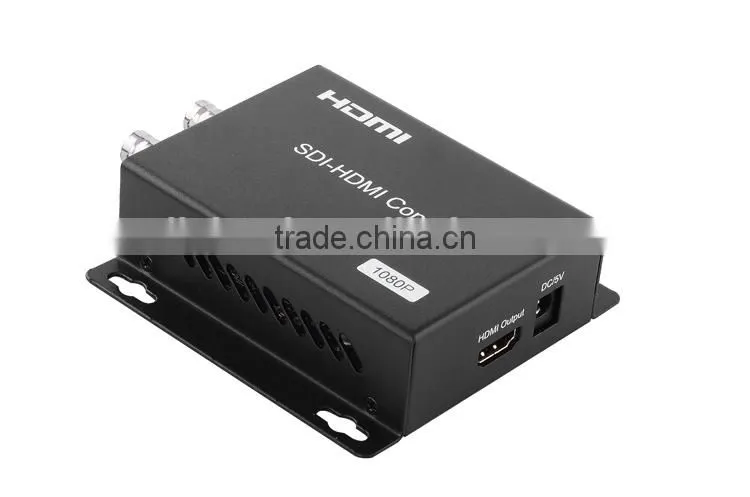

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter photo-1

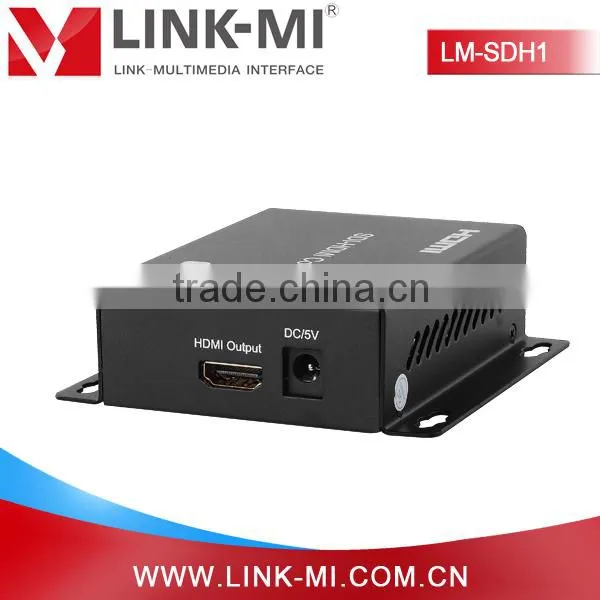

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter photo-2

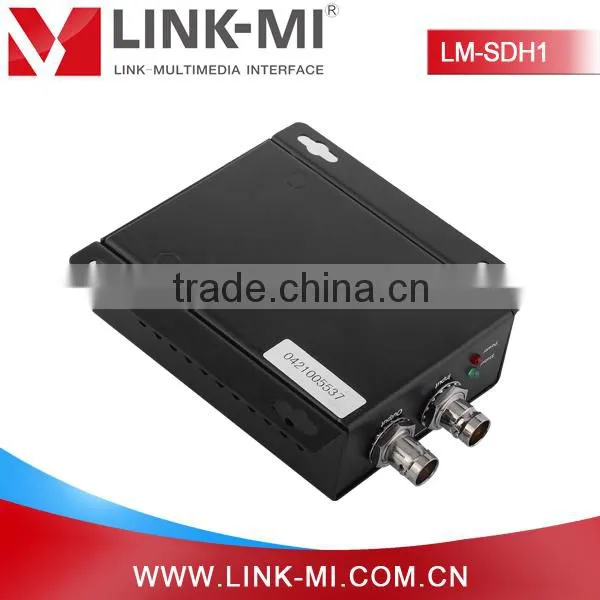

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter photo-3

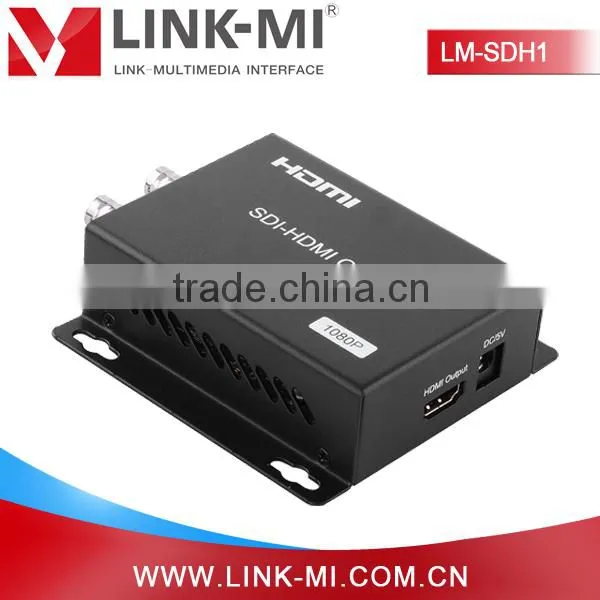

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter photo-4

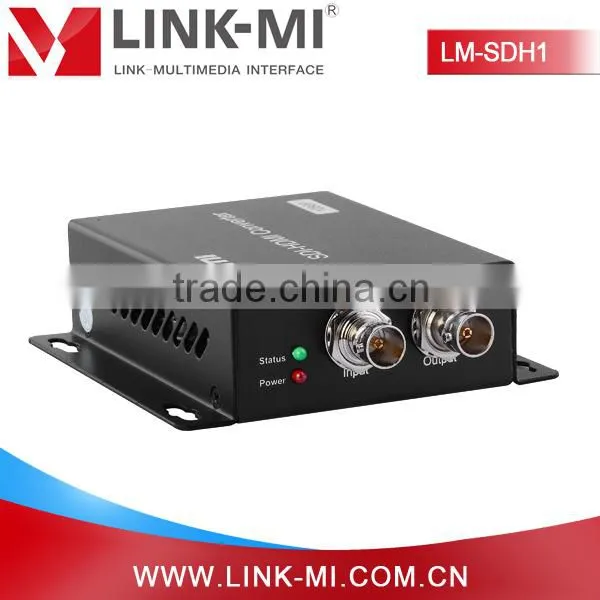

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter photo-5
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LINK-MI/OEM
Model Number:
LM-SDH1
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name LINK-MI/OEM
Model Number LM-SDH1
Place of Origin Guangdong, China
Product Description

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter        LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter

Model:LM-SDH1

Color:Black

Size:95x95x29mm

Keyword:3G SDI to HDMI Video Convertor





LM-SDH1 3G SDI to HDMI Video Convertor

LINK-MI LM-SDH1 Video Converter SD/HD SDI to HDMI is a high quality product, iron material, convert SDI/HD SDI Signal to HDMI Signal, have a Looping SDI/HD SDI Output, resolutions up to 1080p @ 60Hz, with HDCP Compliant, DC 5V 1A Power supply.





[Specifications]

Operating Temperature Range

-5 to +35 Degree Celsius (+23 to +95 Degree Fahrenheit )

Operating Humidity Range

5 to 90%RH (No Condensation)

Input Formats

1080i (30/29.97/25Hz,)

1080p(60/59.94/50/30/29.97/25/24/23.976)

Video Input

3G-SDI/HD-SDI/SDI

Outputs

HDMI

1 Looping SDI/HD-SDI output of the SDI input (75 ohm, unterminated)

HDMI

Standard Type A connector

HDCP

Compliant HDCP .

Power consumption

2.5watts(Maximum)

Dimension (L×W×H)

95x95x29mm

Net Weight

245g





[Commodity Description]

Features:

1. SDI/HD-SDI to HDMI
2. Equalized Looping SDI/HD-SDI output
3. Support 1080p/25Hz,1080p/29.97Hz,1080p/30Hz,1080P/60Hz
4. Compliant HDCP .
5. Uses 5V power

6. Video Input :HD-SDI/SDI,SMPTE-259/274/292/296

7. Size:L95*W95*H29mm

Panel Description:

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter





[Product Demonstration]

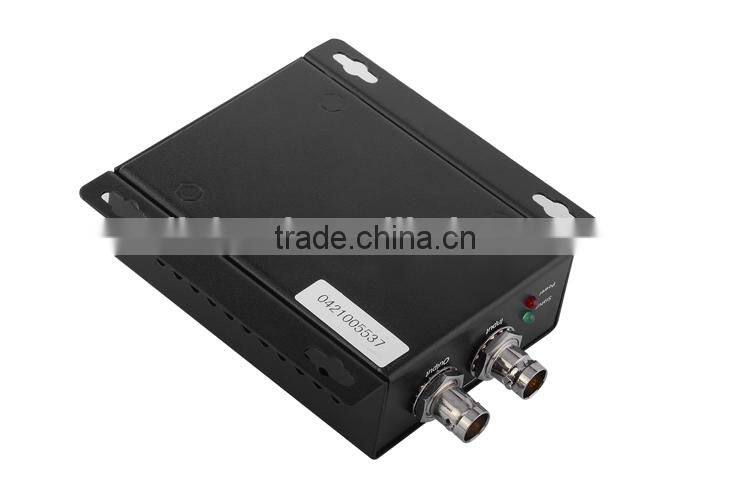

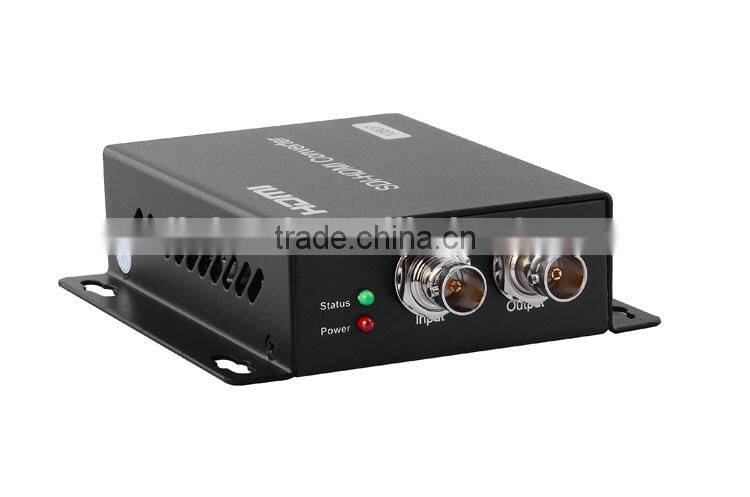

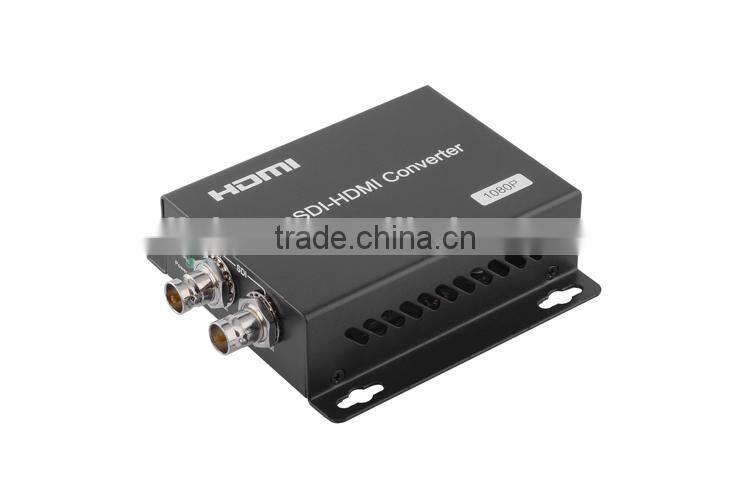

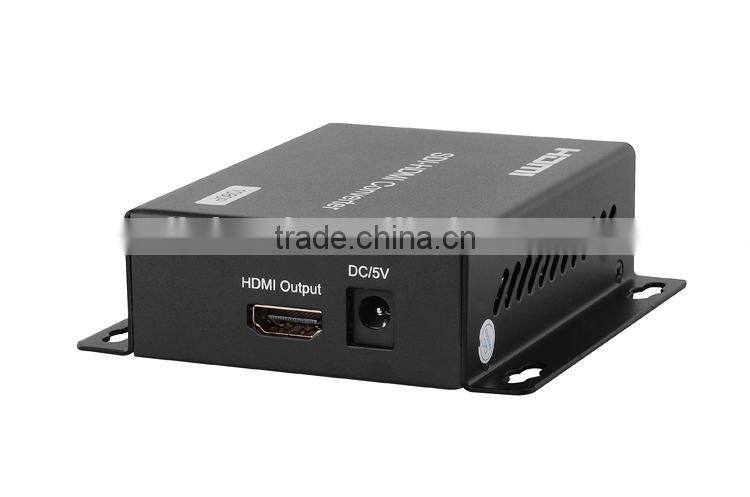

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video ConverterLINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video ConverterLINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video ConverterLINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video ConverterLINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter





[Installation]

Connection and Operation:

1) Ensure the Converter is disconnected from power.
2) Connect source to the SDI input and sink to HDMI output and SDI output .
3) Connect 5VDC power to the converter.

Attention: Insert/Extract cable gently.

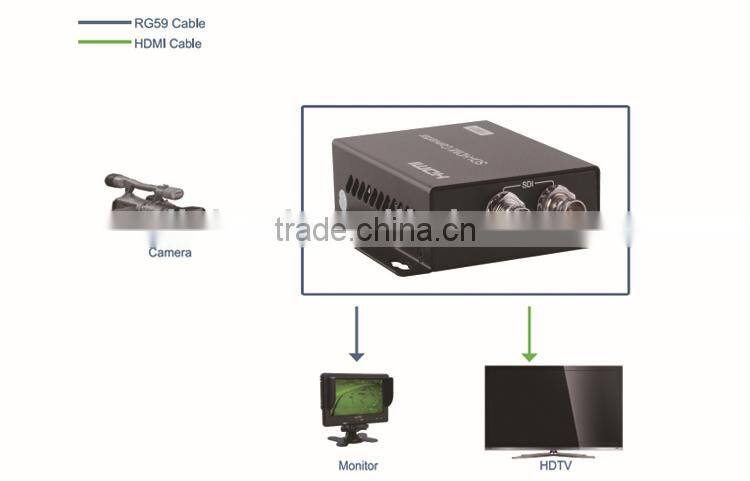

Connection Diagram:
LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter

Packaging & Shipping

[Packing Contents]

1) Main Unit. SDI-HDMI converter
2) DC5V 1A Power Supply.
3) Operating Instructions

LINK-MI LM-SDH1 Using for HD SDI Camera HD-SDI/3G-SDI/SD-SDI to HDMI Video Converter
