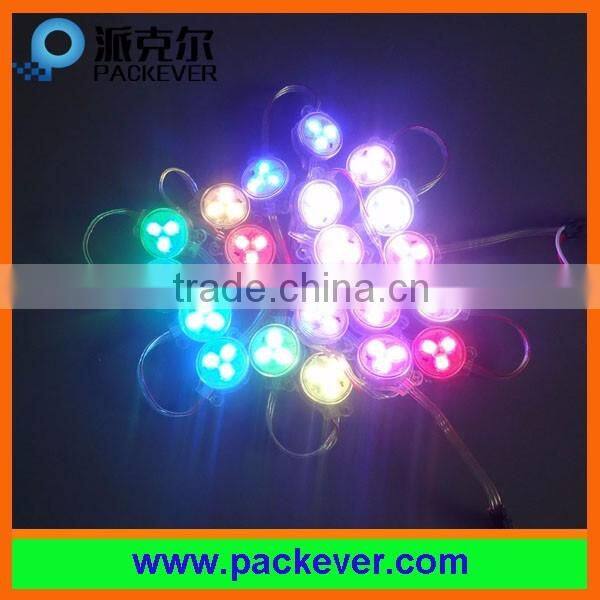

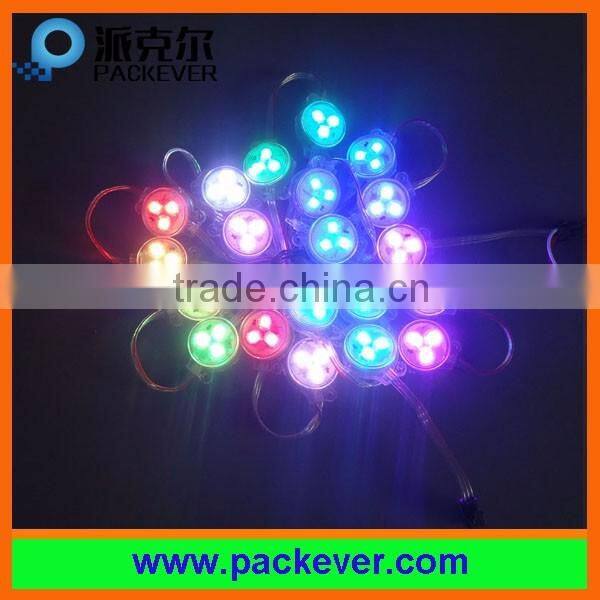

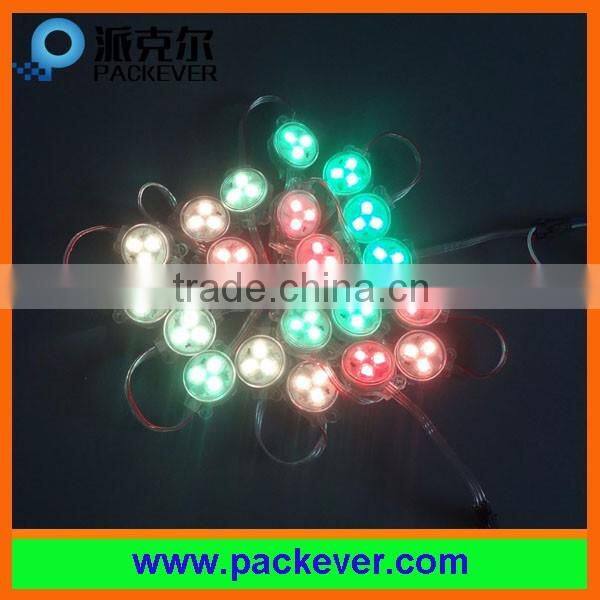

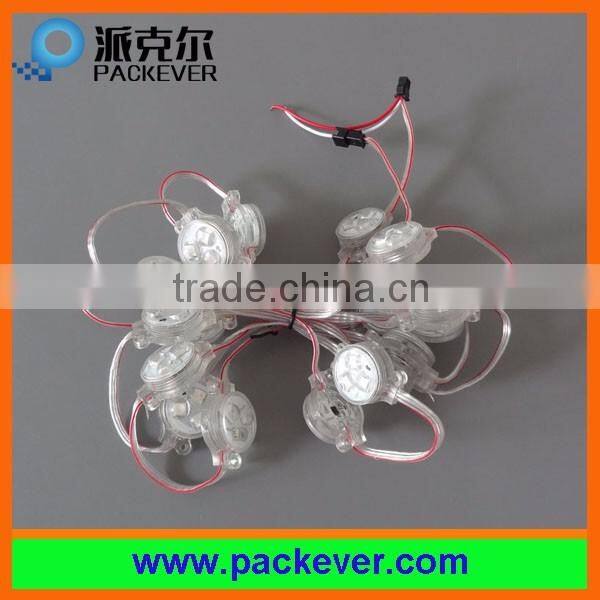

DC12V 30mm UCS1903, WS2811, SM16703 SMD5050 RGB LED pixel module
- 10000 Piece / Pieces per Month
- Shenzhen/Hong Kong
- T/T Credit Card PayPal
Product Details
| Emitting Color: | Tri-Color(Red-Blue-Green) | Luminous Intensity: | 2000-2500MCD per LED | Luminous Flux(lm): | 6-7m per LED |
| Optical Attenuation(%): | 3% | Power: | Other, 0.72w/pcs | Power Dissipation: | 0.72W |
| Color Rendering Index(Ra): | 80% | Color Temperature: | RGB | Operating Temperature(℃): | -30, 60 |
| Storage Temperature(℃): | -10, 40 | Place of Origin: | Guangdong, China | Brand Name: | PACKEVER |
| Certification: | CE |
Product Description
DC12V 30mm UCS1903, WS2811, SM16703 SMD5050 RGB LED pixel module
Product Name | DC12V 30mm UCS1903, WS2811, SM16703 SMD5050 RGB LED pixel module |
LED type | SMD5050 RGB |
LED quantity | 3 pieces |
Work Voltage | DC12V |
IC Type | ws2811/ucs1903/sm16703/lpd6803/ws2801/dmx512 |
Power | 0.72W/pcs |
PCB Color | white |
Dimension | D30mm |
Waterproof | IP67 |
Work Temperature | -30-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |
DC12V 30mm UCS1903, WS2811, SM16703 SMD5050 RGB LED pixel module Advantage:
1. Addressable, full color, each one can be controlled to show customized color
2. Can be connected by connector, easy to install
3. Rainproof, outdoor use
4. Beautiful shape
5. Use epistar chip LED to make sure long term use (if need other brand, please contact us)6. RGB and single color both available

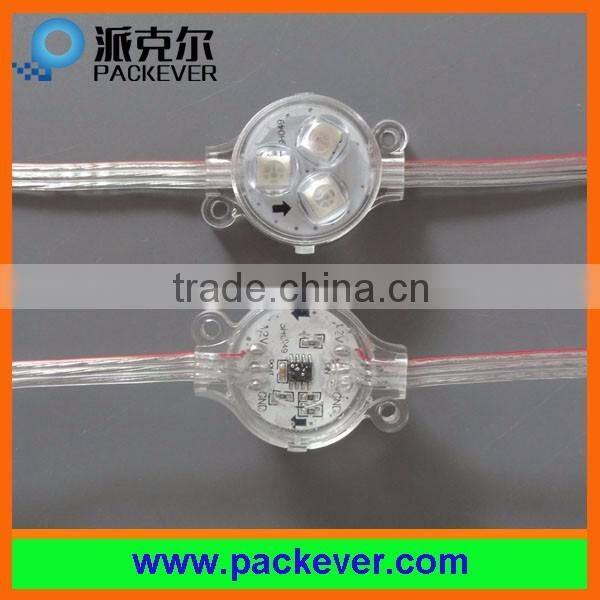

DC12V 30mm UCS1903, WS2811, SM16703 SMD5050 RGB LED pixel module Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
CLK: connect to controller CLK (for ws2801, lpd6803 IC)
GND: connect to power supply GND & controller GND
We have more than 50 different items, if need more information, email or call us now! Accept customized design!
More 30mm size plastic housing pixel modules:
Automatic glue injection machines:
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
