Help CenterNarrow Aisle Warehouse Pallet Rack
Related Products
Specifications
narrow aisle pallet rack:1.offering high density
2.direct access to all pallets
3.make full use of floor area and roof heig

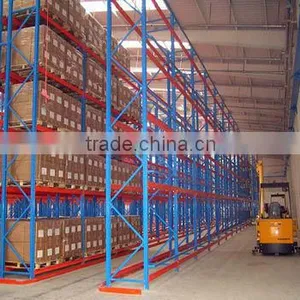

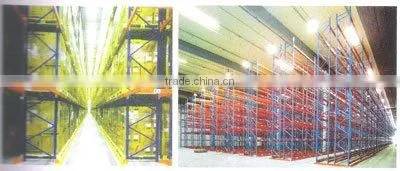

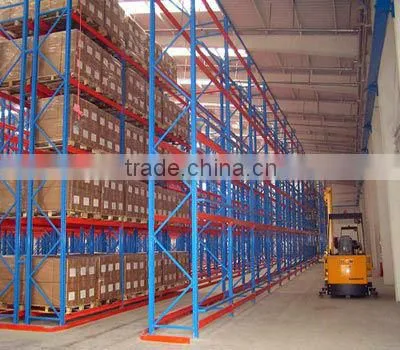

high density Narrow Aisle pallet Rack
1.Narrow aisle pallet rack makes optimum use of floor area and roof height by providing high density storage
2.It still allows individual access to all pallets.
3.The system is served by specially designed forklift machines with the mast or fork head rotating to left or right as required.
4.Operator cabins may be elevating or static. Aisles are only marginally wider thean the handing equipment.
All kinds of specifications are available :
| specification of racks | length | 1200/1900/2300/2700/3300/3600(mm) | |
| depth | 800-1200(mm) | ||
| height | 2000-15000(mm) | ||
| Upright | 90*70 | ||
| Beam | 74*44&88*44&106*44&&120*44&&140*44 | ||
| thickness | 1.8mm-2.5mm | ||
| capacity/layer | 1-4tons | ||
| notes | 1. All racking shall be fixed onto the ground by means of Expansion bolts | ||
| 2. Each beam is secured by 2 safety pins | |||
| 3. There are link bars between two back-to-back rack rows. | |||
| 4. Protector is recommended to mount in the junction of over two directions | |||
advantages include:
The principal advantage of VNA racking is the combination of relatively high density with 100% individual selectivity. Throughput speed can be more rapid than with conventional trucks and layouts. VNA trucks can operate at greater heights than conventional trucks up to 14m
Special requirements:
1) Special VNA forklift truck and guidance systems
2) Very flat engineered floor surface
3) Semi automatic pallet positioning controls for accurate high level
placement and retrieval
4) Obviously it must have excellent rigidity and close engineering
tolerances
5) Beams at all storage levels unless low profile rails or wire guidance
system adopted
