Specifications
Narrow aisle storage racking:1.makes optimum use of floor area and roof height
2. providing high density storag

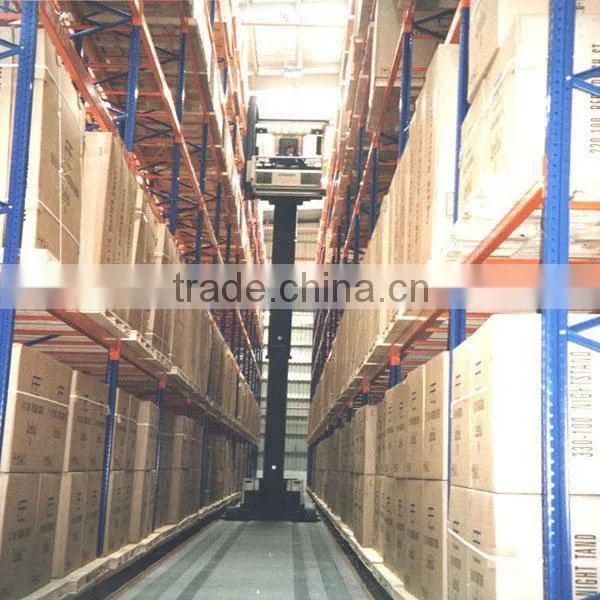

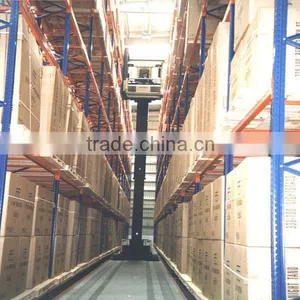

Narrow Aisle storage racking
makes optimum use of floor area and roof height by providing high density storage which still allows individual access to all pallets. The system is served by specially designed forklift machines with the mast or fork head rotating to left or right as required. Operator cabins may be elevating or static. Aisles are only marginally wider thean the handing equipment.
Advantages include:
The principal advantage of VNA racking is the combination of relatively high density with 100% individual selectivity. Throughput speed can be more rapid than with conventional trucks and layouts. VNA trucks can operate at greater heights than conventional trucks up to 14m.
Special requirements:
1) Special VNA forklift truck and guidance systems
2) Very flat engineered floor surface
3) Semi automatic pallet positioning controls for accurate high level
placement and retrieval
4) Obviously it must have excellent rigidity and close engineering
tolerances
5) Beams at all storage levels unless low profile rails or wire guidance
system adopted
