VNA Narrow Aisle warehouse storage Rack
Company Name |
Shanghai Everunion Logistics Equipment Co.,Ltd |
Location |
Factory is in Kunshan city,convenient transport |
Main products |
Standard pallet racking and other type racks |
Main markets |
Australasia,Europe,Asia,Central America,South America,North Africa ...(more than 40 Countries) |
Annual sales amount |
25 millions US dollar |
Quality |
ISO9001:2008 |
Safety standard |
AS4084 and FEM 10.202 |
Company Concept |
Personality is Product,Standard is Quality |
Company Concept:Personality is Product;Standard is Quality
1.Feature |
|
2. Load Capacity & Dimension: |
|
3. Main Parts Specs: |
|
4. Material: |
High-quality Q235B steel from the famous steel manufacturer in China.
|
5.Others: |
- MOQ: 20 sets - Pitch: 75 or 76mm - Delivery time: 7-20days - Payment term: T/T (30%) or L/C at sight - Necessary accessories: for free(bracing, base plate, etc) - Surface treatment: powder coated or galvanised - Production capacity: 3000Ton /month - Main market: Australasia, Europe, Asia, Central America, South America, North Africa and…( more than 40countries) - Available in various colors/specifications/sizes |

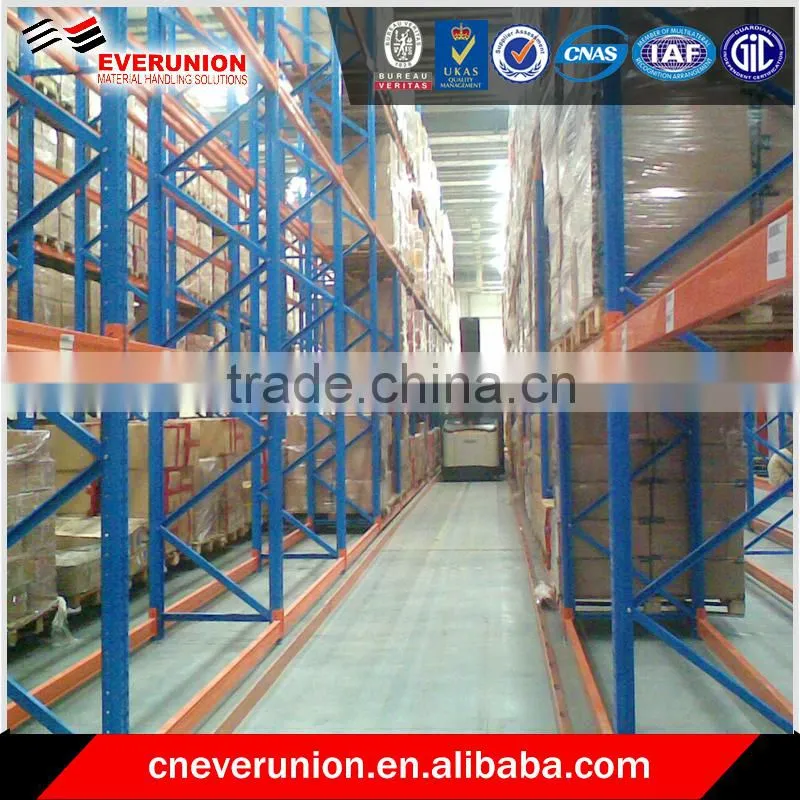

high density Narrow Aisle Rack
1.Narrow aisle rack makes optimum use of floor area and roof height by providing high density storage
2.It still allows individual access to all pallets.

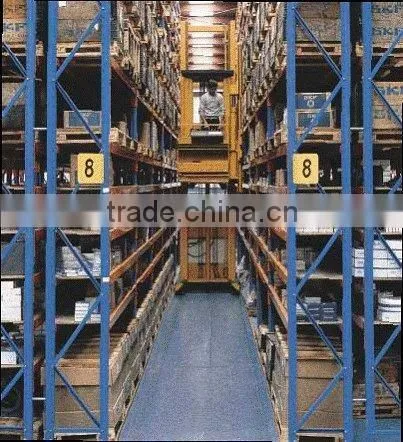

3.The system is served by specially designed forklift machines with the mast or fork head rotating to left or right as required.
4.Operator cabins may be elevating or static. Aisles are only marginally wider thean the handing equipment.
All kinds of specifications are available :
| specification of racks | length | 1200/1900/2300/2700/3300/3600(mm) | |
| depth | 800-1200(mm) | ||
| height | 2000-15000(mm) | ||
| Upright | 90*70 | ||
| Beam | 74*44&88*44&106*44&&120*44&&140*44 | ||
| thickness | 1.8mm-2.5mm | ||
| capacity/layer | 1-4tons | ||
| notes | 1. All racking shall be fixed onto the ground by means of Expansion bolts | ||
| 2. Each beam is secured by 2 safety pins | |||
| 3. There are link bars between two back-to-back rack rows. | |||
| 4. Protector is recommended to mount in the junction of over two directions | |||
advantages include:
The principal advantage of VNA racking is the combination of relatively high density with 100% individual selectivity. Throughput speed can be more rapid than with conventional trucks and layouts. VNA trucks can operate at greater heights than conventional trucks up to 14m
Special requirements:
1) Special VNA forklift truck and guidance systems
2) Very flat engineered floor surface
3) Semi automatic pallet positioning controls for accurate high level
placement and retrieval
4) Obviously it must have excellent rigidity and close engineering
tolerances
5) Beams at all storage levels unless low profile rails or wire guidance
system adopted
