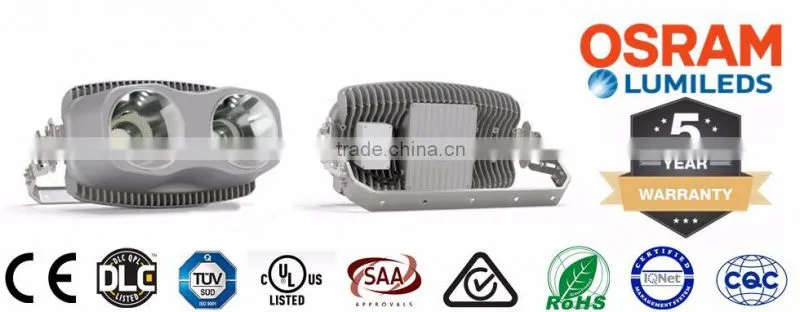

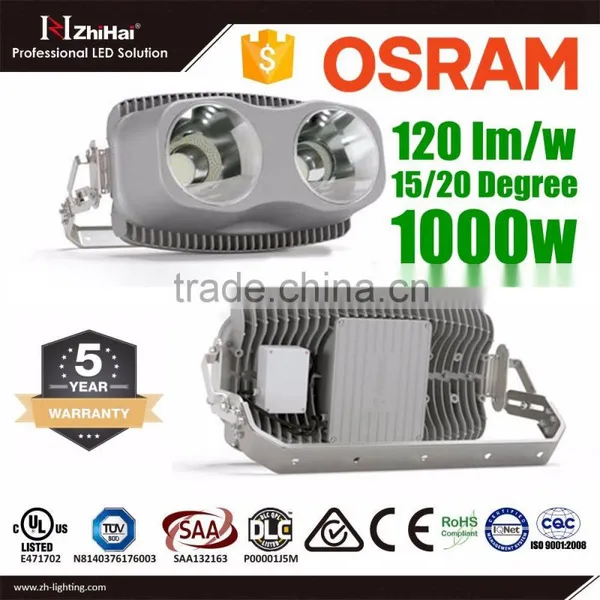

Help Center120000 lm Lumileds Chip UL TUV SAA DLC Rohs Approved 1000 Watt LED Flood Light
Related Products
-
3 Years or 5 Years Warranty, UL, CUL, DLC, TUV, CE, RoHS Replace 300W HID Light 120W LED Pendant LightUS$ 10 - 500MOQ: 2 Units -
5 Year Warrenty Outdoor 220 Volt Led Flood LightUS$ 10 - 720MOQ: 2 Units
-
UL CE TUV CSA SAA Approved Integratd Die-casting Aluminium 400w Slim Led Stadium Flood LightUS$ 500 - 1,000MOQ: 1 Piece
-
High Lumen UL CE TUV CSA SAA Approved 400w Led Stadium Flood LightUS$ 500 - 1,000MOQ: 1 Piece
-
CE Rohs Tuv UL Approved 48000lm Ip67 400W LED Explosion Proof FloodlightUS$ 10 - 720MOQ: 2 Units
------------------------------

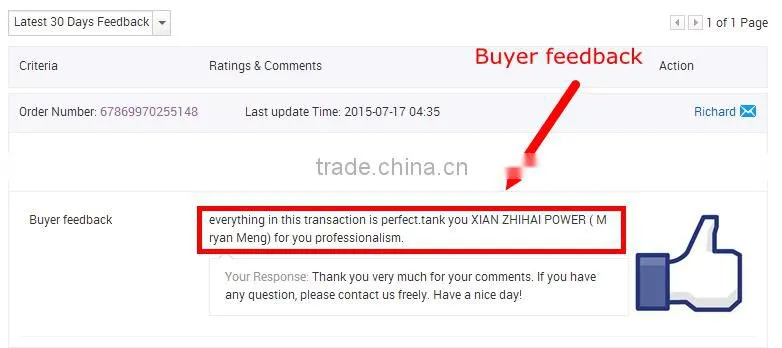

Buyer feedback
Typical application
Street | Bridge | Architecture | Warehouse | Stadium | Tunnel | Garden | Parking | Billboard | Plaza | Show Room | Factory |
Shopping Mall | Petrol Station | Conference Centers | Cold Storage | Floodlighting
Features & Characteristic
Patent multi- function design, suitable for all projects
- 5-5-10 year warranty
- Top performance LED chips, 120 lm/w system efficacy
- 80% lumen maintenance over 50,000hours
- 0-10Vdc dimming driver available
- Photocell and motion sensor system available
- Built-in surge protection
- Built-in thermal protection
- Maintenance free
- Mercury free, No UV or IR
- Universal 80-347Vac input without additional adapter
- Instant start and flicker free
- High uniformity and color rendering
Model |
ZHGL-1000P-L15 |
ZHGL-1000P-L20 |
ZHGL-1000A-L60 |
ZHGL-1000A-L120 |
ZHGL-1000A-L140 |
||
Beam Angle |
15° |
20° |
60° |
120° |
140°x60° |
||
|

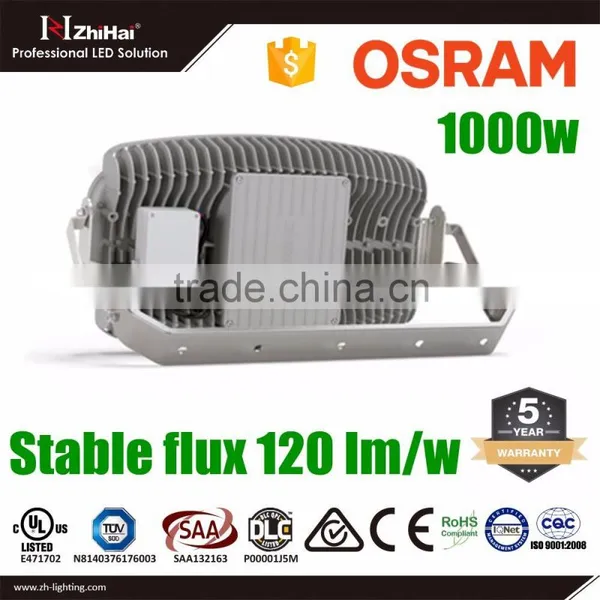

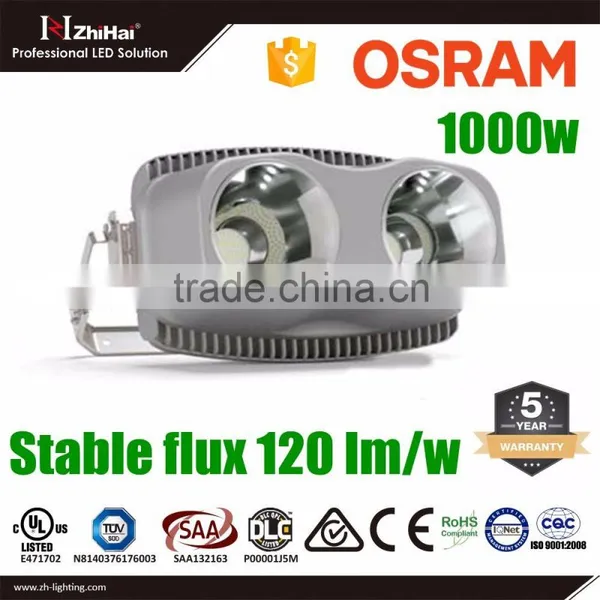

Stable Flux (5700K after 1 hour) |
100,000 lm |
105,000 lm |
110,000 lm |
120,000 lm |
105,000 lm |
||

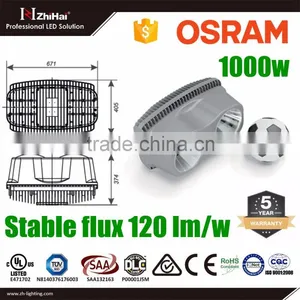

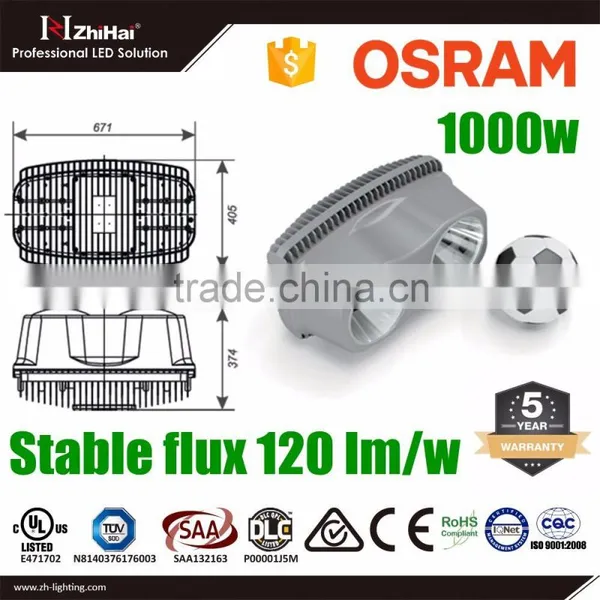

Dimension (mm) |
671x405x374 |
671x405x322 |
671x405x204 |
||||
|
Power Consumption |
LEDs |
900W |
|||||
Driver |
100W |
||||||
Total |
1,000W |
||||||
Replace HID Lamp |
2000-3000W |
||||||
Net Weight |
29kg (64lbs) with stainless steel floodlight bracket |
||||||
Color Temperature |
5700K (2700 ~ 6500K available on request) |
||||||
Color Rendering |
≥Ra75 (≥Ra80, ≥Ra90 available on request) |
||||||
Working Life |
≥50000Hrs |
||||||
Housing Material |
Aluminum |
||||||
Coating |
Zinc Rich Paint |
||||||
IP Class |
IP 65 (Upgradeable to IP 67) |
||||||
Insulation Class |
Class I |
||||||
Working Temperature |
-40C ~ 60C / -40F ~ 140F |
||||||
Working Humidity |
10% ~ 95% |
||||||
AC Input |
80 ~ 360Vac, 400 ~ 600Vac |
||||||
DC Input |
100 ~ 400Vdc, 500Vdc ~ 800Vdc |
||||||
THD |
<10% |
||||||
Power Factor |
≥0.98 |
||||||
Warranty |
LED Module |
5 year |
|||||
Driver |
5 year |
||||||
Housing |
10 year |
||||||

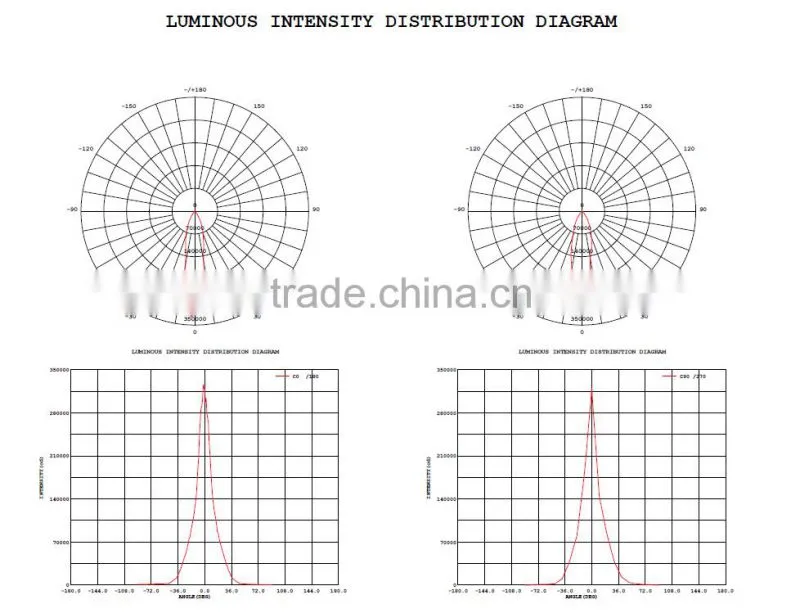

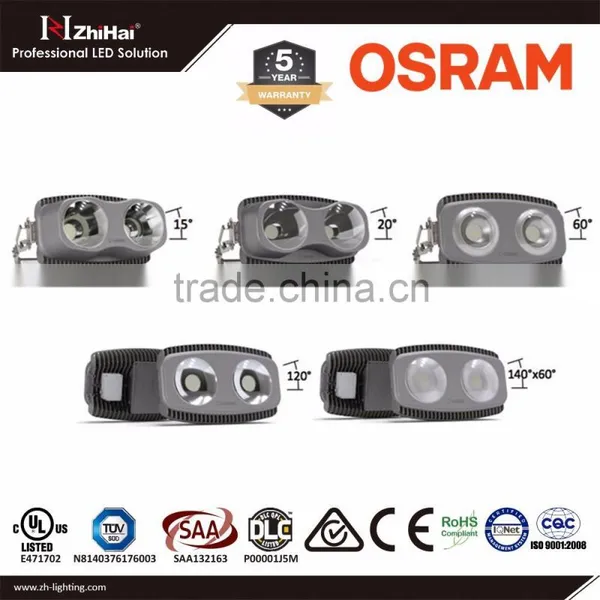

Beam Angle

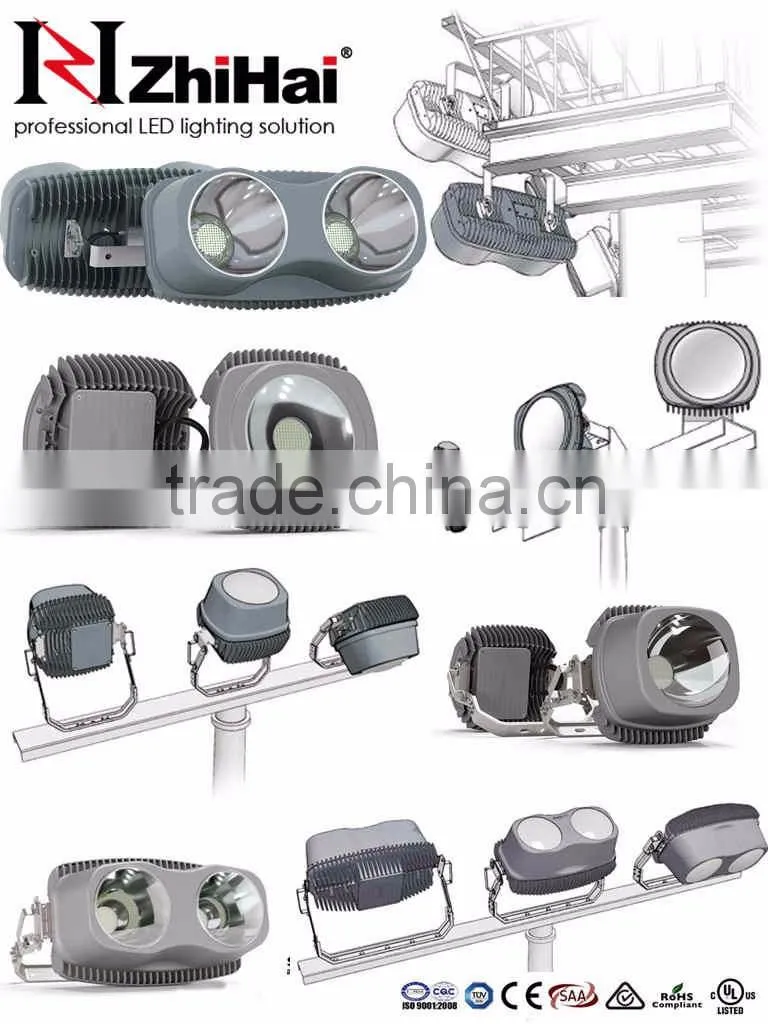

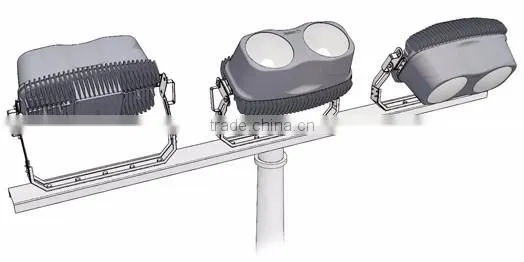

Flexible Mounting System
Click to check our pricing information

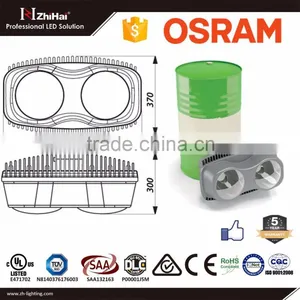

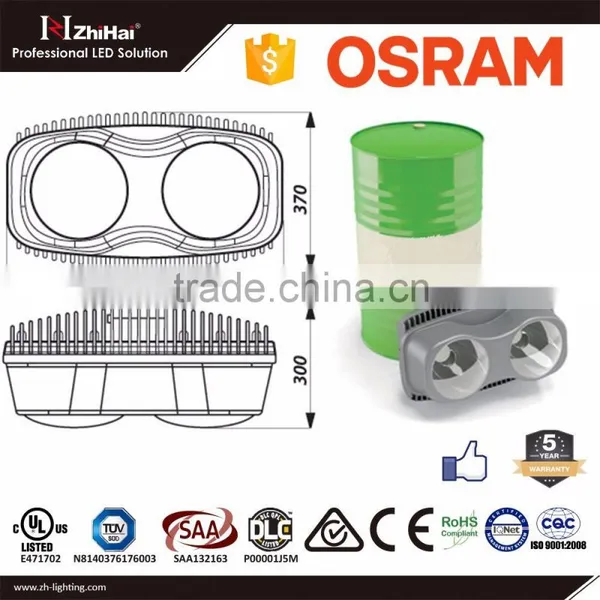

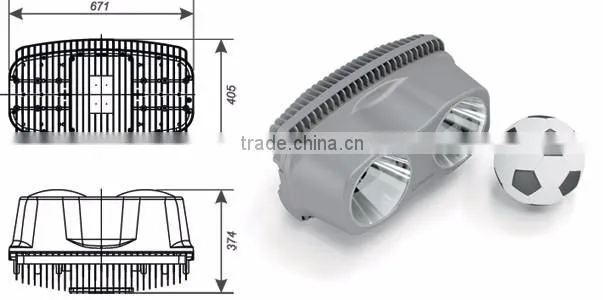

Dimensionsfo
Click to check our pricing information
Lighting Facts:

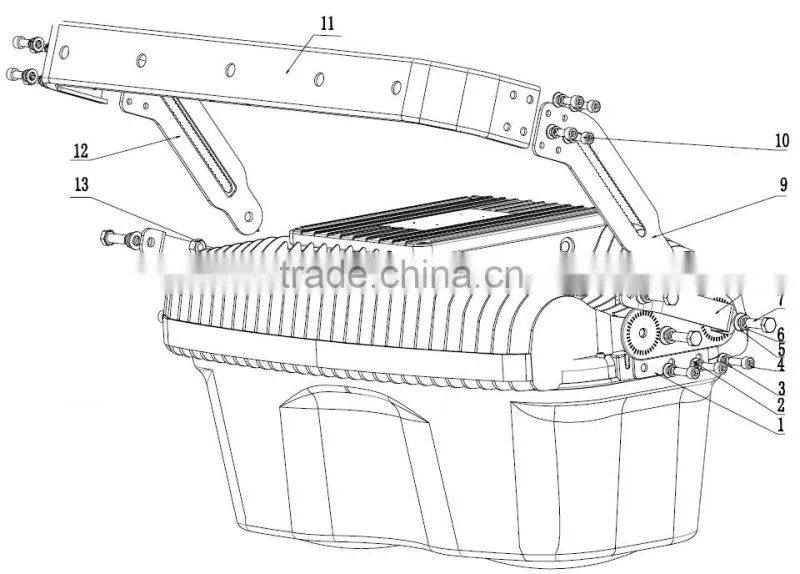

INSTALLATION
| Model | N.W (KGS) | G.W (KGS) | CTN SIZE (MM) | PCS/CTN |
| ZHGL-1000P | 29 | 35 | 780*480*505 | 1 |
| ZHGL-1000A | 28 | 32 | 750*480*505 | 1 |

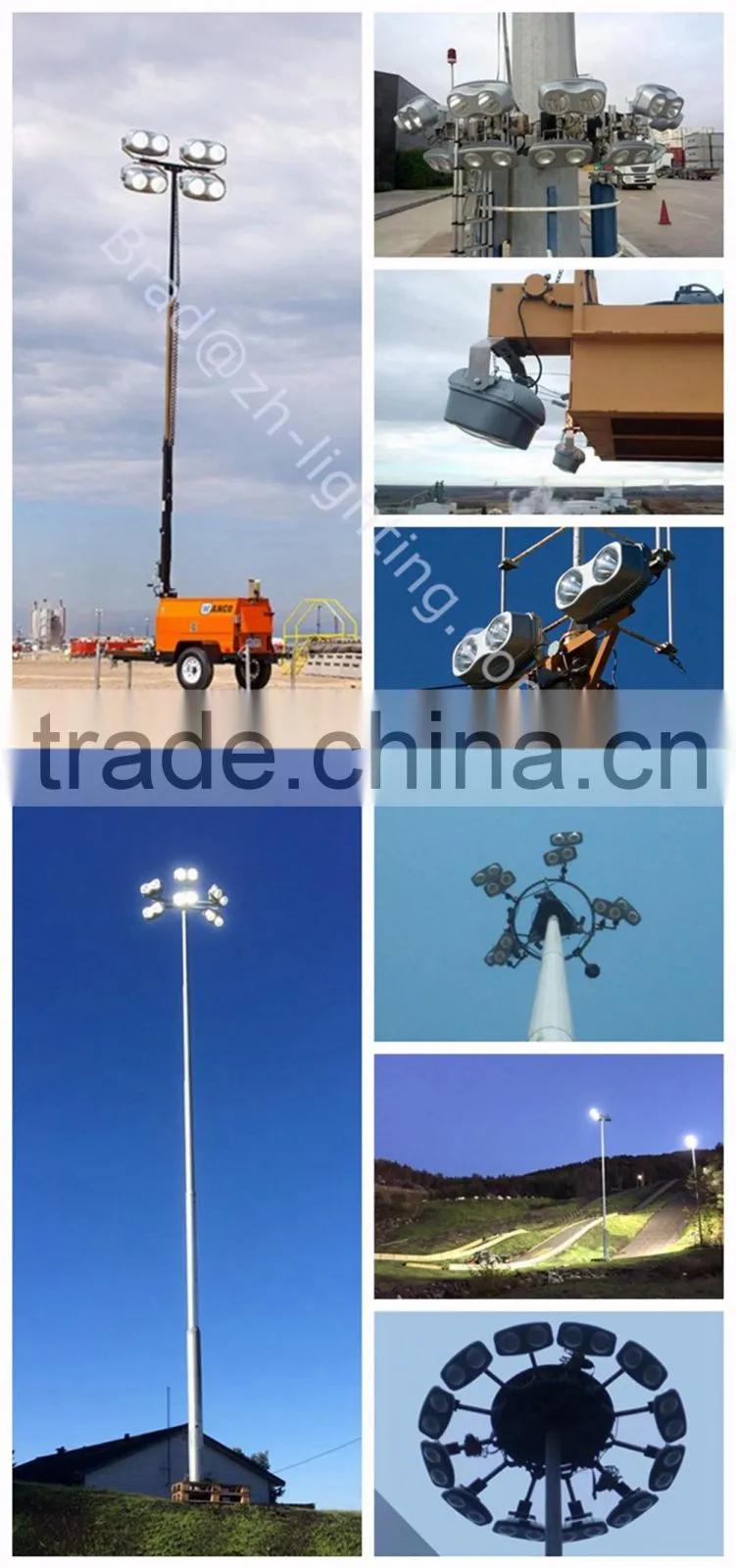

Typical application:
Sea Port | Airport | Bridge | Architecture | Industrial Facility | Stadium | High Mast | Plaza | Street | Professional Lighting
Click to check our pricing information
Trade Shows
Click to check our pricing information

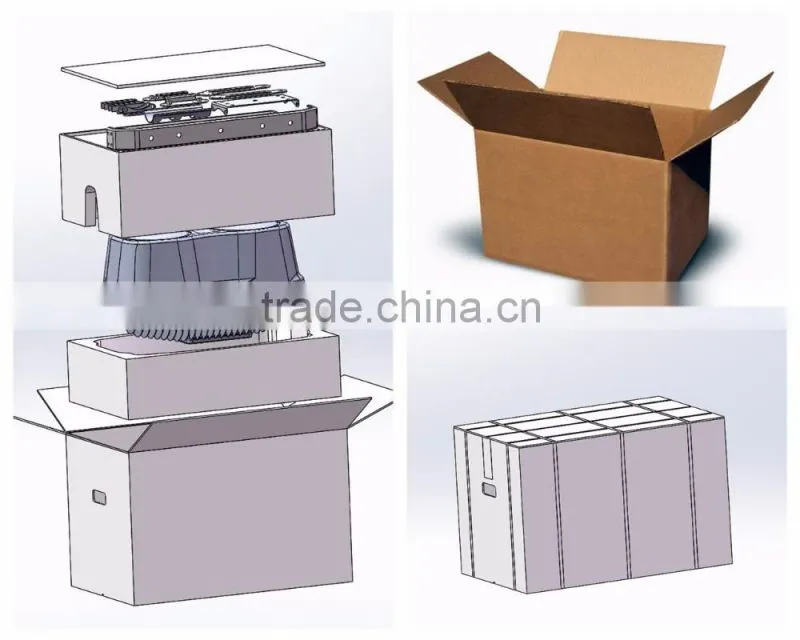

Packing
| Model | N.W (KGS) | G.W (KGS) | CTN SIZE (MM) | PCS/CTN |
| ZHGL-1000P | 29 | 35 | 780*480*505 | 1 |
| ZHGL-1000A | 28 | 32 | 750*480*505 | 1 |
Click to check our pricing information
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping , or Western Union for small amount .
2. Lead time : normally in 5~7 days after deposit received
3. Shipping port: Tianjin, China
4. Discounts : We offer discount for big quantity.
Zhihai Power Technology Co., Ltd. was established in 1998, before 2006 we were one of the most advanced provider of power supply and we worked with many important companies in Asia, including China Guodian, China Mobile, and Comba Telecom etc.
In 2006, adopted the technology of our electronic and thermal control experience, we started and moved to the R&D, manufacture, sales and service of LED lighting, and very quickly, we became one of the leading and most professional LED lighting company in China.
Technology and quality are always playing key roles on Zhihai philosophy, we are holding the "Xi'an LED Lighting Engineering Laboratory" which is authorized and supported by China National Development and Reform Commission, and we are also holding the "Shaanxi LED Lighting Technology and Research Center" which is authorized and supported by China National Science and Technology Ministry. We have more than 10 professors and doctors in our company R&D dep. and more than 30% of our employees have bachelor or higher degrees and fully trained.
Till 2012 we have 125 patents and more than 80 patents are pending, the patents include the LED chips packaging, power supply controlling and design of lamp housing. We worked with ISO-9001 quality control system since 2001, the products are TUV, CE, SAA, C-tick and RoHS certificated, and we are also applying UL.
We are working on high quality and professional LED lighting products, and more than manufacture, we are also providing our clients with lighting layout design and brightness calculation of projects. Zhihai would always be your first choice of professional LED lighting supplier.
Click to check our pricing information
Q1. Are you a trading company or factory?
We are the factory based in the ancitnt city Xi'an China since 1998.we acquired and worked to ISO9001 quality standard since 2001 and we are the TUV audited manufacturer.
Q2. How much will the shipping cost of light be?
We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.
Q3. How can I make orders for it ?
Please see the following order info:
•Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
•Payments terms: T/T, western union, PayPal and L/C
•Delivery time: 3-5 days for sample, 7-10 days for bulk order
We accept mini order.
Q4.How do you ensure the quality ?
We are strictly focus on quality control. All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
Q5.Do you offer free sample ?
Sample will be charged with same price of bulk order's, not any surcharge will happen.
Q6.How long can I get your reply?
We respond to every inquiry within 8 hours.
