Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Tile Making Machine > Steel Floor Deck Roll Forming Machine
US$ 19,000 - 27,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT- Electric Uncoiler (capacity 8T)US$ 2,900 - 4,500MOQ: 1 Set -
Automatic Double Layer Roof Roll Forming MachineUS$ 21,888 - 56,321MOQ: 1 Set
-
HT Covering Machine(also Named Double Side Sealing Machine)US$ 1,650 - 2,000MOQ: 1 Set
-
HT- U Purline MachineUS$ 28,588 - 36,888MOQ: 1 Set
-
HT 265 Ridge Tile Roll Forming MachineUS$ 11,088 - 20,000MOQ: 1 Set
Condition
New
Type
Tile Forming Machine
Tile Type
Colored Steel
Use
Floor
Production Capacity
9-12mm
Place of Origin
Hebei, China
Brand Name
huatong
Model Number
-688 Steel Floor deck making machine
Power(W)
11kw
Voltage
380v
Certification
ISO9001:2000
Warranty
1YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
HT-688 Steel Floor deck making machine1.wide application
2.High quality
3.Design for you

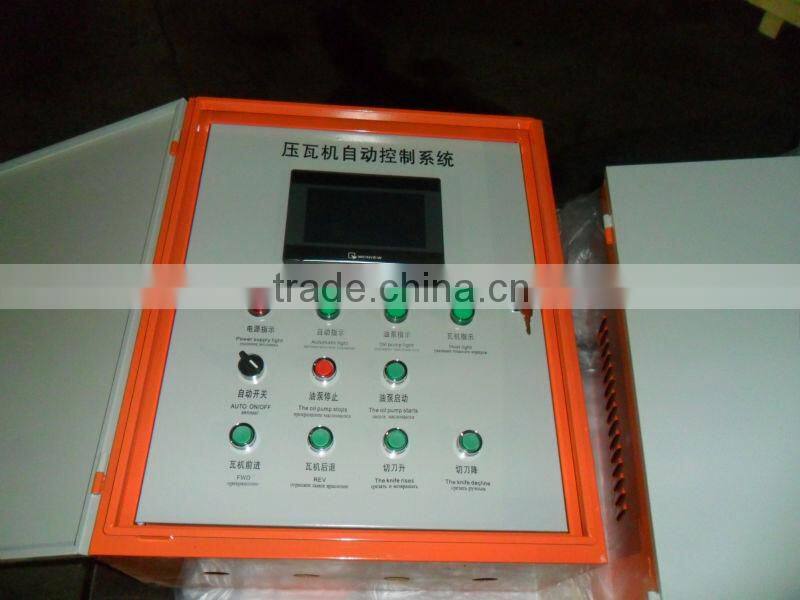

4.Control by PLC
HT-688 Steel Floor deck making machine
(1) Material of frame : (high grade) 360mm H shape steel welding
(2) Thickness of middle plate : 16mm
(3) Step of roller : 22 steps
(4) Diameter of shaft (solid shaft): 80mm
(5) Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment
(6) Material of roller: 45# Steel
(7) Treatment of roller : hard chromize coated
(8) Drive type of roll forming machine : drive by chain
(9) Chain :25.4 mm (high grade)
(10) Bearing : 6210 (high grade)
(11) Reducer : 6# cycloid reducer (high grade)
(12) Power of main motor : 11KW
(13) Voltage : 380V/50Hz/3phase
(14) Line speed : about 9-12 m/min
Welcome to your enquiry !
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2011
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
