Specifications
Huatong double layer roof roll forming machine1.Power of main motor :3kw
2.Certification:ISO 9001:2000
3.IBR & Corrugated
1.Name of the roll forming machine
Automatic double layer roof roll forming machine
2.Feature of the roll forming machine
steel tile forming machine,tile forming machine, roof tile machine, roof tile making machine to make steel tiles look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc
3. Machine's components:
Tile forming machine consist of uncoiler,coil sheet guiding and adjusting device,covering film device,main roll forming system,pressing device,cutting device,hydraulic station,PLC control system and support table.
4.Technical parameters for roll forming machine
<1>. Step of forming roller :Upper layer 15steps,Lower layer 18steps
<2>. Diameter of shaft(solid shaft): 74mm
<3>. Material of shaft (solid shaft): (high grade) 45# Steel, quenching and tempering treatment
<4>. Razor blades material : Cr12, quenching 58-62 °
<5>. Treatment of roller : hard chromize coated
<6>. Reducer : 5# cycloid reducer (high grade)
<7>. Power of main motor : 3kw
<8>. Voltage: 380V/50Hz/3phase
<9>. Line speed : about 9-12m/min
<10>. Appearance size : 8.2m*1.5m *1.5m
<11>. PLC: DELTA(TAIWAN)
<12>. Frequency converter : DELTA(TAIWAN)
5.More details for the roll forming machine

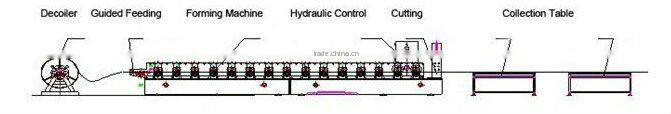

(1)Drawing and product

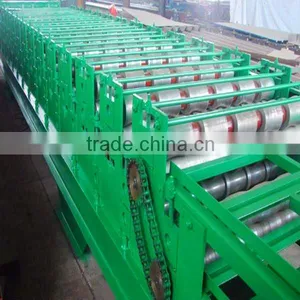

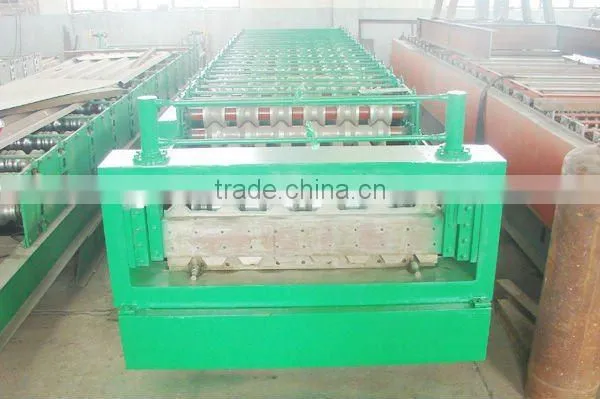

(2)pictures for the roll forming machine
(3)Application for the roll forming machine

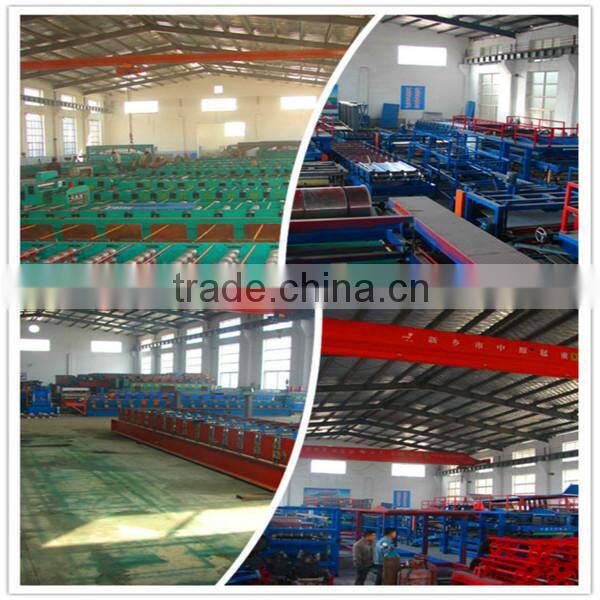

6. Company
7. The show room
8.Certificate
9. OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
10. With 30 years professional manufacture experience
11. Prompt Delivery&Competitive Price
