Vitreous Tiles / Glazed Tile Roll Forming Machine

Vitreous Tiles / Glazed Tile Roll Forming Machine thumbnail-1
Vitreous Tiles / Glazed Tile Roll Forming Machine photo-1
US$ 13,770 - 30,770 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Botou Huatong Corrugated Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin new port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Steel
Use Roof
Place of Origin Hebei, China
Brand Name Huatong
Power(W) 3 KW
Voltage 380v
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Glazed Steel tile making machine
1.Control by PLC
2.The latest design
3.Warranty :(main machine 12months , parts :3 months







Product Description





Glazed tile / Vitreous tiles roll forming machine

Vitreous tiles / Glazed tile roll forming machine

(1) Material of frame : (high grade) 250mm H shape steel welding

(2) Thickness of middle plate : 12mm

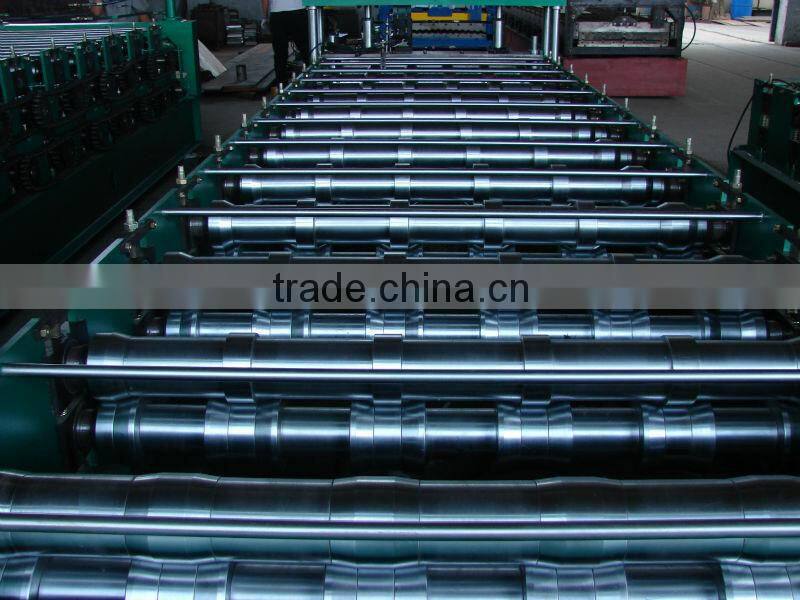

(3) Step of forming roller : 10steps

(4) Diameter of shaft (solid shaft): 74mm

(5) Material of shaft (solid shaft): (high grade) 45# Steel, quenched and tempered treatment,hard chromize

coated 0.05-0.07mm

(6) Drive type of roll forming machine : drive by chain

(7) Chain : 25.4 mm (high grade)

(8) Bearing : 6210 (high grade)

(9) Reducer : 5# cycloid reducer (high grade)

(10) Power of main motor : 3KW

(11) Voltage : 380V/50Hz/3phase

(12) Line speed : about 9 m/min

(13) Feeding width : 1000mm or 1200mm

(14) Suitable coil thickness : accepted thickness for aluminum coil is 0.3mm-0.9mm.

                      accepted thickness for steel coil is 0.3mm-0.6mm.

(15) Motor power of hydraulic station : 3kw

(16) Oil pump of hydraulic station : gear oil pump (high grade)

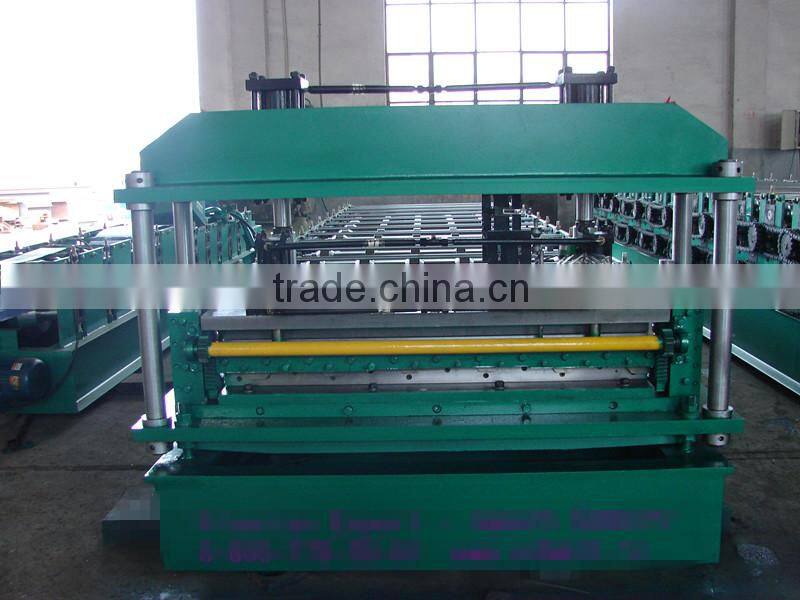

(17) Hydraulic cutting: cutting controlled by PLC

(18) Accuracy of cutting : +/- 2mm

(19) Razor blades material : Cr12, quenching 58-62 °.

(20) Appearance size of main forming machine : 6m (long)*1.3m (width) *1.5m (height)

(21) Weight of main forming machine : about 4.5T

(22) Electrically controlled system : entire machine controlled by PLC

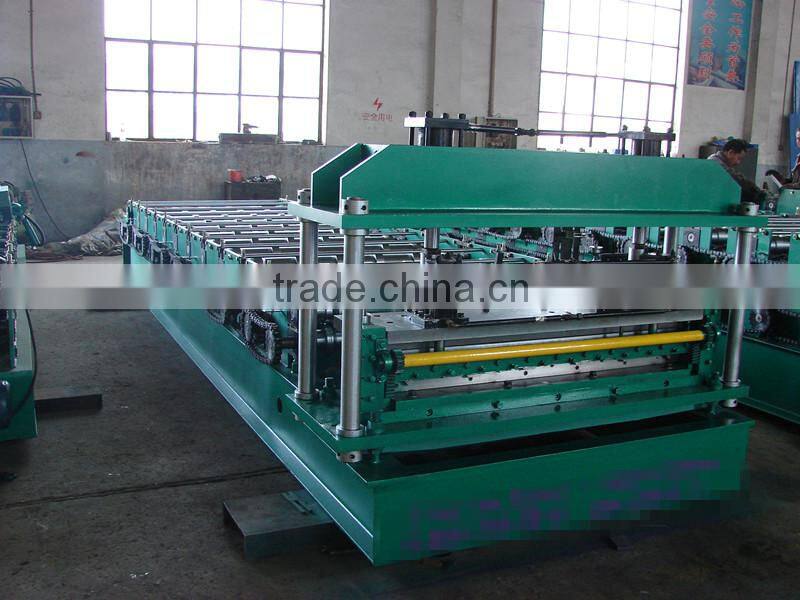

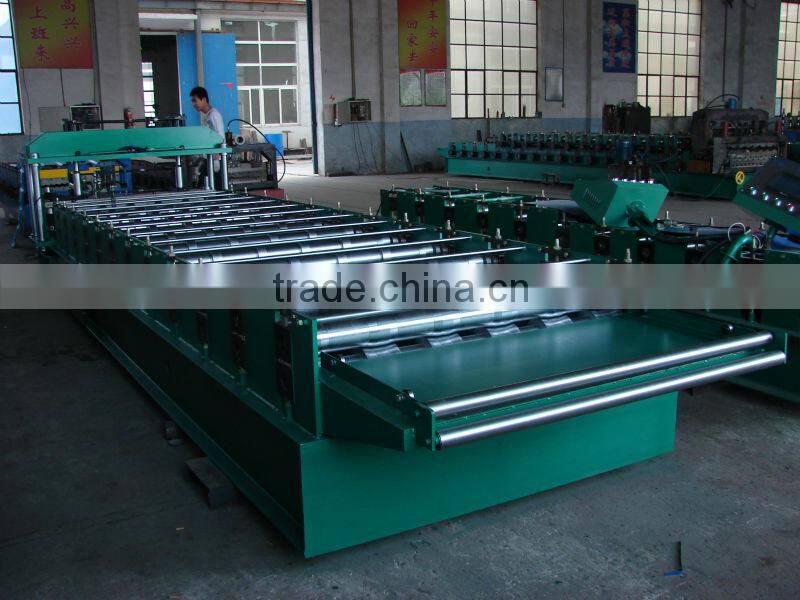

Vitreous tiles / Glazed tile roll forming machineVitreous tiles / Glazed tile roll forming machine



 Vitreous tiles / Glazed tile roll forming machineVitreous tiles / Glazed tile roll forming machine



 Vitreous tiles / Glazed tile roll forming machine



Company Information





Factory



Vitreous tiles / Glazed tile roll forming machine

Vitreous tiles / Glazed tile roll forming machineVitreous tiles / Glazed tile roll forming machine



Vitreous tiles / Glazed tile roll forming machine
