Specifications
1 we have passed the ISO2 we take the quality to the first
3 fully automatic
4 perfect after-sale

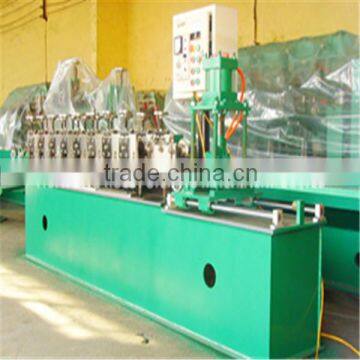

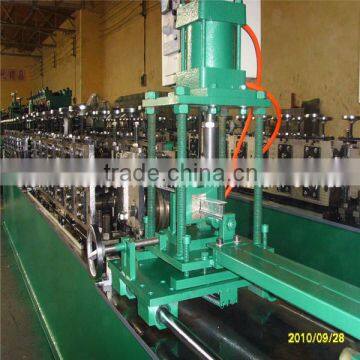

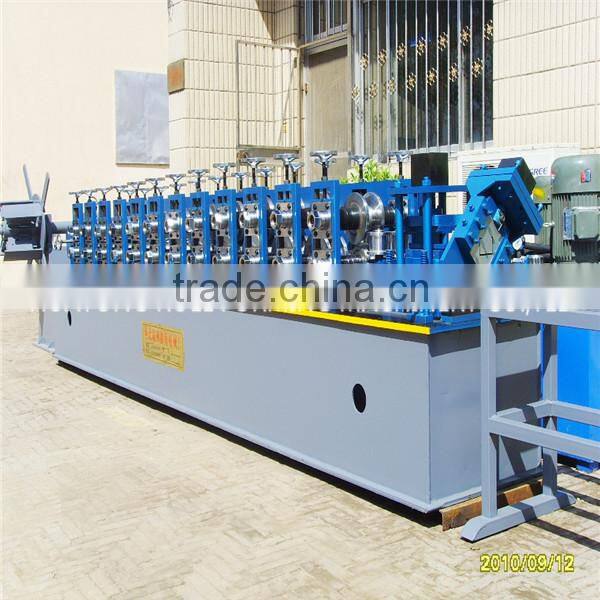

COLOR STEEL LIGHT STEEL KEEL MACHINE
<1>Roll Forming rollers: material GCr15, hardness after heat treatment HRC48-50,
<2>Hole diameter (roller shaft diameter) φ42mm, the min. outside diameter of rollers isφ100.
<3>Main motor (Jiangmen Jiangyan motor), Frequency control.
<4>The material of main shaft is 40Cr, finished after heat treatment and refine grinded.
<5>Hydraulic system: Taiwan Dazheng brand.
<6>Mould rack: the mould plate closed height is 260mm, the adjustment range of the closed height is 20mm, the max. stroke of oil cylinder is 100mm.
<7>Total power: 12kw
<8>Power supply: voltage 380V±10%/ three phase four wire, frequency 50HZ.
<9>. PLC : DELTA(TAIWAN)or Mitsubishi(JAPAN)
<10>. Frequency converter : DELTA(TAIWAN)
1. Our offer is for the whole roll forming machine line
2. Our machine line is full-automatic
3. Our machine is different with other machine
1). Material of machine main frame: our is” I” beam, low price is “H” beam.
2). Size of machine main frame : our is 360mm, low price is 250-350mm.
3). Thickness of middle plate : our is 14mm, low price is 10-12mm.
4). Type of shaft : our is solid, low price is hollow, they use steel pipe instead of shaft.
5). Diameter of shaft : our is 74mm, low price is 50-60mm.
6). Material of shaft : our is (high grade) 45# Steel,quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment.
7). Material of roller : our is (high grade) 45# Steel,quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment.
8). Size of roller : our is bigger than low price machine
9). Treatment of roller surface: our is hard chromize coated 0.05-0.07mm, low price is 0.01-0.03mm even they paint silver powder instead of chromize coated.
10). Size of chain : our is 25.4 mm (high grade and “DONGHUA BRAND”famous brand of China), low price is 19.05mm(not high grade and famous brand of China).
11). Bearing : 6210 (high grade and “HAERBIN BRAND”famous brand of China), low price is not high grade and famous brand of China.
12). Motor and Reducer : our is 5# cycloid reducer (high grade and “MENGNIU BRAND” famous brand of China), low price is 4#(not high grade and famous brand of China).
13). Oil pump of hydraulic station : gear oil pump (high grade). Low price is not gear oil pump.
14). Razor blades material : our is Cr12, quenching 58-62 °. Low price is not Cr12, quenching 58-62 °.
15). Frequency converter : our is DELTA(Made in TAIWAN), our machine can reach accuracy of cutting : +/- 2mm, low price machine do not have frequency converter, their machine can not control accuracy of cutting.
16). PLC : our is DELTA(Made in TAIWAN), low price use low price PLC.
17). Encoder : RUI PU(high grade and famous brand of China)
our purpose :take the quality to the first,must let you satisfy ,to reach the common benefit,built long fridenly relationship for us.
so if you are interested in our products,please don't hesitate to contract me.
