Help CenterHT15-225-900 Full Automatic Roll Forming Machine Line
Related Products
-
HT 688type Floor Deck Roll Forming Machine LineUS$ 38,000 - 67,760MOQ: 1 Set -
HT-920 Hydraulic Color Steel Metal Sheet Roof Roll Forming MachineUS$ 9,700 - 15,500MOQ: 1 Set
-
Ridge Cap Roll Forming MachineUS$ 8,650 - 25,000MOQ: 1 Set
-
Hydraulic Glazed Tile Roll Forming MachineUS$ 9,000 - 25,000MOQ: 1 Set
-
Floor Deck Roll Forming MachineUS$ 19,999 - 69,950MOQ: 1 Set
Specifications
1.Newest design;2.Hydraulic Machine Price;
3.Hua Tong Roll Forming Machine;
4.ISO certificate passed .

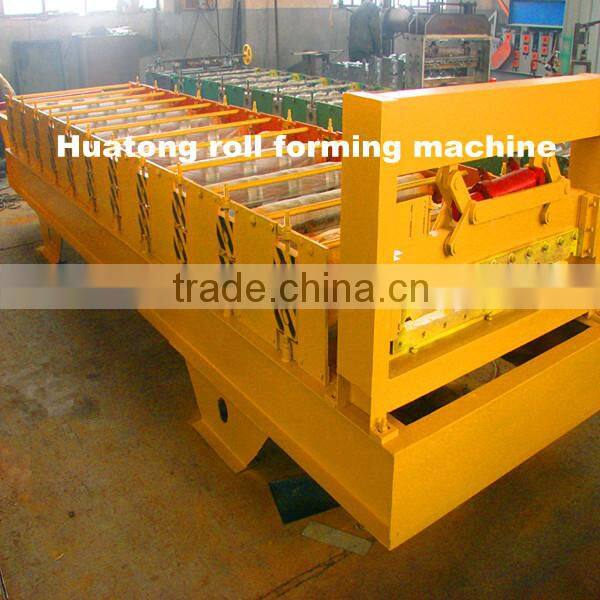

HuaTong15-225-900full automatic
roll forming machine line
Machine componets of full line:
(1) Manualun-coiler 1 set
(2) Feeding device 1 set

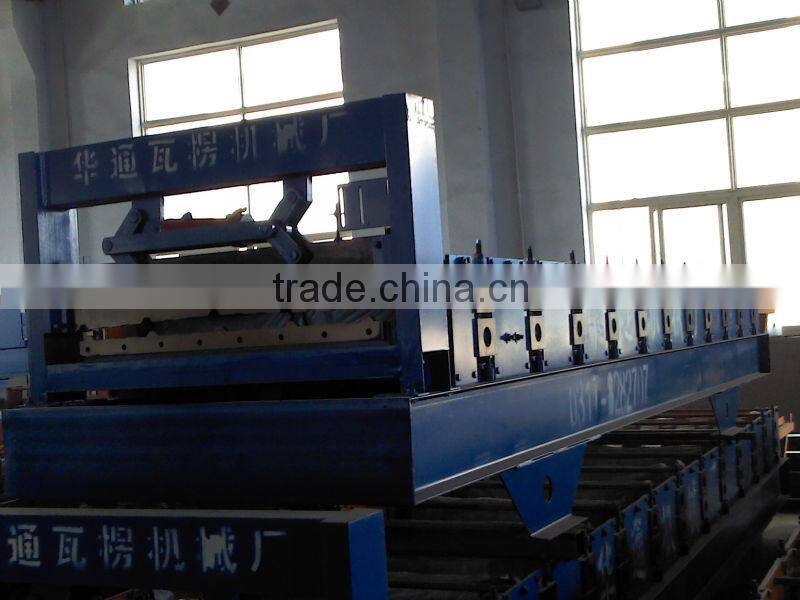

(3) Roll forming M/C 1 set
(4) Hydraulic cutter 1 set
(5) PLC control system 1 set
(6) Hydraulic station 1 set

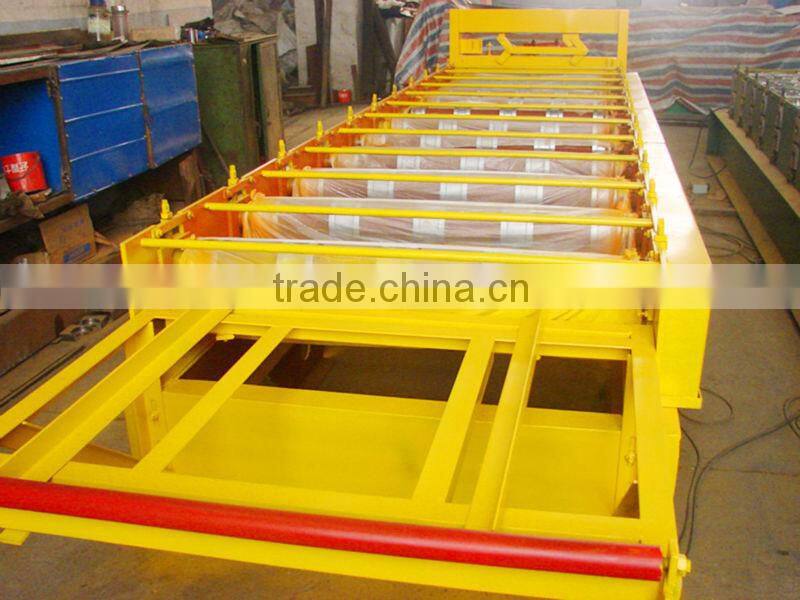

(7) Product rack (un-powered) 1 set

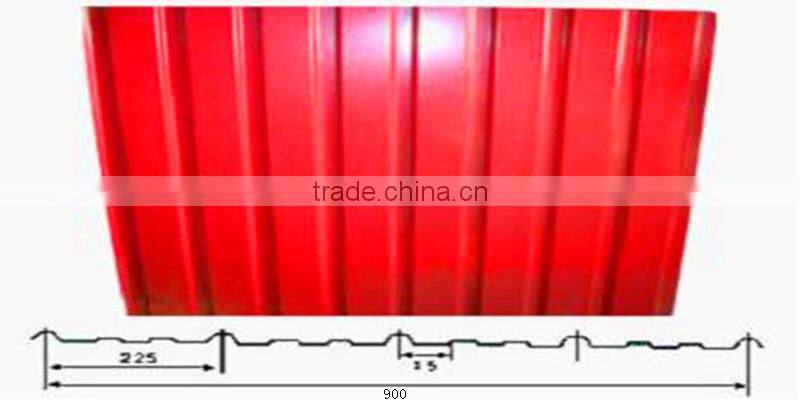

Profile
1) Wave height : 15mm
2) Centre to centre distance between two waves : 225mm
3) Effective width : 900mm
4) Feeding width : 1000mm
5) Thickness of formed steel : 0.3mm-0.8mm
6) Material of coil or plate : color steel sheet
7) Use of finished product : roof panel or wall panel
Roll forming machine
(1) Material of frame : (high grade) 250mm H shape steel welding
(2) Thickness of middle plate : 12mm
(3) Step of forming roller : 11steps
(4) Diameter of shaft (solid shaft): 70mm
(5) Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment
(6) Material of roller: 45# Steel
(7) Treatment of roller : hard chromize coated
(8) Drive type of roll forming machine : drive by chain
(9) Chain : 19.05 mm (high grade)
(10) Bearing : 6210 (high grade)
(11) Reducer : 4# cycloid reducer (high grade)
(12) Power of main motor : 3KW
(13) Voltage : 380V/50Hz/3phase
(14) Line speed : about 0-9 m/min
(15) Motor power of hydraulic station : 2.2kw
(16) Oil pump of hydraulic station : gear oil pump (high grade)
(17) Hydraulic cutting: cutting controlled by PLC
(18) Accuracy of cutting : +/- 2mm
(19) Razor blades material : Cr12, quenching 58-62 °.
(20) Appearance size of main forming machine : 5.6m (length)*1.3m (width) *1.3m (height)
(21) Electrically controlled system : entire machine controlled by PLC
(22) PLC : DELTA(TAIWAN)
(23) Frequency converter : DELTA(TAIWAN)
(24) Frequency converter power : 3.7KW
(25) Encoder : RUI PU(high grade)
(26) Controlling desktop : text panel screen(high grade)
(27) Electrical parts : DELIXI or CHINT
(3) Hydraulic Cutting
Hydraulic cutting,
Post cut, stop to cut,
The cutting blade material is Cr12,
The cutting tolerance:±2.0mm
(4) Hydraulic system
Supply the power for cutting.
Oil pump for hydraulic system
Type : gear oil pump
Brand : SDH (SHANG HAI )
Type : F316
Displacement : 16ml / r
Pressure : 20Mpa
(5) Eletric control system:
PLC control the whole line.
Human-machine interface, whirl encoder calcaulates the length, the touch screen sets the length.
You can set lots of data one time. Frequency adjusts speed, it has auto adjustment function
Transducer drives the main machine, it has E-stop button, which promise the safe running.
(6) Product rack:
In order to collect the final product, it is conveniently for workers to stack.
Note : we can customize the design and fabrication on the particular type of machine according to the request of customer.
Our company
HuaTong Roll Forming Machinery Factory is a leading manufacturer of roll forming machinery in China.We own a high-quality and professional team in designing,scientificing researching,producting,sales and after-sales services.
Customer's benefit is the first,we know that deeply our development and success come form development and success of our customer,we run this mind through the whole process form design products to after-sales service,we design and produce according to the demand and request of customers to help them improve efficiency,reduce cost and increase competitive strength.
♥Welcome to contact us !!!
