Specifications
1.HT hydraulic operated de coier2.Motor power:11 kw
3.Width of coil:1600 mm
4.Guarantee:1 year
5.Certification:ISO

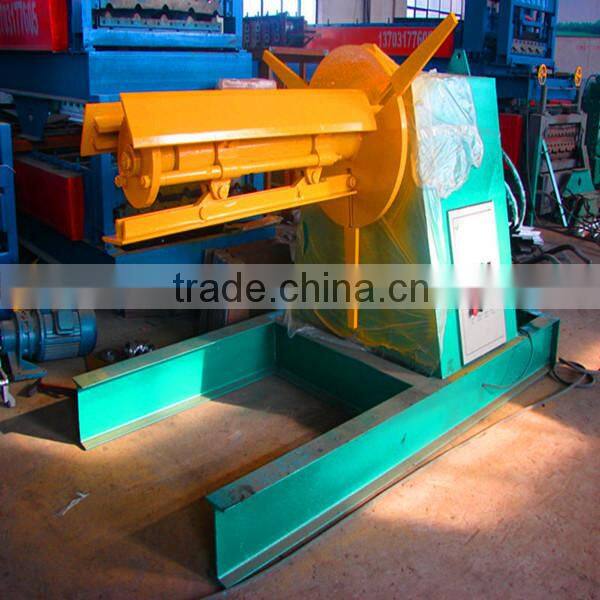

Automatic hydraulic operated de coier
Functional features : |
|
1.Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate. 2.Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free. 3.We can make and design what kinds of roll forming machine according to the request of customers. 4. OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted. 5. With 20 years professional manufacture experience 6. Prompt Delivery&Competitive Price 7. Main markets: Middle East, Europe, North America, Africa,Southeast Asia, Latin America etc. 8. After-sales service: 1.We provide the technical support for whole life of our machines. 2.If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,including visa,roundtrip ticket etc.
|
|
Specifications :
|
Hydraulic de coier
| Motor power of decoiler | 11kw |
| Motor power of Hydraulic station | 11kw |
| Inside dia of coil | φ508mm,φ610mm |
| Outside dia of coil | φ1800mm |
| Width of coil | 1600mm |
| Weight of coil | 25T |
| Speed of decoiling | 0-20m/min |
| Pressure of hydraulic system | 10Mpa |
| Voltage of control | 3P/440V/60HZ |
| Voltage of hydraulic pressure | DC24V |
(1) Form of decoiler : Hydraulic Tension and electric discharge
(2) Motor power of decoiler : 11KW
(3) Motor power of Hydraulic station : 11KW
(4) Inside dia of coil : φ508mm,φ610mm
(5) Outside dia of coil : φ1800mm
(6) Width of coil : 1600mm
(7) Weight of coil : 25T
(8) Speed of decoiling : 0-20m/min
(9) Pressure of hydraulic system : 10Mpa
(10) Way of control : Multi-level photoelectric automatic tracking
(11) Outline dimension of decoiler : 3200mm×1700mm×1800mm
(12) Voltage of control : 3P/440V/60HZ
(13) Voltage of hydraulic pressure : DC24V
Product Picture
| Company Pictures |
|
|
