HT 840 arched machinery

FOB Price

USD $2,389 - $5,600 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Other, curving machinery	Tile Type:	Steel
Use:	Roof	Production Capacity:	about 9 m/min	Place of Origin:	Hebei, China
Brand Name:	huatong arched machinery	Model Number:	840 arched machinery	Power(W):	1.5KW
Voltage:	380V/50Hz/3phase	Dimension(LWH):	1.3m (length)0.8m (width) 1.4m (height)	Weight:	about 1.6t
Certification:	ISO	Warranty:	1year	After-sales Service Provided:	Engineers available to service machinery overseas

Curving machinery
newest design
certificate:ISO

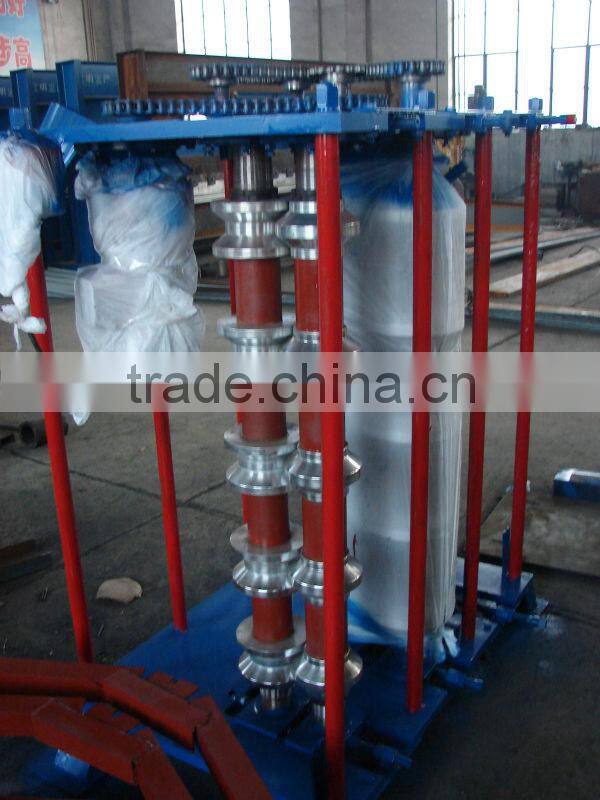

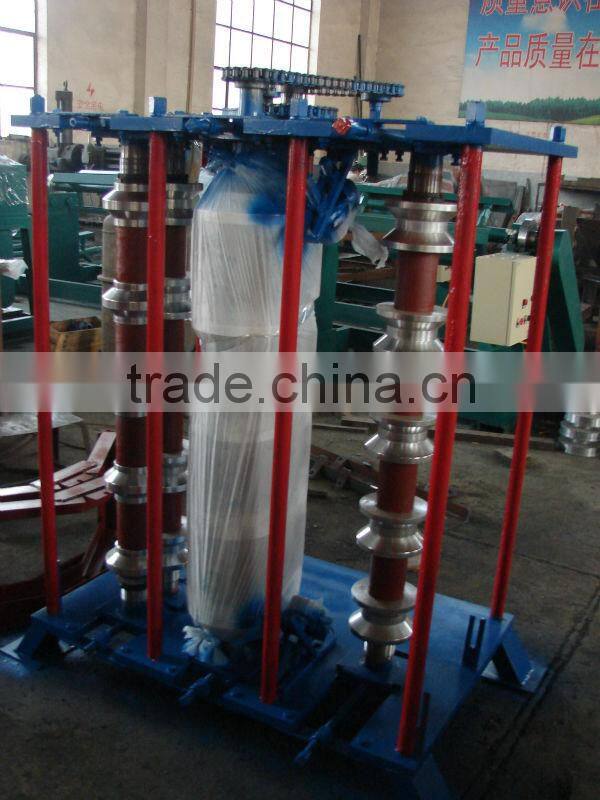

HuaTong curving machinery (type 840)

1.Technique parameters of the processing line:

(1) Thickness of middle plate : 25mm

(2) Shaft : 5

(3) Diameter of shaft (solid shaft): 74mm

(4) Material of shaft (solid shaft): (high grade) 45# Steel, quenched and temperedtreatment,hard chromize coated

(5) Drive type of roll forming machine : drive by chain

(6) Chain : 19.05 mm (high grade)

(7) Bearing : 6210 (high grade)

(8) Reducer : 3# cycloid reducer (high grade)

(9) Power of main motor : 1.5KW

(10) Voltage : 380V/50Hz/3phase

(11) Line speed : about 9 m/min

(12) Arching radius : ≥2500mm

(13) Feeding width : 840mm

(14) Suitable coil thickness : accepted thickness for steel coil is 0.30mm-0.8mm.

(2). we can customize the design and fabrication on the particular type of machine according to the request of customer.
