Building HT-760 Steel roof and wall curving tile making machine

HT-760 Type horizontal type curving machine

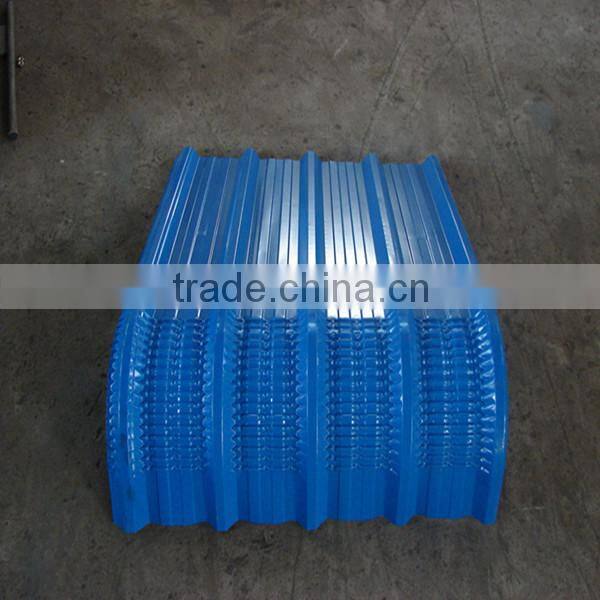

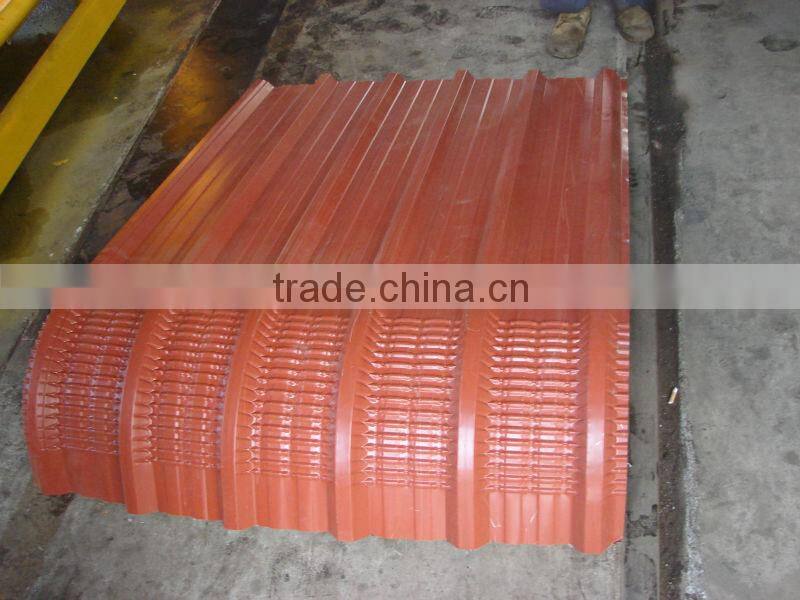

Profile of 25-190-760

1)     Wave height : 25mm

2)     Centre to centre distance between two waves : 190mm

3)     Effective width :760mm

4)     Feeding width :1000mm

5)     Thickness of formed steel : 0.3mm-0.8mm

6)     Material of coil or plate : color steel sheet

parameters of roll forming machine

(1). Material of frame : (high grade) 300mm H shape steel welding

(2).Thickness of middle plate : 20mm

(3). Step of curving roller : 7 steps

(4). Diameter of shaft (solid shaft): 70mm

(5). Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment

(6). Material of roller: 45# Steel

(7).Treatment of roller : hard chromize coated

(8). Drive type of roll forming machine : drive by hydraulic motor

(9). Bearing : 6210 (high grade)

(10). Power of main motor : 4KW

(11). Voltage : 380V/50Hz/3phase

(12). Motor power of hydraulic station : 3kw

(13). Oil pump of hydraulic station : gear oil pump (high grade)

(14). Accuracy of curving : +/- 2mm

(15). Appearance size of main forming machine : 2.1m (length)*1.3m (width) *1.2m (height)

(16). Electrically controlled system : entire machine controlled by PLC

(17). PLC: DELTA(TAIWAN)or Mitsubishi

(18). Controlling desktop : Touch screen (high grade)

(19). Electrical parts : DELIXI or CHINT

 Packaging & Shipping

Certification

Note : we can customize the design and fabrication on the particular type of machine according to the request of customer.
