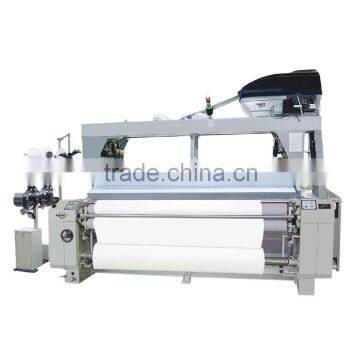

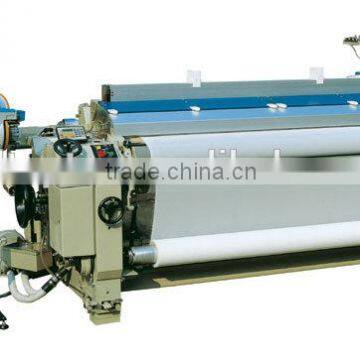

HYWL-828 Single Pump Single Nozzle Tappet Shedding Water Jet Loom
Feature :
HYWL-828 is optimizing the main component and frame structure ,improving the beating –up ,let off mechansim and take up mechanism ,installing assistant device on let off mechanism ,all of this ensure the running stably and reduce vibration and noise,increase efficiency and enlarge the weaving range
Main specifications :
Item | Specification | ||
Reed width | 135,150 ,170 ,190,210,230,260,280,300,320,340,360(cm) | ||
Useful reed width | Mominal R/S minus 2cm to 50cm | ||
Frame (structure) | Box frame type (driving section is in an oil bath ) | ||
Driving | Brake | Direct stop mechanism by an electromagnetic brake | |
Control | Push and touch button (arrange,run ,stop ,forward inching ,reverse inching ,one step reverse ) | ||
Motor | Rush start motor | ||
Motor capacity | 1.5kw, 1.8kw ,2.2 kw ,2.7kw 3.2kw ,3.7kw ,4.5kw 5.4kw | ||
Beating | Crank beating | ||
Let-off | Automatic mechanical and continuous let-off or electronic let-off | ||
Diameter 800mm beam flange ,and diameter 178mm barrel | |||
Take-up | System | Mechanical or electronic continuous take-up | |
Picks density | Normal:5-60 picks/cm ,special:4-100 picks/cm | ||
Cloth wind-updiameter | 420mm,520mm and 600mm | ||
Shedding | Cam shedding (heald frame number :2-14 )plain,twill,satin fabric | ||
Weft inseration | Measuring and storage | 300 RDP type mechanical measuring turbo blower (single nozzle) or electronic weft feeder (1-6 nozzles ) | |
Pump | Type: M,L,H. single or double | ||
Piston of pump | Ceramic piston | ||
Nozzle needle | ST20/10,ST30/10,ST45/20,SD75/40 | ||
Weft filling | one ,two ,three ,four nozzle | ||
Filling feeler | Electronic ,optical ,and self-control | ||
Selvage | Twisting by star ,planetary gears | ||
Electronical part | Main control board ,AC contactor,transformer,NC interface,selvadge break system ,waste yarn break system ,overheating and overload protection | ||
Count and display :rotational speed ,total yield ,team yield ,total efficiency,team efficiency ,cloth length auto control ,stopping analysis and display | |||
We can manufacture according to customer's requirement.
