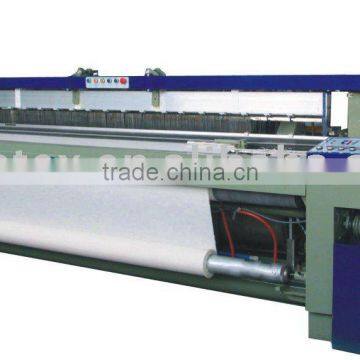

HYWL-868 WATER JET LOOM TWINS BEAM,,DOUBLE NOZZLE .ROJ FEEDER .CAN RUNNING 600RPM, WIDTH 330CM ,high speed weaving.can working more than 600rpm.
HYWL-868 is designed for high-speed, high efficiency and wider workable range of fabrics. it use double warp beam replacing one warp beam, which through full set transmit, detect, automatic adjustment, enable warp beam which has discrepancy in diameters and tension keep the same tension to let off the yarn symmetrical. It will also make the warping be the same convenience, cheaper as narrow weaving, which also make it simply as narrow looms. The quality and the efficacy be higher for weaving fabric, and also could be make double breadth weaving.
Specifications:
Reed width: 170, 190, 210, 230cm
Filling insertion rate: 2280m/min max.
HeaLd frame:
Plain shedding: 8pcs max.
Dobby shedding: 16pcs max.
Power: 2.8, 3.5, 4.5kW
Weft density: 5 ~ 60picks/cm
Design Speed: 1200rpm max.( really speed depend on the fabric specification )
Kind of Yarn Apply:
Nylon-6 filament; Nylon-6 non-sizing ;Polyester filament ; Polyester draw textured ;Polyester spun yarn; Polyester high twisting yarn; Polyester POY; Polyester non-sizing filament; O.P. yarn; Taslon yarn
