Fiberglass electric railhigh quality
reasonable price

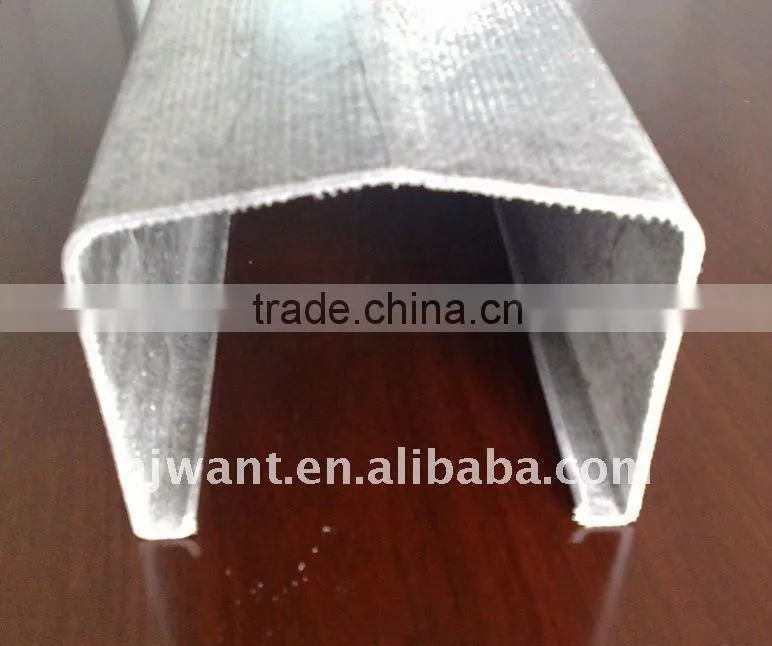

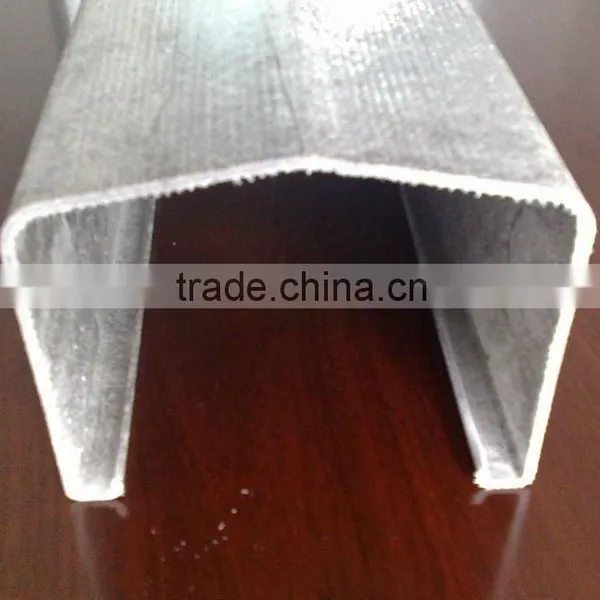

Fiberglass WANT FRP Electric Rail Covers are made of WANT high quality pultruded profiles which are assembled above the electric rail of underground railway to protect people from electric shock. The advantage of WANT pultruded profiles:
- Corrosion Resistant
- Light Weight,High Strength and Impact & Fatigue Resistant.
- Non-Conductive & Non-Magnetic
- Maintenance Free
- Fire Retardant
- Dimensional Stability
- Easy Assembly
The Properties of WANT Profile Series
Property |
Test Method |
Units |
Mean-Value LW/CW |
Tensile Strength |
ASTM D638/GB1447-83 |
Mpa |
210/75 |
Tensile Modulus |
ASTM D638/GB1447-83 |
Gpa |
22/10 |
Flexural Strength |
ASTM D790/GB1449-83 |
Mpa |
302/76 |
Flexural Modulus |
ASTM D790/GB1449-83 |
Gpa |
18.6/7.2 |
Compressive Strength |
ASTM D695/GB1448-83 |
Mpa |
258/98 |
Compressive Modulus |
ASTM D695/GB1448-83 |
Gpa |
19.2/7.2 |
Interlaminar Shear(LW) |
ASTM D2344/GBT3357-82 |
Mpa |
24.5 |
Charpy Impact Strength |
ISO 179/GB1451-83 |
KJ/m2 |
279 |
Barcol Hardness |
ASTM D2583 |
- |
50 |
Elongation to Break |
ASTM D638/GB1447-83 |
% |
0.9 |
Water Absorption(max.) |
ASTM D570/GB1462 |
% |
0.57 |
Density |
ASTM D792 |
g/cm3 |
1.8 |
Coefficient of Thermal Expansion |
ASTM D696/GB2572-82 |
10-6/ |
5.1 |
|
UL94/GB8924-88 |
- |
VO (32) |
Tunnel Test |
ASTM E-84 |
- |
25 Max. |
|
ASTM D635 |
- |
|
Arc Resistance(LW) |
ASTM D495/ GB1411-78 |
S |
120 |
Dielectric Constant(PF) |
ASTM D150/ GB1409-79 |
60Hz |
5 |
Dielectric Strength(PF) |
ASTM D149/ GB1408-78 |
KV/mm |
8 |
Dielectric Strength(LW) |
ASTM D149/ GB1408-78 |
KV/mm |
1.6 |
Surface Resistance |
ASTM D257/GB1410-78 |
Ω |
1015 1012 |
Volume Resistance |
ASTM D257/GB1410-78 |
Ω.cm |
1015 1012 |
Remarks: | |||
