Home > Products > New Products > Factory Outlet High Quality Fiberglass Square Tube
Factory Outlet High Quality Fiberglass Square Tube
- Shanghai/Nanjing
 - T/T

You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | WANT | |
| Model Number | WANT | Application | as customers'needs | |
| Surface Treatment | coated resin | Technique | pultrusion | |
| Dimensions | customized |
Product Description
Specifications

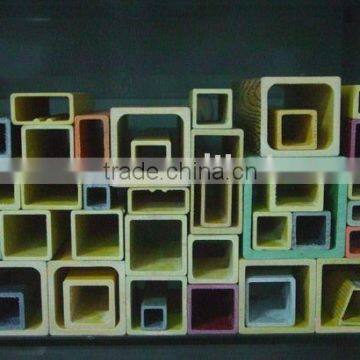

fiberglass square tubeLight weight
Water proof
Corrosion free
UV resistant
factory outlet fiberglass square tube
The Raw Materials of WANT Pultruded Profiles
For services in different extreme environments, WANT provides a number of choices for rovings, mats, resin and others to meet customer's demands. Both orthophthalic and isophthalic polyester resin are most commonly used, whilst vinyl ester resins are also available upon request. We can provide profiles of various shapes and colors with alternative options for various mats, veils, as well as other additives for different application.
The Advantage of WANT Pultruded Profiles
- Corrosion Resistant
 - Light Weight,High Strength and Impact & Fatigue Resistant.
 - Non-Conductive & Non-Magnetic
 - Maintenance Free
 - Fire Retardant
 - Dimensional Stability
 - Easy Assembly

The Properties of WANT Series
Property  | Test Method  | Units  | Mean-Value LW/CW  |
Tensile Strength  | ASTM D638/GB1447-83  | Mpa  | 210/75  |
Tensile Modulus  | ASTM D638/GB1447-83  | Gpa  | 22/10  |
Flexural Strength  | ASTM D790/GB1449-83  | Mpa  | 302/76  |
Flexural Modulus  | ASTM D790/GB1449-83  | Gpa  | 18.6/7.2  |
Compressive Strength  | ASTM D695/GB1448-83  | Mpa  | 258/98  |
Compressive Modulus  | ASTM D695/GB1448-83  | Gpa  | 19.2/7.2  |
Interlaminar Shear(LW)  | ASTM D2344/GBT3357-82  | Mpa  | 24.5  |
Charpy Impact Strength  | ISO 179/GB1451-83  | KJ/m2  | 279  |
Barcol Hardness  | ASTM D2583  | -  | 50  |
Elongation to Break  | ASTM D638/GB1447-83  | %  | 0.9  |
Water Absorption(max.)  | ASTM D570/GB1462  | %  | 0.57  |
Density  | ASTM D792  | g/cm3  | 1.8  |
Coefficient of Thermal Expansion  | ASTM D696/GB2572-82  | 10-6/  | 5.1  |
  | UL94/GB8924-88  | -  | VO (32)  |
Tunnel Test  | ASTM E-84  | -  | 25 Max.  |
  | ASTM D635  | -  |
  |
Arc Resistance(LW)  | ASTM D495/ GB1411-78  | S  | 120  |
Dielectric Constant(PF)  | ASTM D150/ GB1409-79  | 60Hz  | 5  |
Dielectric Strength(PF)  | ASTM D149/ GB1408-78  | KV/mm  | 8  |
Dielectric Strength(LW)  | ASTM D149/ GB1408-78  | KV/mm  | 1.6  |
Surface Resistance  | ASTM D257/GB1410-78  | Ω  | 1015 1012  |
Volume Resistance  | ASTM D257/GB1410-78  | Ω.cm  | 1015 1012  |
Remarks:  | |||
