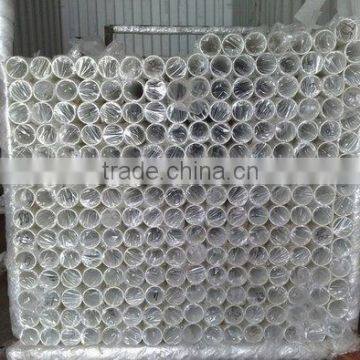

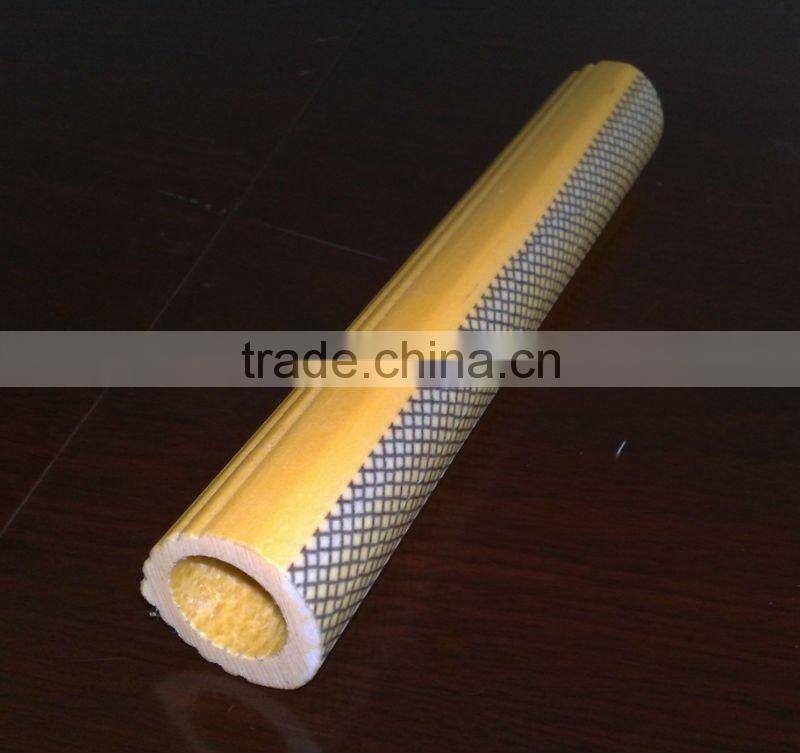

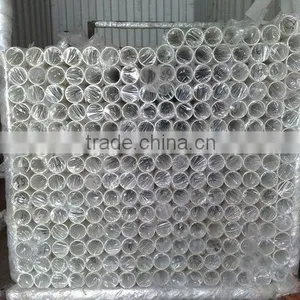

GOOD QUALITY FIBERGLASS PIPE

FOB Price

Negotiable / Meter

5000 Meters(Min. Order)

Port SHANGHAI/NANJING
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	WANT
Model Number	W24*3 .	Application	IN MANY AREAS
Surface Treatment	COATED RESIN	Technique	PULTRUSION
Dimensions	24*3

Product Description

Specifications

WANT FIBERGLASS PIPE
LIGHT WEIGHT
GOOD QUALITY

WANT FIBERGLASS PIPE

The Raw Materials of WANT Pultruded Profiles

For services in different extreme environments, WANT provides a number of choices for rovings, mats, resin and others to meet customer's demands. Both orthophthalic and isophthalic polyester resin are most commonly used, whilst vinyl ester resins are also available upon request. We can provide profiles of various shapes and colors with alternative options for various mats, veils, as well as other additives for different application.

The Advantage of WANT Pultruded Profiles

Corrosion Resistant
Light Weight,High Strength and Impact & Fatigue Resistant.
Non-Conductive & Non-Magnetic
Maintenance Free
Fire Retardant
Dimensional Stability
Easy Assembly

The Properties of WANT Series

Property	Test Method	Units	Mean-Value LW/CW
Tensile Strength	ASTM D638/GB1447-83	Mpa	210/75
Tensile Modulus	ASTM D638/GB1447-83	Gpa	22/10
Flexural Strength	ASTM D790/GB1449-83	Mpa	302/76
Flexural Modulus	ASTM D790/GB1449-83	Gpa	18.6/7.2
Compressive Strength	ASTM D695/GB1448-83	Mpa	258/98
Compressive Modulus	ASTM D695/GB1448-83	Gpa	19.2/7.2
Interlaminar Shear(LW)	ASTM D2344/GBT3357-82	Mpa	24.5
Charpy Impact Strength	ISO 179/GB1451-83	KJ/m²	279
Barcol Hardness	ASTM D2583	-	50
Elongation to Break	ASTM D638/GB1447-83	%	0.9
Water Absorption(max.)	ASTM D570/GB1462	%	0.57
Density	ASTM D792	g/cm³	1.8
Coefficient of Thermal Expansion	ASTM D696/GB2572-82	10^-6/	5.1
Flammability Classification	UL94/GB8924-88	-	VO (32)
Tunnel Test	ASTM E-84	-	25 Max.
Flammability Extinguishing	ASTM D635	-	Self extinguishing
Arc Resistance(LW)	ASTM D495/ GB1411-78	S	120
Dielectric Constant(PF)	ASTM D150/ GB1409-79	60Hz	5
Dielectric Strength(PF)	ASTM D149/ GB1408-78	KV/mm	8
Dielectric Strength(LW)	ASTM D149/ GB1408-78	KV/mm	1.6
Surface Resistance	ASTM D257/GB1410-78	Ω	10¹⁵ 10¹²
Volume Resistance	ASTM D257/GB1410-78	Ω.cm	10¹⁵ 10¹²
Remarks: LW =lengthwise CW = crosswise PF =perpendicular to laminate face
