Help CenterFlexible Corrugated Conduit Tube With Big Diameter Bellows and Bellows Assembly
Related Products
-
Non-standard Hydraulic Compensator Expansion JointUS$ 1 - 100MOQ: 100 Pieces -
High Quality Stainless Steel Expansion Joint and Compensator BellowsUS$ 1 - 100MOQ: 100 Pieces
-
Stainless Steel Hose BellowUS$ 1 - 100MOQ: 100 Pieces
-
Hydraulic Bellow Hose Assembly CustomizedUS$ 1 - 100MOQ: 100 Pieces
-
Hose Rotating Connector Bellows Bellows Assembly With High Quality and Reasonable PriceUS$ 1 - 100MOQ: 100 Pieces

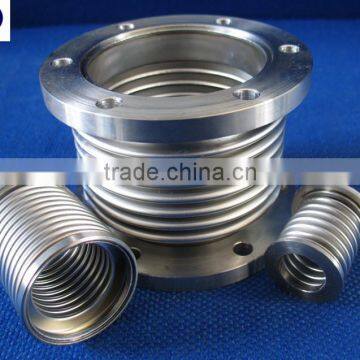

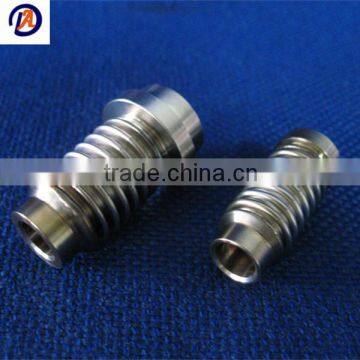

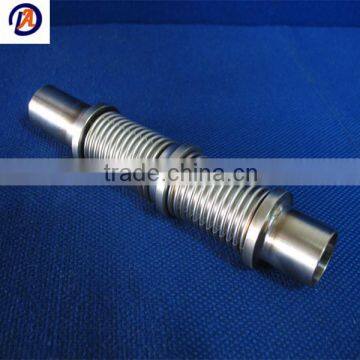

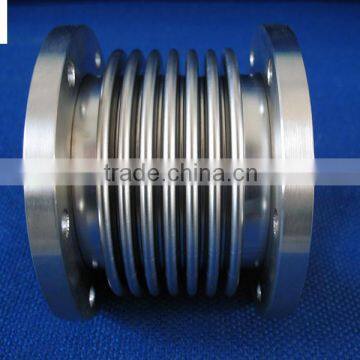

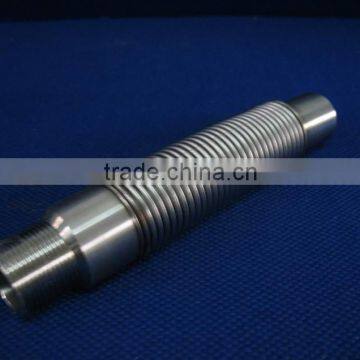

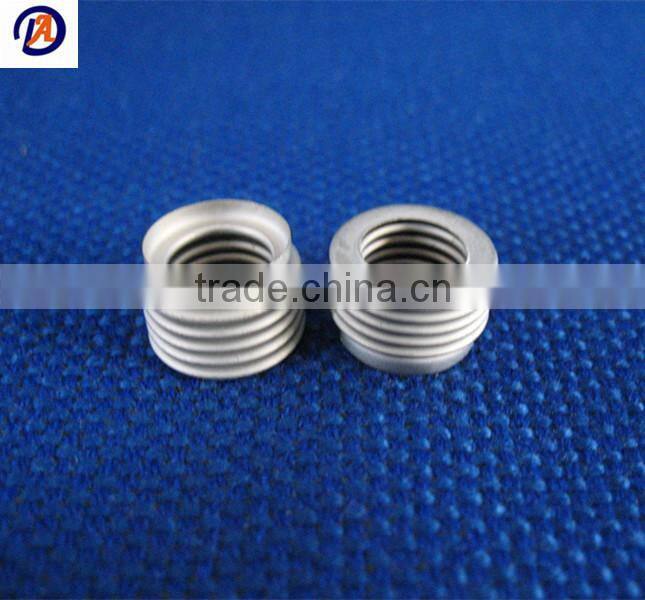

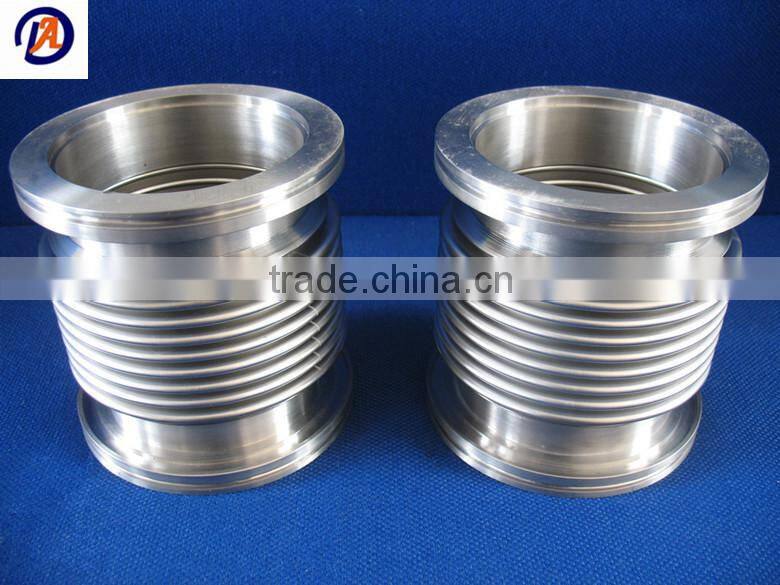

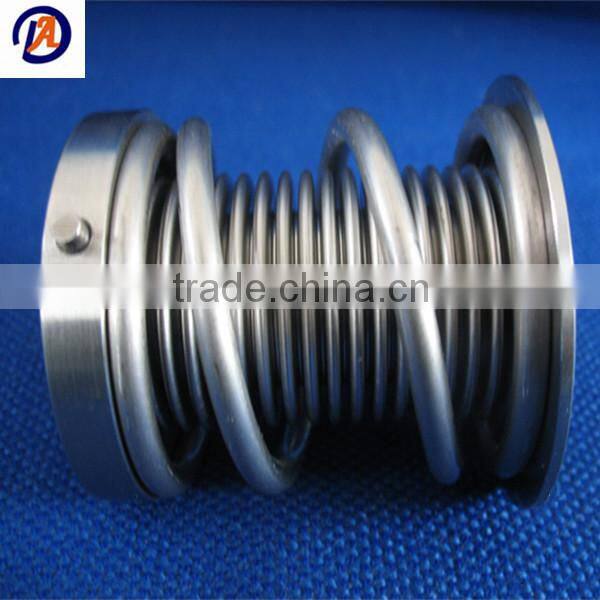

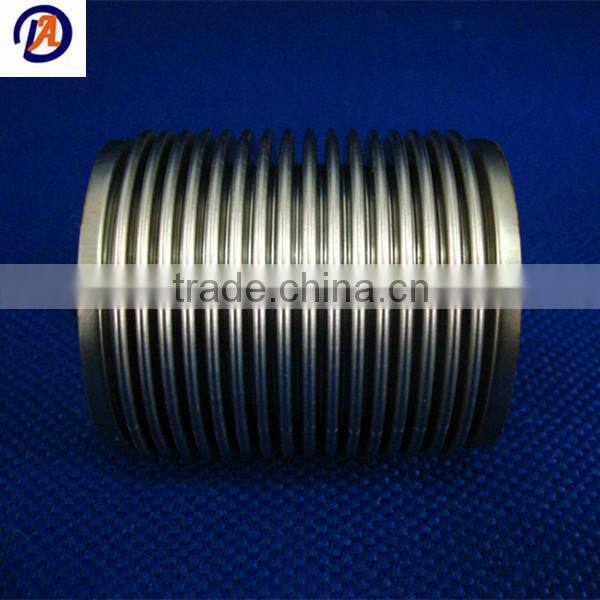

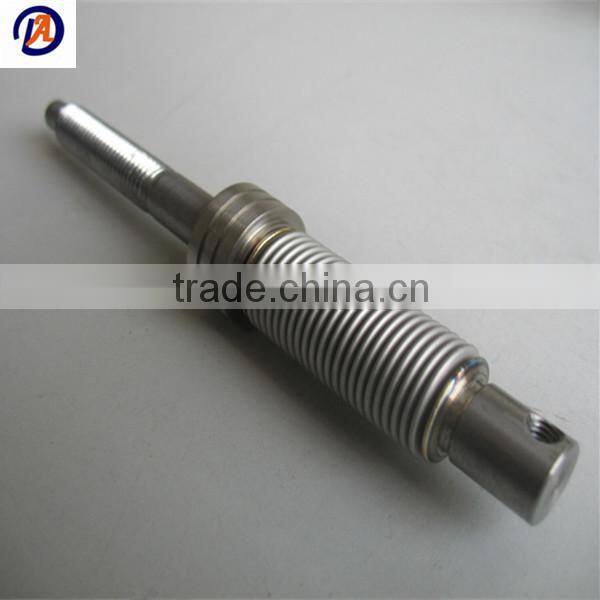

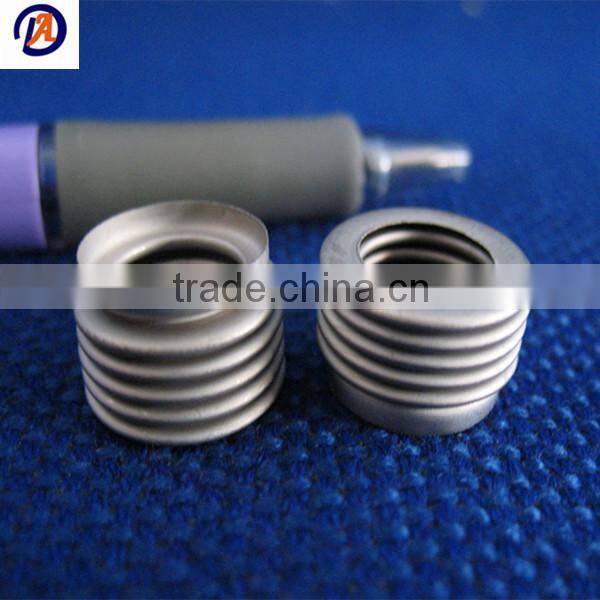

Bellows Products Display:
Bellows Quality Certification:

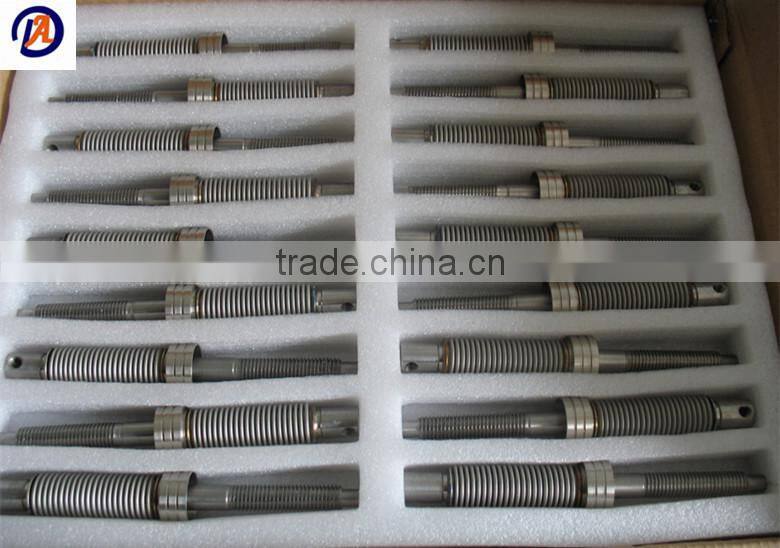

Bellows Packing And Delivery:
Way to Our Company (From ShangHai to NanJin)

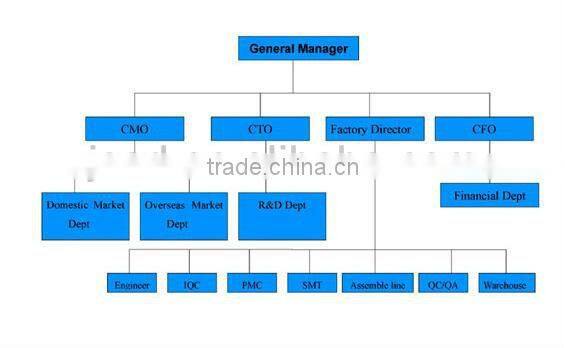

Bellows Company Structure:
Bellows Specification Data Sheet:
specifications |
I.D |
O.D |
Wall thickness |
Compression ratio |
Corrugated distance |
Existing material |
DN10 |
10 |
15 |
0.12 |
45 |
1.8 |
304 |
DN12 |
12 |
20 |
0.12 |
45 |
2 |
304 |
DN14 |
14 |
22 |
0.12 |
45 |
2.2 |
304 and 316L |
DN15 |
15 |
23 |
0.15 |
45 |
2.2 |
316L |
DN16 |
16 |
25 |
0.15 |
45 |
2.3 |
304 |
DN18 |
18 |
28 |
0.12 |
45 |
2.6 |
304 |
0.15 |
316L |
|||||
DN22 |
22 |
32 |
0.15 |
45 |
3 |
304 and 316L |
DN25 |
25 |
38 |
0.15 |
45 |
3 |
304 |
0.13 |
316L |
|||||
DN28 |
28 |
40 |
0.12 |
45 |
3.2 |
304 |
0.15 |
316L |
|||||
DN32 |
32 |
45 |
0.15 |
45 |
3.4 |
304 and 316L |
DN35 |
35 |
50 |
0.15 |
45 |
3.5 |
304 and 316L |
DN38 |
38 |
55 |
0.15 |
45 |
3.8 |
304 and 316L |
DN40 |
40 |
60 |
0.2 |
45 |
3.8 |
304 |
DN42 |
42 |
60 |
0.15 |
45 |
4.4 |
304 |
DN45 |
45 |
65 |
0.15 |
45 |
4.5 |
304 |
DN48 |
48 |
66 |
0.2 |
45 |
4.5 |
316L |
DN50 |
50 |
70 |
0.2 |
45 |
5 |
304 and 316L |
DN60 |
60 |
80 |
0.18 |
45 |
5.5 |
304 |
DN65 |
65 |
89 |
0.3 |
45 |
5.7 |
304 |
0.2 |
316L |
|||||
DN75 |
75 |
100 |
0.3 |
30 |
6 |
304 |
DN80 |
80 |
105 |
0.3 |
30 |
7 |
304 and 316L |
DN90 |
90 |
115 |
0.3 |
30 |
6.5 |
304 |
Welcome to Our Company and discuss with us.
Thank you for your Attention!
