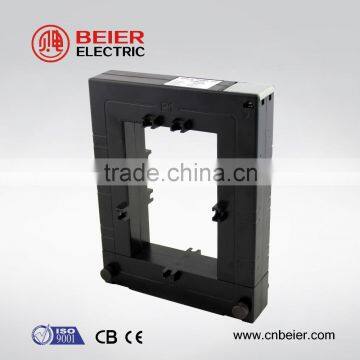

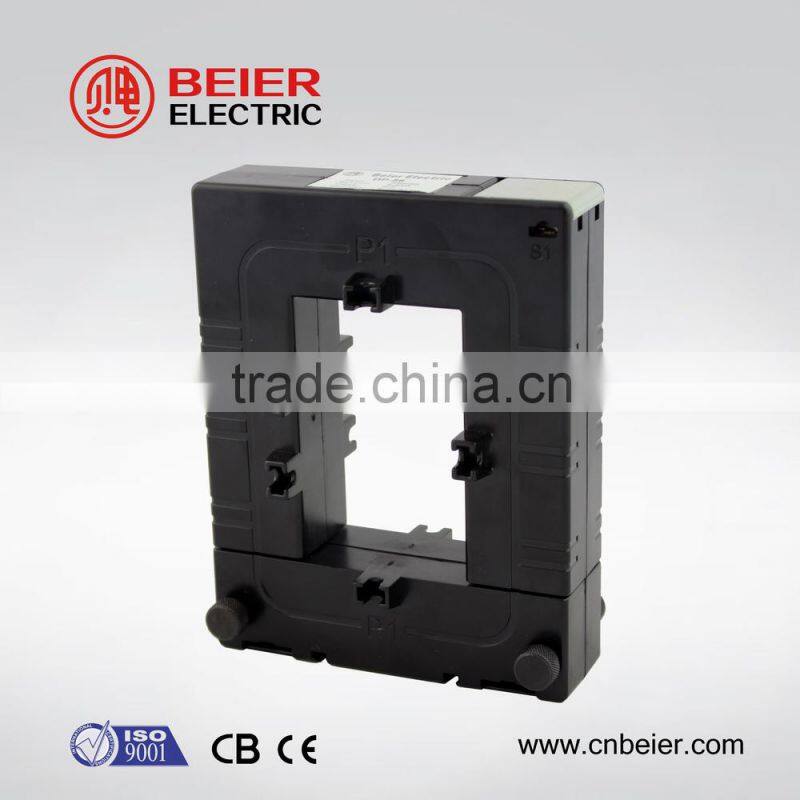

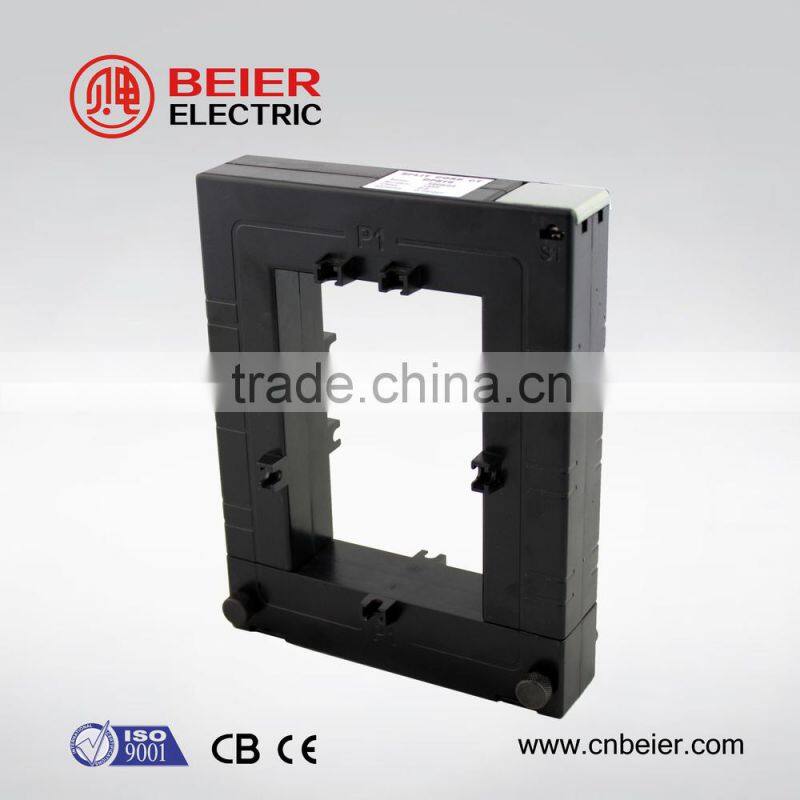

Split Core Current Transformer With ISO Approval
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Beier
Model Number:
DP Series
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SPLIT CORE CURRENT TRANSFORMERNegotiableMOQ: 1 Piece -
Flameproof Exd Explosion-proof Lamp 250WNegotiableMOQ: 1 Piece
-
Flameproof Exd Explosion-proof LampNegotiableMOQ: 1 Piece
-
From 100W To 400W IP65 LED Flameproof Explosion-Proof LampNegotiableMOQ: 1 Piece
-
CBB56-250W Flameproof Explosion-proof LampUS$ 17.42 - 17.42MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
Beier
Model Number
DP Series
split core current transformer with ISO approval
Company Information
Feature
Specifications
Standard adopted: IEC44-1, BS7626;
Primary current: 100A~5000A;
Secondary current: 1A or 5A;
Rated burden: 1.5VA~30VA;
Accuracy class: 0.5, 1.0 or 3.0 for small current;
Maxi-voltage: 0.72kV/3KV;
Frenquency: 50/60Hz;
Short time thermal current: Ith=100xIn;
Security coefficient: FS<5
Technical data
| Model | Rated Ratio | Rated Burden(VA) | Weight(Kg) |
||
| Class 0.5 | Class 1.0 | Class 3.0 | |||
| DP-23 | 100/5A | - | - | 1.5 | 0.88 |
| 150/5A | - | - | 2 | ||
| 200/5A | - | 1.5 | 2.5 | ||
| 250/5A | - | 1.5 | 3.75 | ||
| 300/5A | 1.5 | 3.75 | 5 | ||
| 400/5A | 2.5 | 5 | 10 | ||
| DP-58 | 250/5A | 1 | 1.5 | 3.75 | 0.98 |
| 300/5A | 1.5 | 2.5 | 5 | ||
| 400/5A | 2.5 | 3 | 10 | ||
| 500/5A | 2.5 | 5 | 15 | ||
| 600/5A | 2.5 | 5 | 17.5 | ||
| 750/5A | 2.5 | 5 | 18 | ||
| 800/5A | 2.5 | 7.5 | 18 | ||
| 1000/5A | 5 | 10 | 20 | ||
| DP-88 | 250/5A | 1 | 2 | 4 | 1.10 |
| 300/5A | 1.5 | 2.5 | 5 | ||
| 400/5A | 1.5 | 2.5 | 5 | ||
| 500/5A | 2.5 | 5 | 15 | ||
| 600/5A | 2.5 | 5 | 17.5 | ||
| 750/5A | 2.5 | 5 | 18 | ||
| 800/5A | 2.5 | 7.5 | 18 | ||
| 1000/5A | 5 | 10 | 20 | ||
| DP-812 | 500/5A | - | 4 | 12.5 | 1.20 |
| 600/5A | - | 5 | 15 | ||
| 750/5A | 2.5 | 6 | 17.5 | ||
| 800/5A | 2.5 | 7.5 | 18 | ||
| 1000/5A | 5 | 10 | 20 | ||
| 1200/5A | 5 | 12.5 | 24 | ||
| 1250/5A | 7.5 | 15 | 28 | ||
| 1500/5A | 7.5 | 17 | 30 | ||
| DP-816 | 1000/5A | 10 | 15 | 20 | 3.26 |
| 1500/5A | 15 | 20 | 25 | ||
| 2000/5A | 15 | 20 | 25 | ||
| 2500/5A | 15 | 20 | 25 | ||
| 3000/5A | 20 | 25 | 30 | ||
| 4000/5A | 20 | 25 | 30 | ||
| 5000/5A | 20 | 25 | 30 | ||

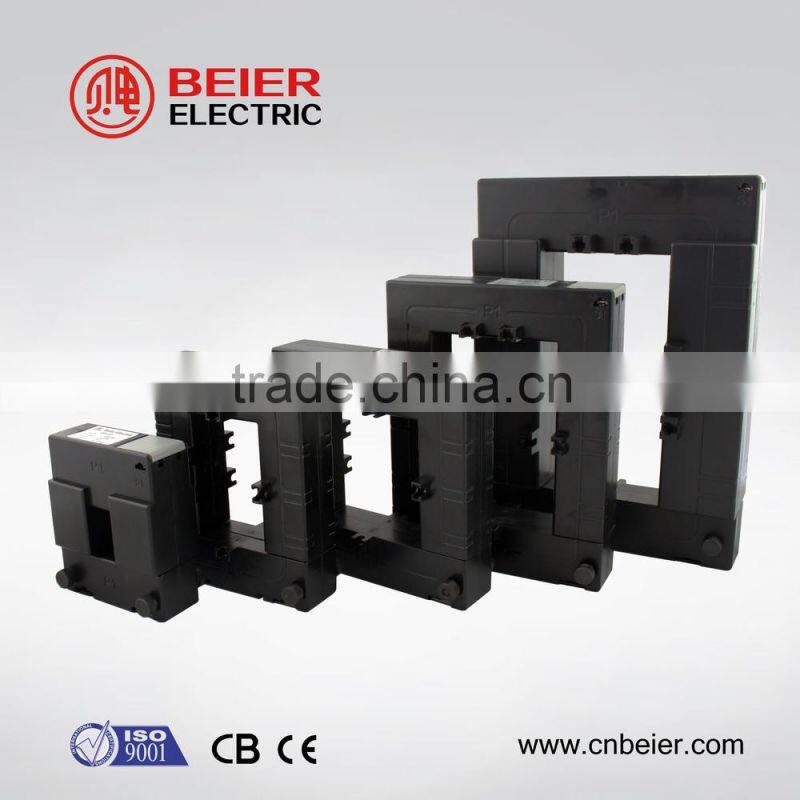

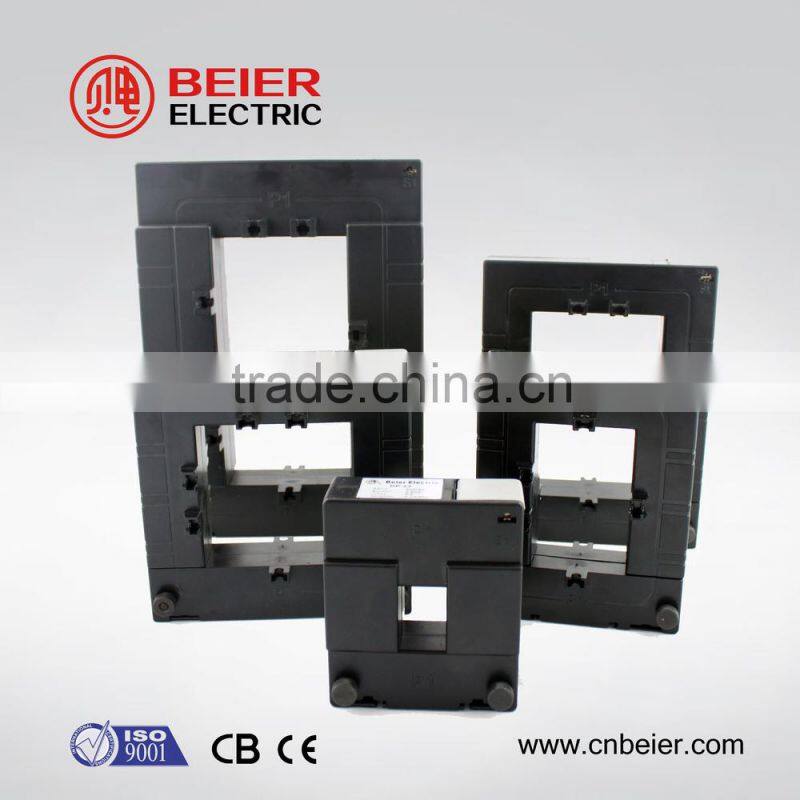

Models

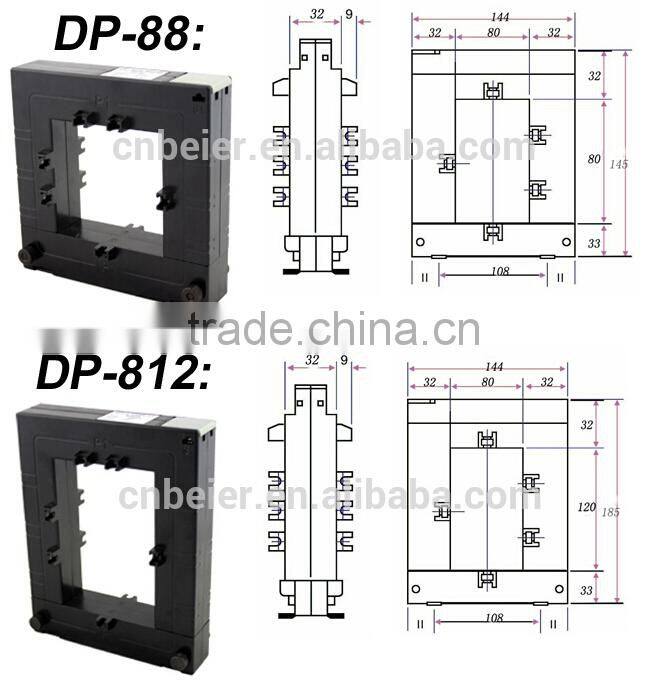

Detailed Images

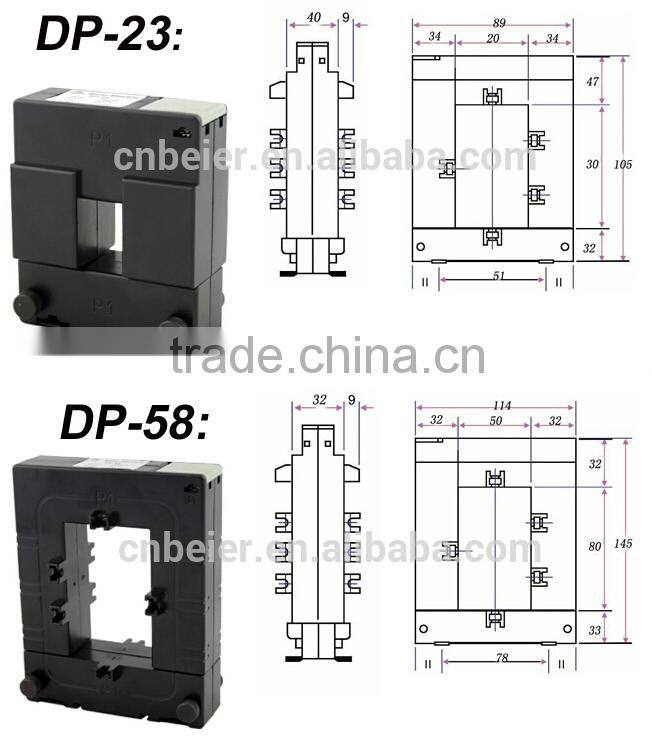

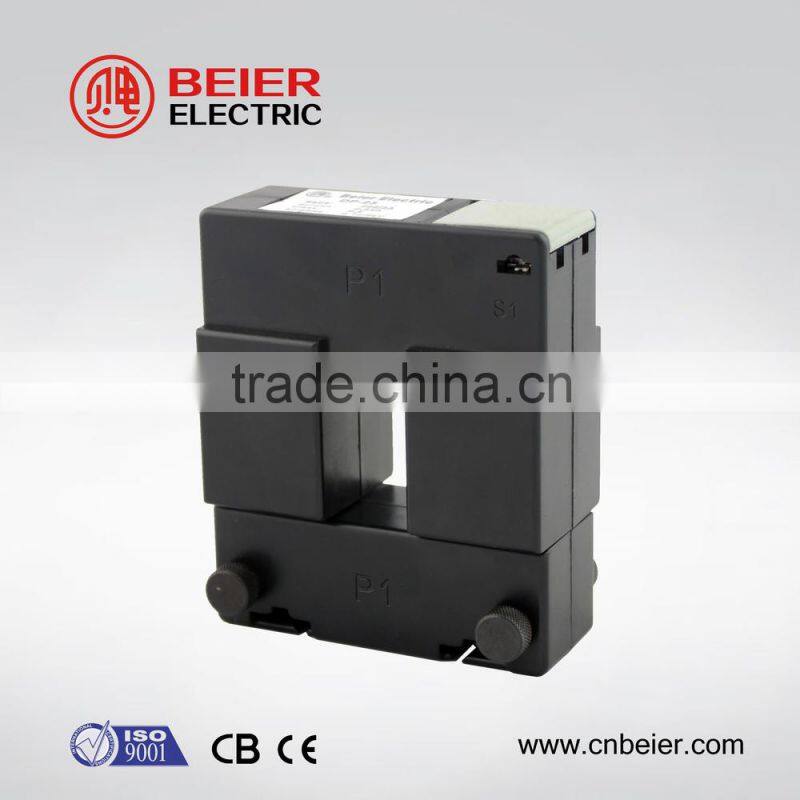

DP-23:
DP-58:
DP-812:

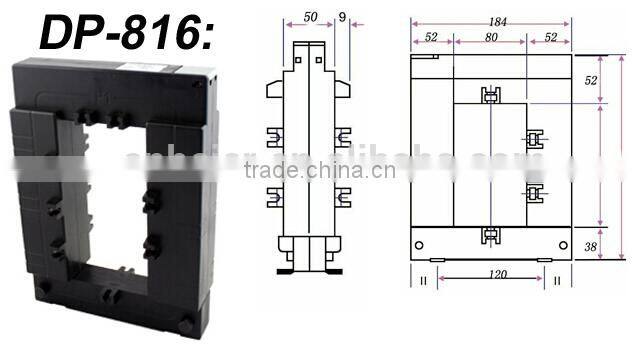

DP-816:

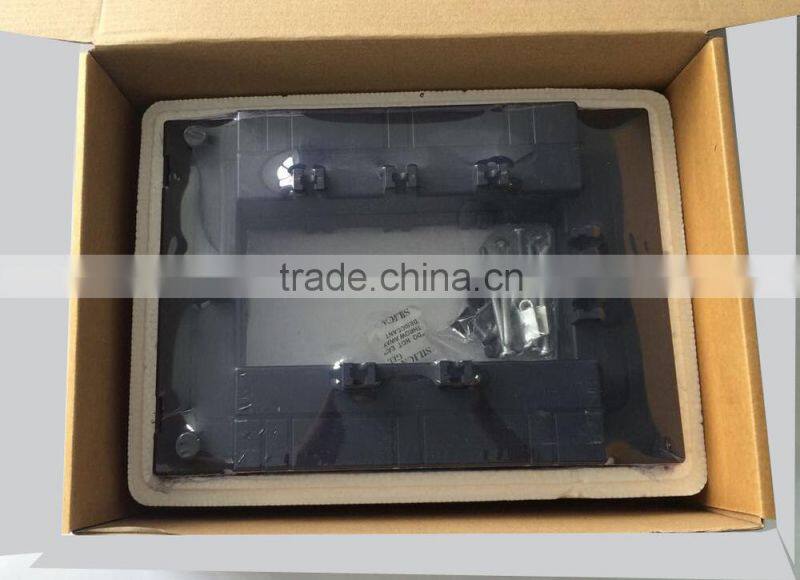

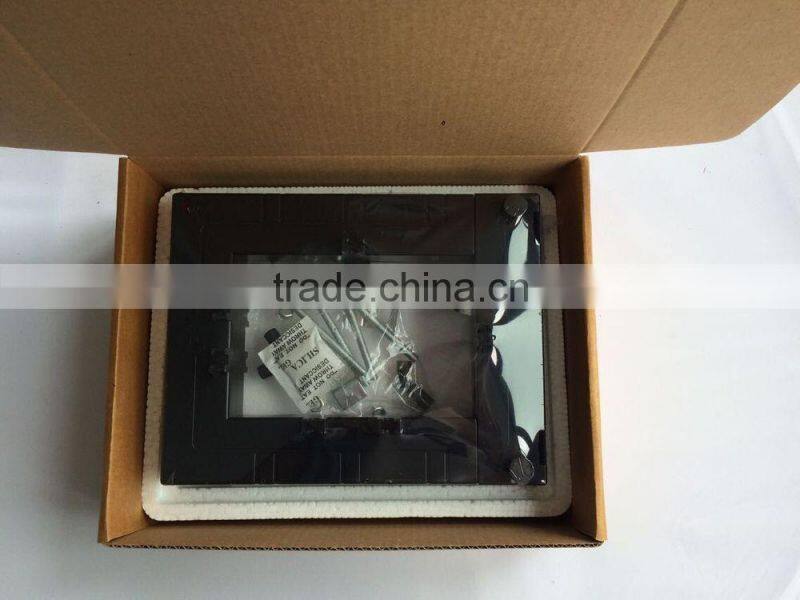

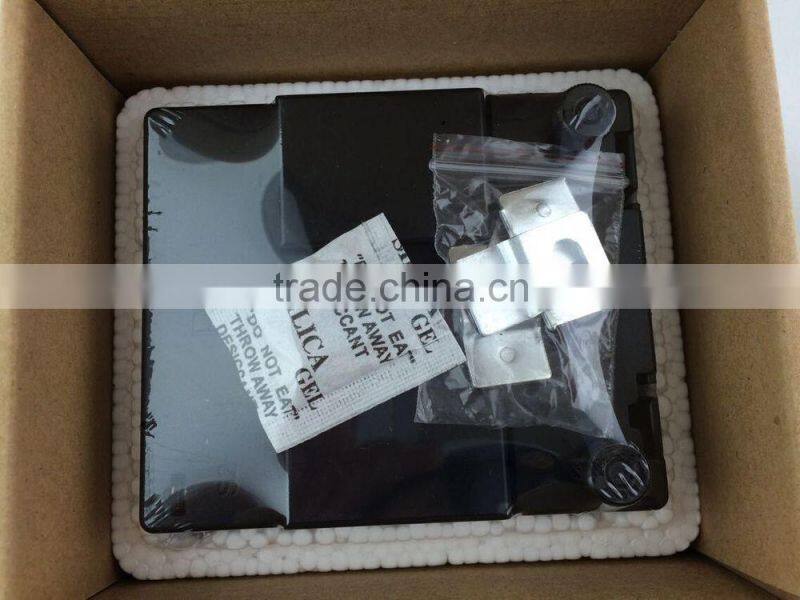

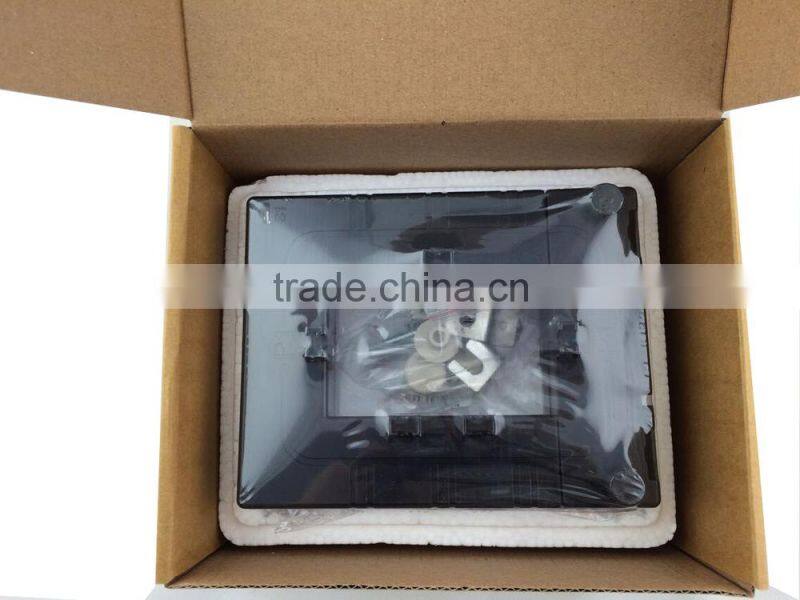

note: plastics foam is used to help protect CTs during shipment.
