Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > SPLIT CORE CURRENT TRANSFORMER

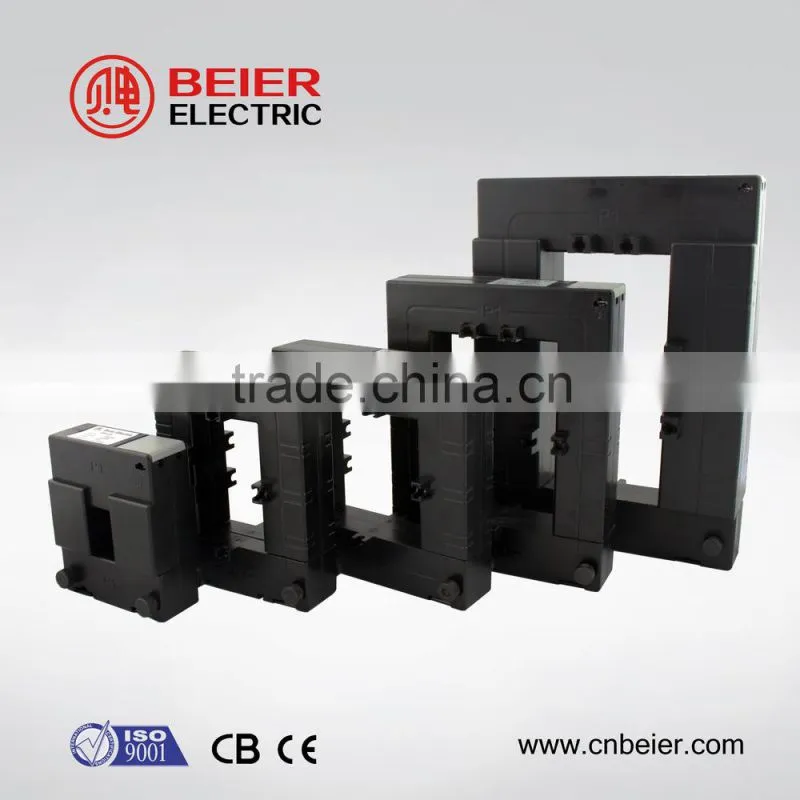

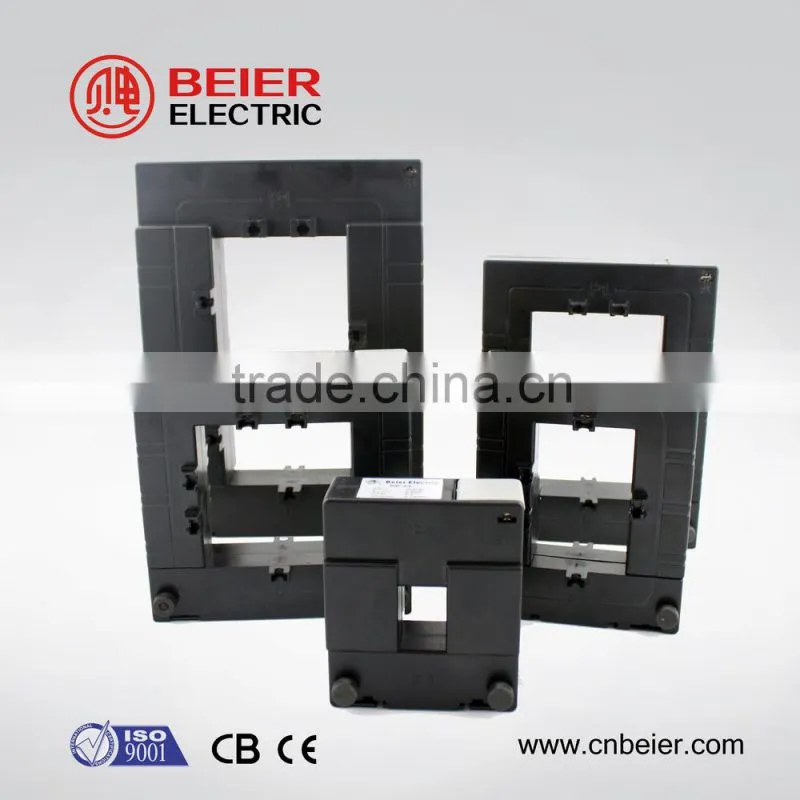

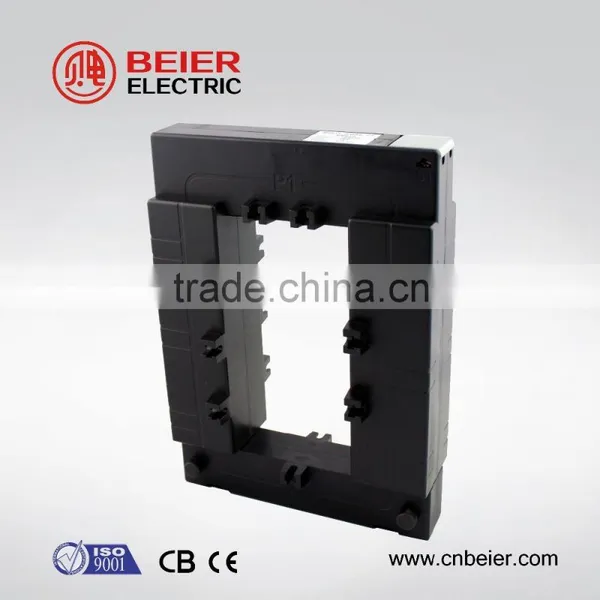

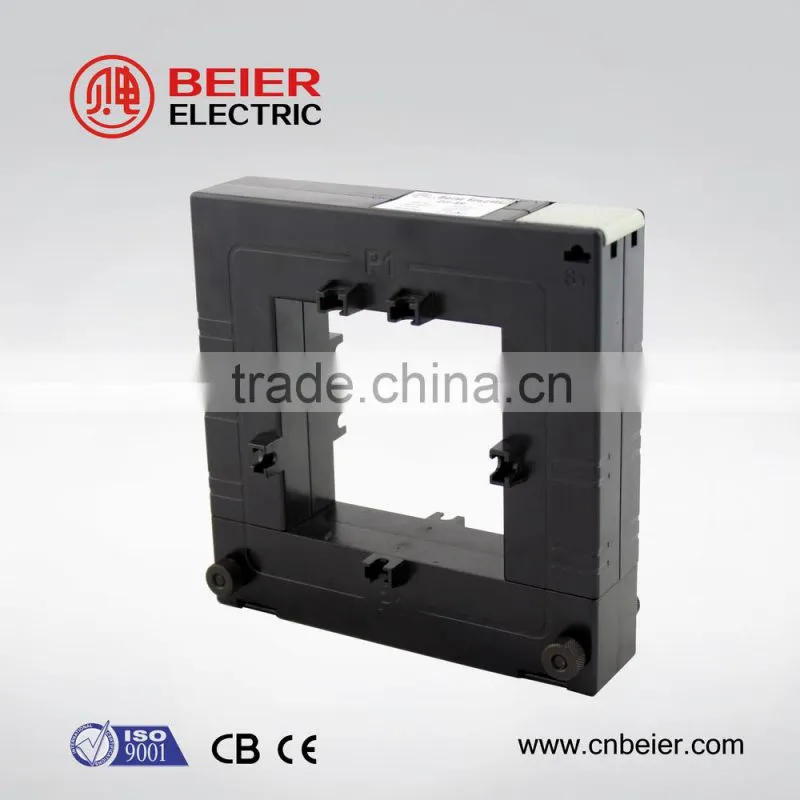

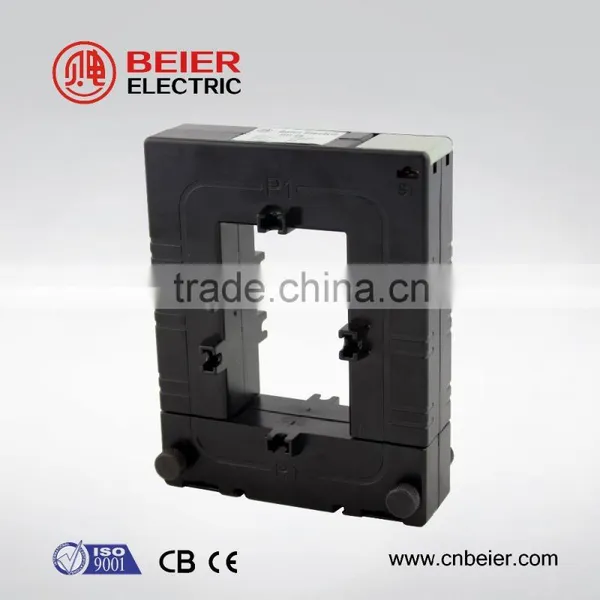

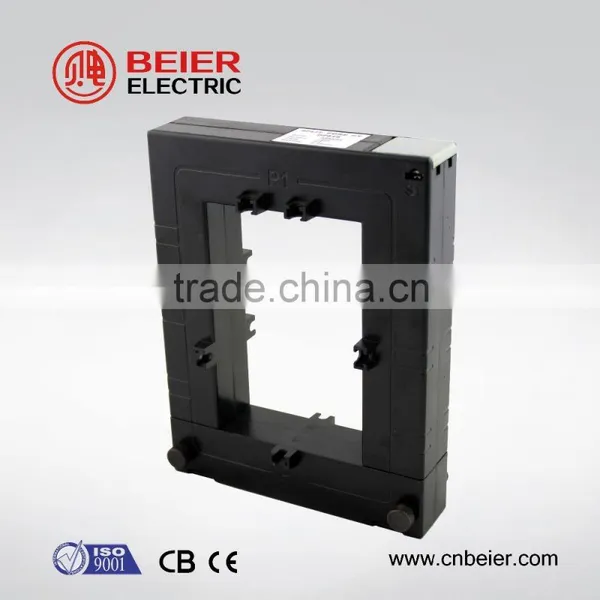

SPLIT CORE CURRENT TRANSFORMER
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Beier
Model Number:
DP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flameproof Exd Explosion-proof Lamp 250WNegotiableMOQ: 1 Piece -
Flameproof Exd Explosion-proof LampNegotiableMOQ: 1 Piece
-
From 100W To 400W IP65 LED Flameproof Explosion-Proof LampNegotiableMOQ: 1 Piece
-
CBB56-250W Flameproof Explosion-proof LampUS$ 17.42 - 17.42MOQ: 10 Pieces
-
Flameproof Explosion-proof LampUS$ 13.31 - 13.31MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
Beier
Model Number
DP
Usage
Instrument
Phase
Other
Coil Structure
Toroidal
Coil Number
Autotransformer
Company Information
Feature

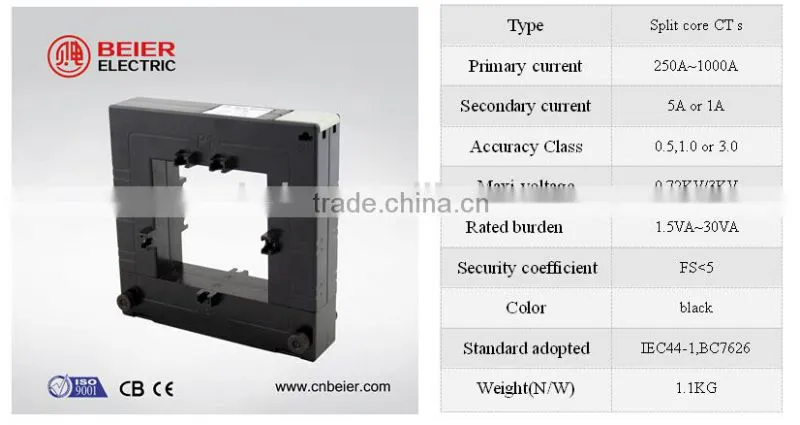

Specifications
Technical data
| Model | Rated Ratio | Rated Burden(VA) | Weight(Kg) |
||
| Class 0.5 | Class 1.0 | Class 3.0 | |||
| DP-23 | 100/5A | - | - | 1.5 | 0.88 |
| 150/5A | - | - | 2 | ||
| 200/5A | - | 1.5 | 2.5 | ||
| 250/5A | - | 1.5 | 3.75 | ||
| 300/5A | 1.5 | 3.75 | 5 | ||
| 400/5A | 2.5 | 5 | 10 | ||
| DP-58 | 250/5A | 1 | 1.5 | 3.75 | 0.98 |
| 300/5A | 1.5 | 2.5 | 5 | ||
| 400/5A | 2.5 | 3 | 10 | ||
| 500/5A | 2.5 | 5 | 15 | ||
| 600/5A | 2.5 | 5 | 17.5 | ||
| 750/5A | 2.5 | 5 | 18 | ||
| 800/5A | 2.5 | 7.5 | 18 | ||
| 1000/5A | 5 | 10 | 20 | ||
| DP-88 | 250/5A | 1 | 2 | 4 | 1.10 |
| 300/5A | 1.5 | 2.5 | 5 | ||
| 400/5A | 1.5 | 2.5 | 5 | ||
| 500/5A | 2.5 | 5 | 15 | ||
| 600/5A | 2.5 | 5 | 17.5 | ||
| 750/5A | 2.5 | 5 | 18 | ||
| 800/5A | 2.5 | 7.5 | 18 | ||
| 1000/5A | 5 | 10 | 20 | ||
| DP-812 | 500/5A | - | 4 | 12.5 | 1.20 |
| 600/5A | - | 5 | 15 | ||
| 750/5A | 2.5 | 6 | 17.5 | ||
| 800/5A | 2.5 | 7.5 | 18 | ||
| 1000/5A | 5 | 10 | 20 | ||
| 1200/5A | 5 | 12.5 | 24 | ||
| 1250/5A | 7.5 | 15 | 28 | ||
| 1500/5A | 7.5 | 17 | 30 | ||
| DP-816 | 1000/5A | 10 | 15 | 20 | 3.26 |
| 1500/5A | 15 | 20 | 25 | ||
| 2000/5A | 15 | 20 | 25 | ||
| 2500/5A | 15 | 20 | 25 | ||
| 3000/5A | 20 | 25 | 30 | ||
| 4000/5A | 20 | 25 | 30 | ||
| 5000/5A | 20 | 25 | 30 | ||
Model
Certifications
Contact Us
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
3,000-5,000 square meters
Total Employees
51 - 100 People
