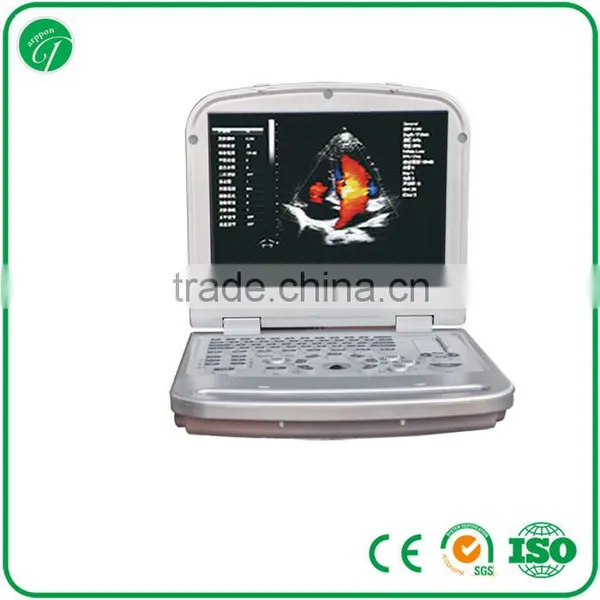

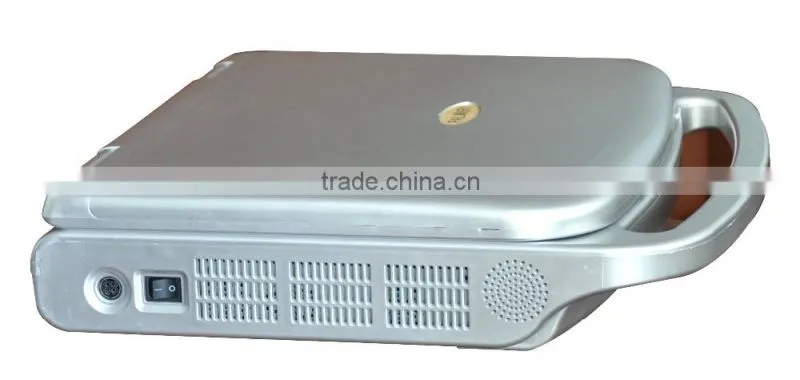

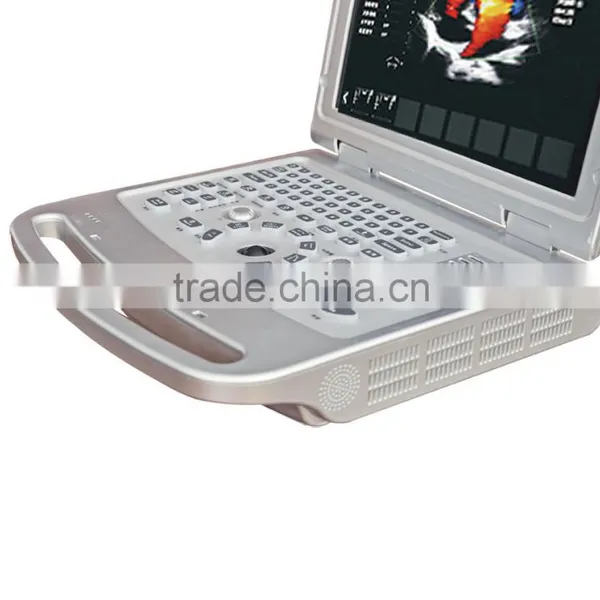

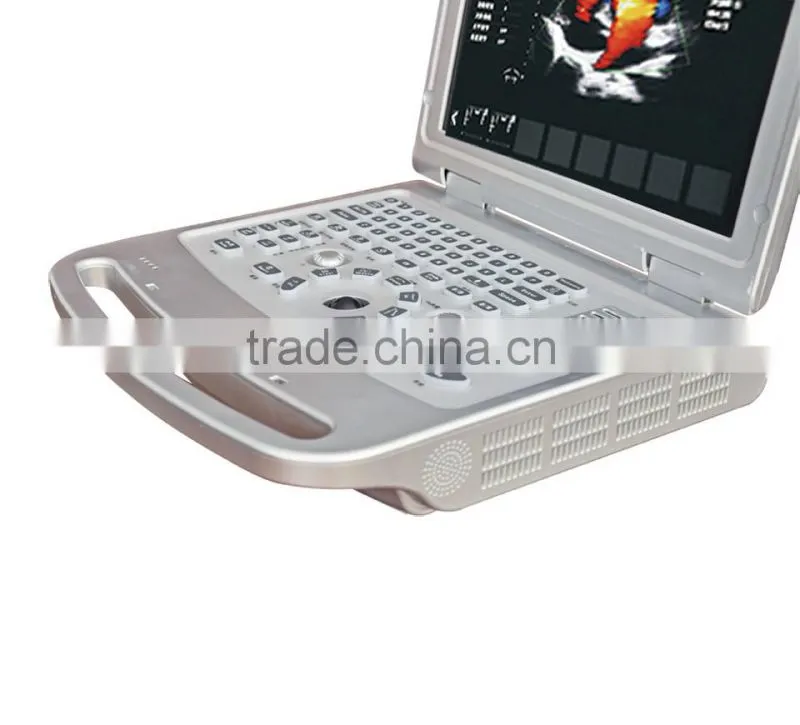

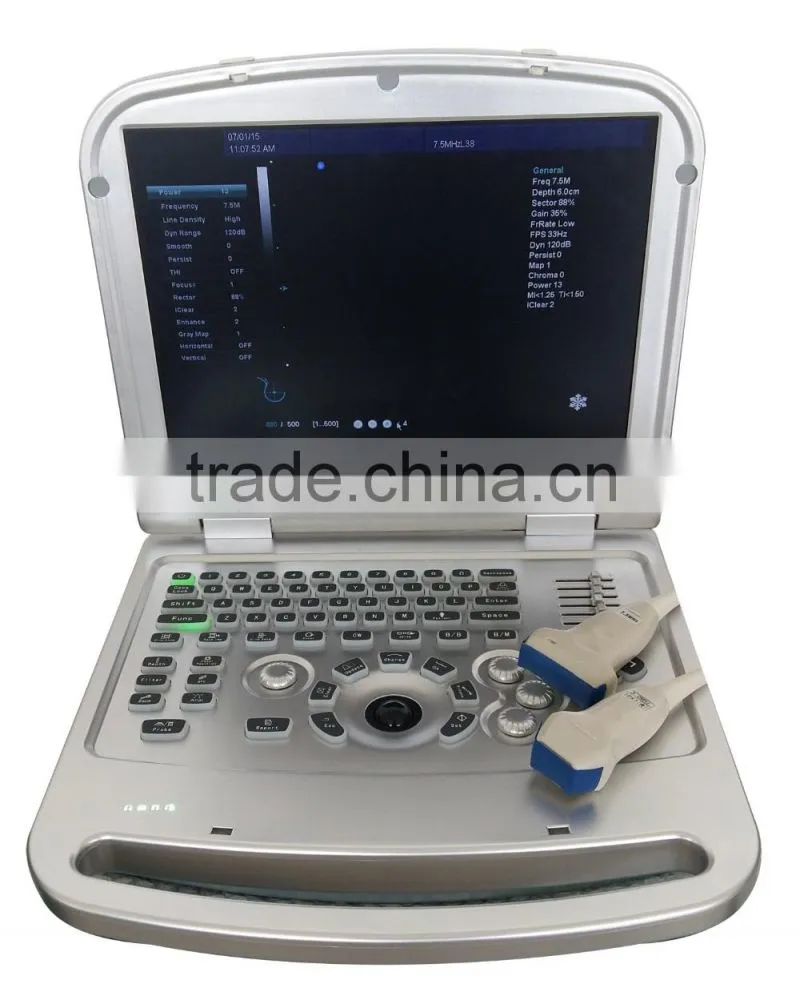

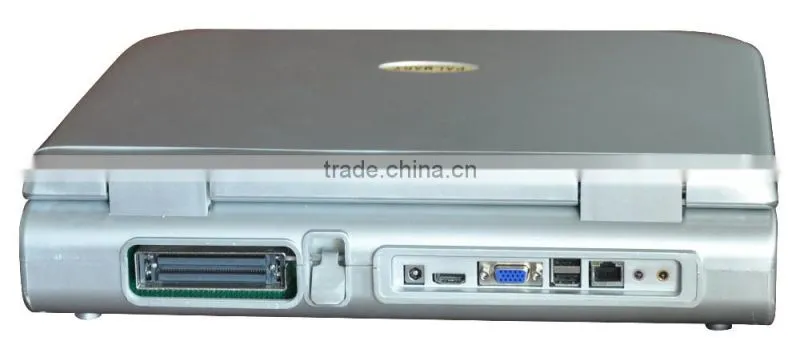

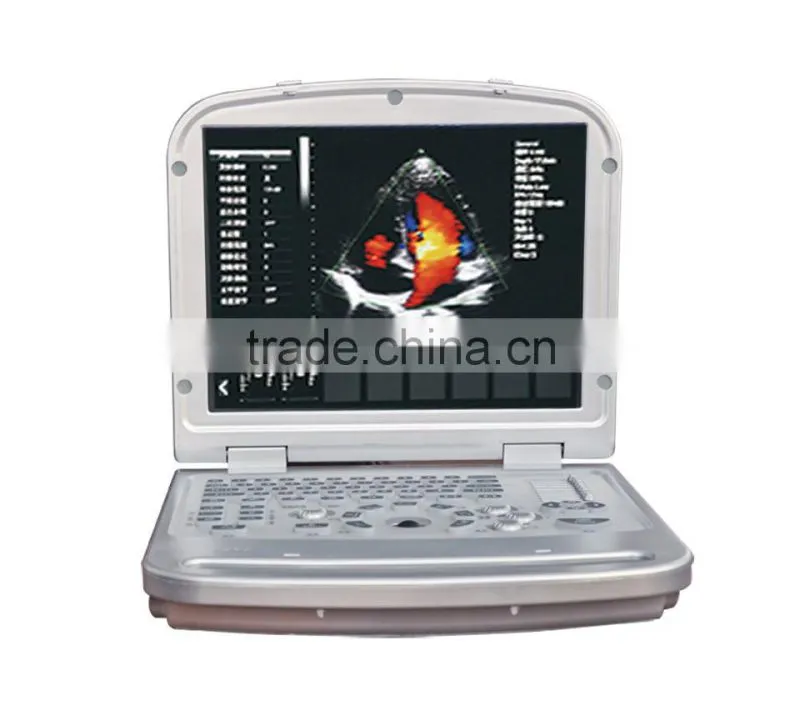

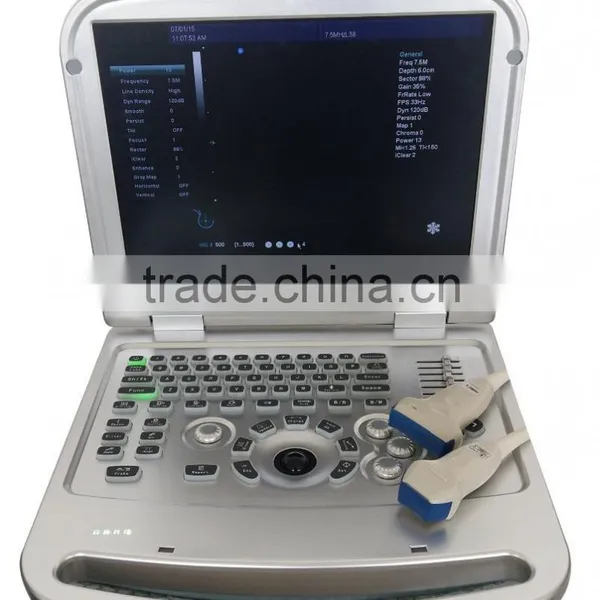

15 inch Color Doppler 64G image-storage capacity ultrasound scanner for hospital
The system mainly applies in diagnosis of liver, gallbladder, spleen, kidney, pancreatic gland, heart and other organs, as well as obstetrics and gynecology examinations, blood vessel and tumor inspection.
General Information:
Axial Resolution: ≤1mm (Depth≤80mm), ≤2mm (80< Depth≤130mm)
Geometry Position Precision: horizontal≤10%, vertical≤10%
Storage Media: 64G massive image-storage capacity
Measurement and Calculation:
Basic measurement, abdomen, early/later obstetric, pelvis, urology, vascular , cardiac, small organs and etc.
B-mode Basic Measurements: distance, angle, perimeter and area, volume histograms, cross section
M-mode Basic Measurements: heart rate, time, distance, speed.
| Display | 15” LCD monitor |
| Display Mode | B, B/B, 4B, B/M, M, B+C, B+D |
| Gray Scale | 256 |
| Dyn Range | 0dB-160dB |
| Depth | ≥330mm |
| Blind Area | ≤5 mm |
| Channels | 64 |
| Probe elements | 128 |
| Cine-loop | ≥1000. |
| Lateral Resolution | ≤1mm (Depth≤80mm), ≤2mm (80< Depth≤130mm) |
Imaging Pre-processing:
8-segment TGC
Preset
Gain (B&W, Color, Doppler)
Audio
PRF
Dynamic Range
Image Enhancement
Acoustic Power
Imaging Post-processing:
Gray Map
Black/White Reverse
Left/Right Reverse
Up/Down Reverse
Others:
USB Port: 2
Probe Connector: 2
Power Supply: (AC)220V±22V 50Hz±1Hz
Continuous Working Hours: ≥8h
External Display: PAL, VGA
Standard Configuration:
Scanner Body: 1pc
3.5Mhz Convex Probe: 1pc
Charger with a Set of Wires: 1set
Bottle of USG gel: 1pc
User Manual: 1pc
Optional:
3.5Mhz Phased Array Probe
6.5Mhz Trans-virginal Probe
7.5Mhz Linear Probe
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
