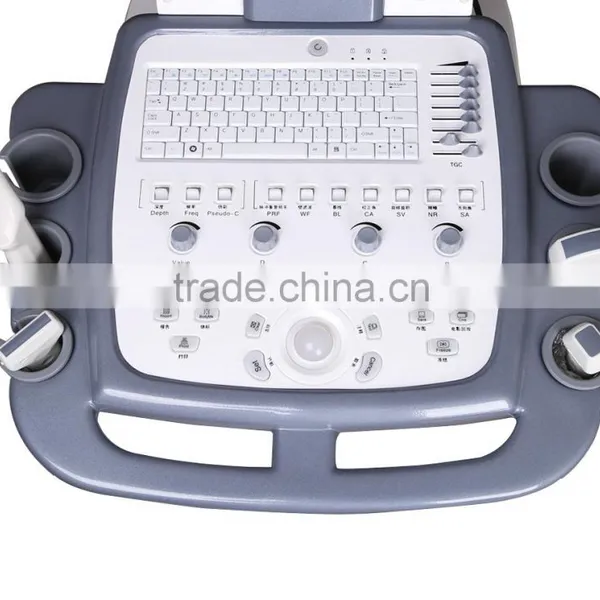

PL-6018T Trolley automated system Trolley Color Doppler
Technical Parameters:
Partial enlarged : ≥ 4 times
Image mode: B, BB, 4B, B+M , M, PWD, PwrD, CD, CWD, DirPwr, B+C+D.
Image processing : 8 frame-related, 6 related to six-speed lines
Image flip : up and down , left and right , image rotation ( 2B, 4B mode rotated 90 ° ) , black and white
DICOM3.0 interface with network remote assistance software
Sampling frame size, position and color : support B / color consistent width adjustable
Pulse repetition frequency : 0.5-2khz , 6 adjustable
Gain : 20dB-48dB , grading adjustable
Wall filter : 40-500 adjustable
Noise Reduction : 32 adjustable
Sample volume : 0.5-10mm adjustable range 20
Scan speed : 8 adjustable
Support synchronous updates automatically trace and spectral inversion
Baseline position, spectrum volume and correction angle : adjustable
Blood flow measurement velocity:
a) Maximum blood flow velocity measurement : pulse doppler > 2m/s
b) Lowest measured blood flow velocity : <2mm /s (non-noise signals)
Port and holder: 4 activated probe ports and holders, 1 Gel heater holder
Input / Output Interface: USB2.0, LAN, VGA, RS232 , Video, DICOM3.0, foot switch, XGA,DVD burner
Machine dimension (mm): 920*550*1450
| Monitor | 19” high-resolution LCD color monitor |
| Gray scale | 256 |
| Scanning lines | ≥256 |
| Dynamic Range | 30dB-75dB |
| Maximum frame rate | ≥65/s |
| Pseudo-color display | 11 |
| Note | body mark and character note, body mark: ≥100 |
| Cine loop | ≥100 frame |
| Image memory | ≥160G, format BMP/JPG/DCM/TIF |
| TGC | ≥8 |
Measurement:
Mode B (2D) measurement
a) General measurement: distance, perimeter, area, volume, distance narrower radio, area stenosis ratio.
b) Gynecological measurement: uterine size and volume, cervix size and volume, right/left ovary size and volume, endometrial thickness, right/left follicle volume.
M mode measurements: distance, heart rate.
Doppler measurements: General measurement: systolic and end-diastolic velocity, peak flow, time, blood flow, pulse index and heart rate.
Standard Configuration:
Scanner Body: 1pc
3.5Mhz Convex Probe: 1pc
Charger with a Set of Wires: 1set
Bottle of USG gel: 1pc
User Manual: 1pc
USB disk: 1pc
Optional:
Micro-convex probe
Phased array probe
Trans-virginal probe
Linear probe
4D Volume probe
Printer
Guided probe holder
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
