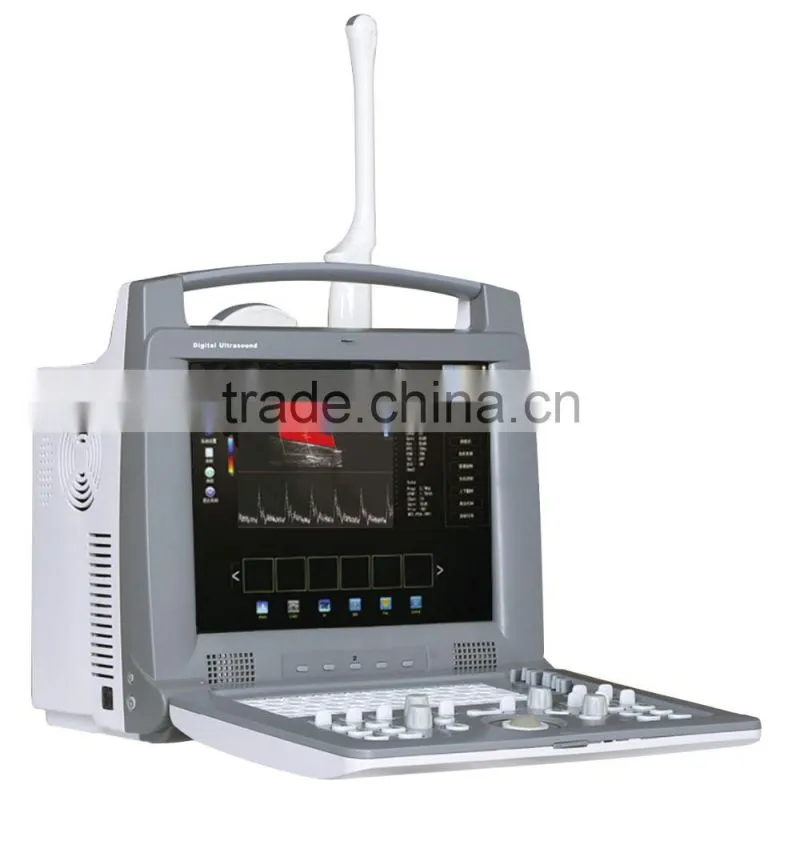

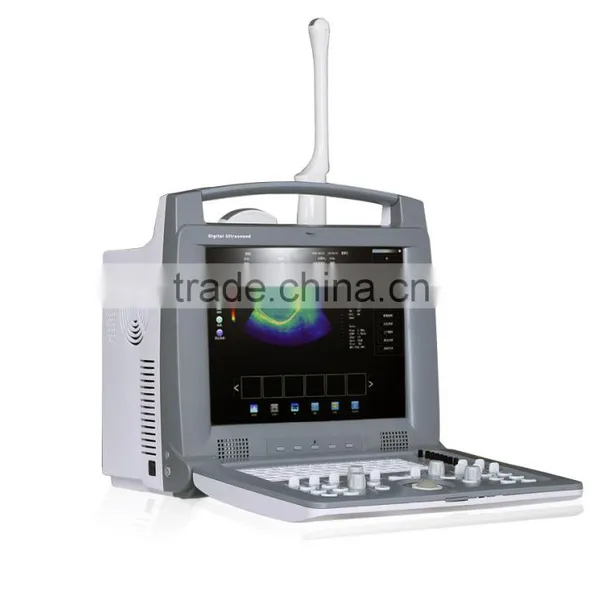

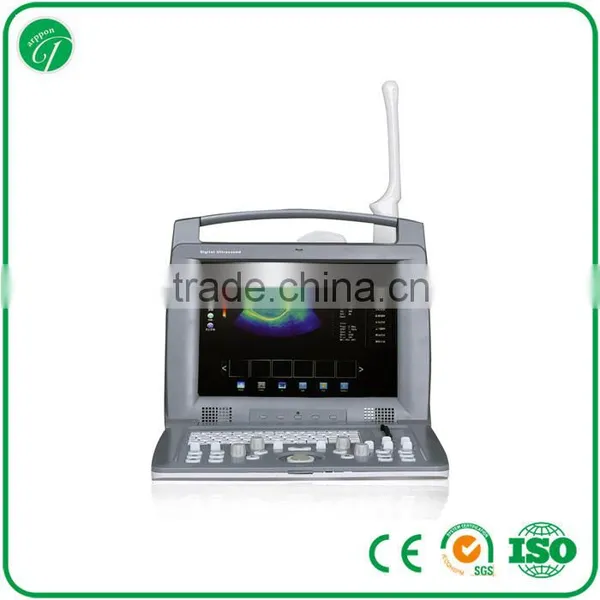

Help CenterLaptop Color Doppler 2D Ultrasound Machine 12.1" High-resolution LCD
Related Products
-
Ipad Wireless Touch Screen Color Doppler Ultrasound Equipment/ultrasound ScannerUS$ 7,200 - 7,500MOQ: 1 Unit -
2016 Newest Handheld Ultrasound Machine Color DopplerUS$ 8,500 - 9,500MOQ: 1 Unit
-
Portable Digital Ultrasound Machine /scanner Portable Color Doppler With 3D / 4D Software for Cardiac /gynecologyUS$ 8,500 - 9,500MOQ: 1 Unit
-
Portable Ultrasound Color Doppler With Competitive Price K6US$ 8,500 - 9,500MOQ: 1 Unit
-
Digital Color Doppler 4D Ultrasound Machine K6US$ 8,500 - 9,500MOQ: 1 Unit
PL-6018P Portable Color Doppler
Technical Parameters:
Monitor : 12.1” high-resolution LCD
Image mode: B, BB, 4B, B+M , M, PWD, PwrD, CD, CWD, DirPwr, B+C+D.

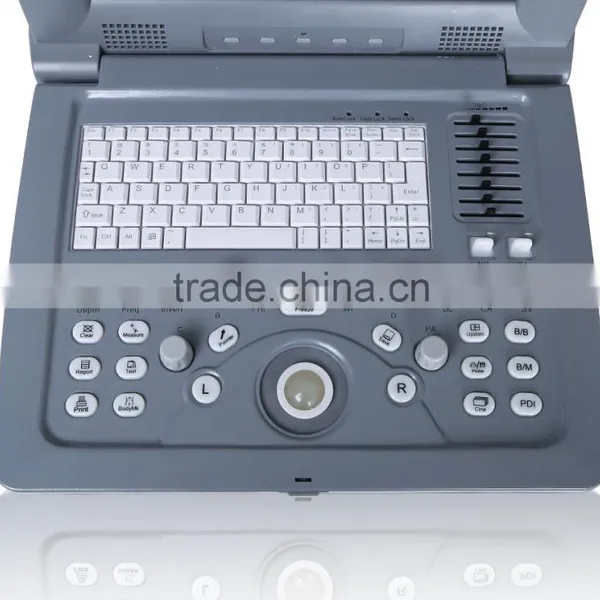

Keyboard: digital back-light control and spin button.

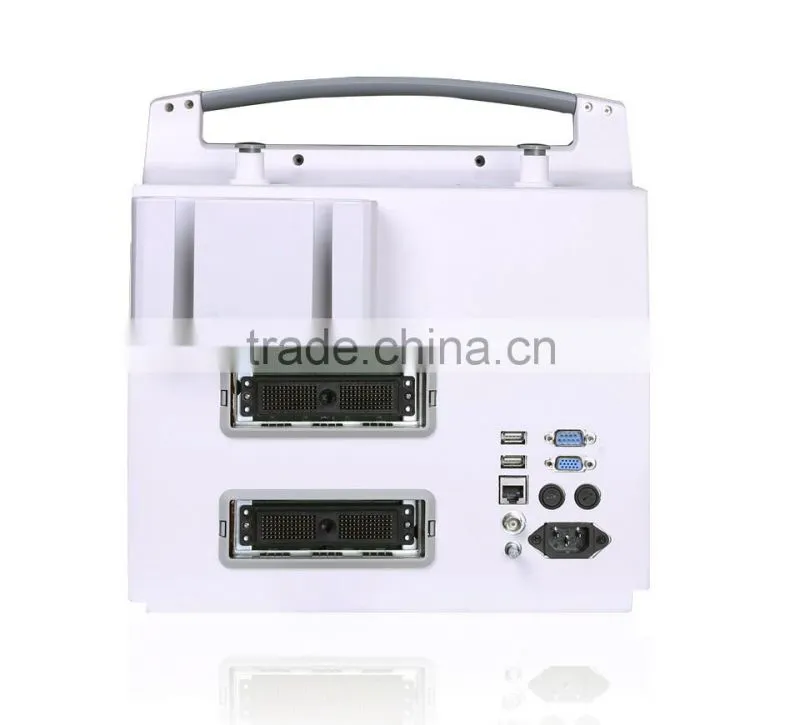

Input / Output Interface: USB2.0, LAN, VGA, RS232 , Video, DICOM3.0
Gray scale : 256
Scanning lines : ≥256
Dynamic Range : 30dB-75dB
Maximum frame rate : ≥65/s
Pseudo-color display : 11
Note: body mark and character note, body mark: ≥100
Cine loop : ≥100 frame
Image processing : 8 frame-related, 6 related to six-speed lines
Image flip : up and down , left and right , image rotation ( 2B, 4B mode rotated 90 ° ) , black and white
Sampling frame size, position and color : support B / color consistent width adjustable
Support synchronous updates automatically trace and spectral inversion
Baseline position, spectrum volume and correction angle : adjustable
Blood flow measurement velocity:
a) Maximum blood flow velocity measurement: pulse doppler > 2m/s
b) Lowest measured blood flow velocity: <2mm /s (non-noise signals)
| Machine dimension (mm) | 320*220*295 |
| Scan speed | 8 adjustable |
| Sample volume | 0.5-10mm adjustable range 20 |
| Noise Reduction | 32 adjustable |
| Wall filter | 40-500 adjustable |
| Gain | 20dB-48dB , grading adjustable |
| Pulse repetition frequency | 0.5-2khz , 6 adjustable |
| Partial enlarged | ≥ 4 times |
| TGC | ≥8 |
| Image memory | ≥160G, format BMP/JPG/DCM/TIF |
Measurement:
Mode B (2D) measurement
a) General measurement: distance, perimeter, area, volume, distance narrower radio, area stenosis ratio.
b) Gynecological measurement: uterine size and volume, cervix size and volume, right/left ovary size and volume, endometrial thickness, right/left follicle volume.
M mode measurements: distance, heart rate.
Doppler measurements: General measurement: systolic and end-diastolic velocity, peak flow, time, blood flow, pulse index and heart rate.
Standard Configuration:
Scanner Body : 1pc
3.5Mhz Convex Probe : 1pc
Charger with a Set of Wires : 1set
Bottle of USG gel : 1pc
User Manual : 1pc
Optional:
Micro-convex probe
Phased array probe
Trans-virginal probe
Linear probe
3D software
Printer
Puncture frame
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
