Specifications
Cemented carbide cold roll ring for stainless steel strip1.100% virgin raw material.

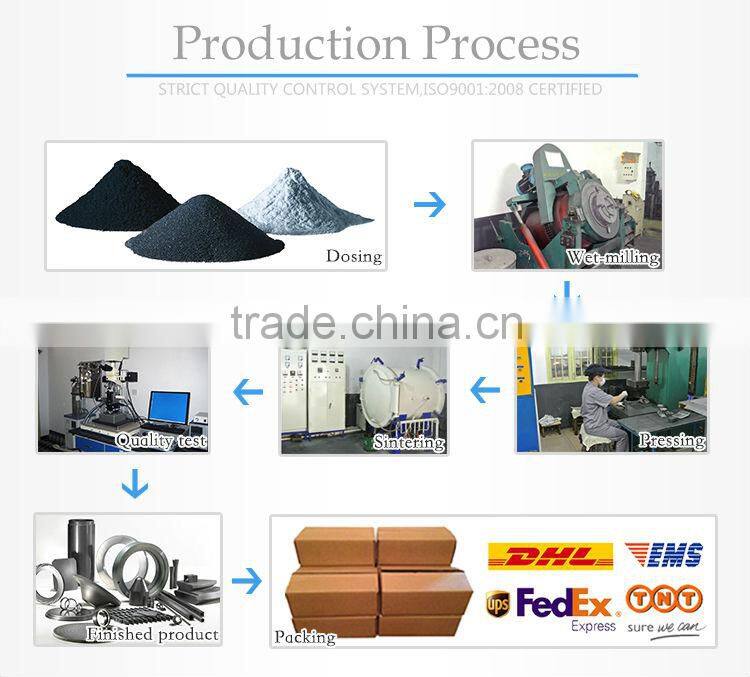

2.sintered in HIP Furnace.

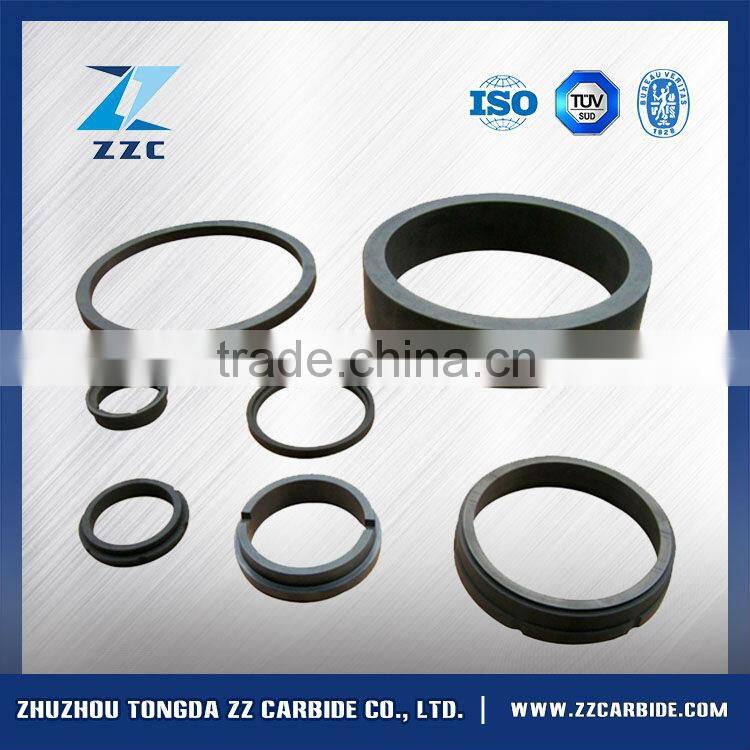

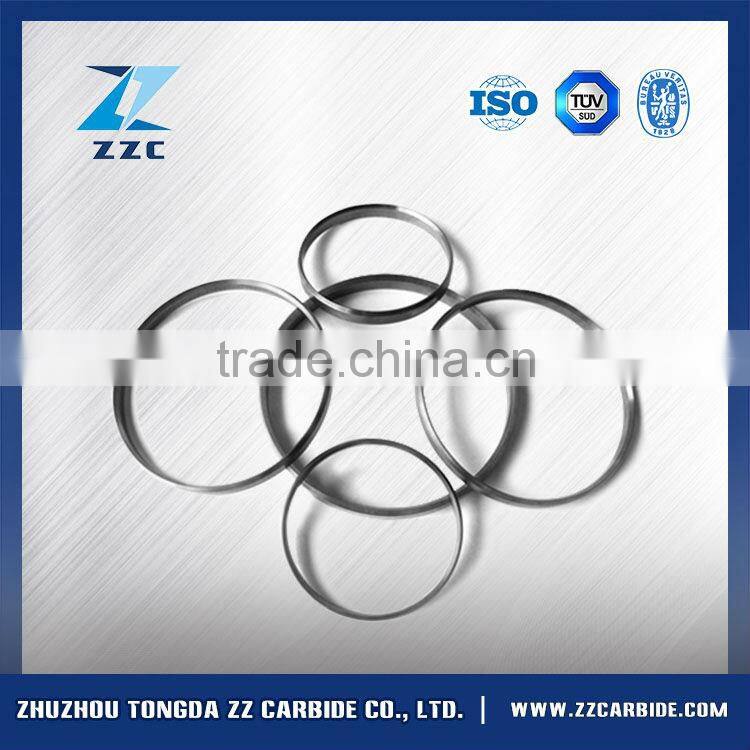

Customise irregular shape Cemented carbide cold roll ring for stainless steel strip for steel and cast iron
Cemented carbide cold roll ring for stainless steel strip Applicatioin:
Our sealing rings are used in many different mechanical seal industries.
We can custom the products according to client's demand.
Cemented carbide cold roll ring for stainless steel strip
Product Property:
1. The characteristics of abrasive resistance, corrosion resistance and stable property performance, high fracture strength , thermal wear ,durable;
2. High precision, high hardness,various size and o type ring,the maximun OD can reach 500mm;
3.Tungsten carbide material,mechanical rotary files,seal ring,stable performance, low maintenance and friction,surface polished,new model can be designed;
4. Factory wholesale price,customise service according to your needs.
Cemented carbide cold roll ring for stainless steel strip
Cobalt Binder Grades
Grade |
Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (>N/mm²) |
YG6 |
6 |
14.8 |
90.0 |
1520 |
YG6X |
6 |
14.9 |
91.0 |
1450 |
YG6A |
6 |
14.9 |
92.0 |
1540 |
YG8 |
8 |
14.7 |
89.5 |
1750 |
YG12 |
12 |
14.2 |
88.0 |
1810 |
YG15 |
15 |
14.0 |
87.0 |
2050 |
YG20 |
20 |
13.5 |
85.5 |
2450 |
YG25 |
25 |
12.1 |
84.0 |
2550 |
Nickel Binder Grades
Grade |
Binder (Wt %) |
Density (g/cm3) |
Hardness (HRA) |
TRS (>N/mm²) |
YN6 |
6 |
14.7 |
89.5 |
1460 |
YN6X |
6 |
14.8 |
90.5 |
1400 |
YN6A |
6 |
14.8 |
91.0 |
1480 |
YN8 |
8 |
14.6 |
88.5 |
1710 |
Cemented carbide cold roll ring for stainless steel strip
