Specifications
Circle vibrating screen: high efficiency, long life span, low consumption, little noise.If you would like to receive the price and detailed specifications of our Circle vibrating screen, please Leave Us a message Below!!

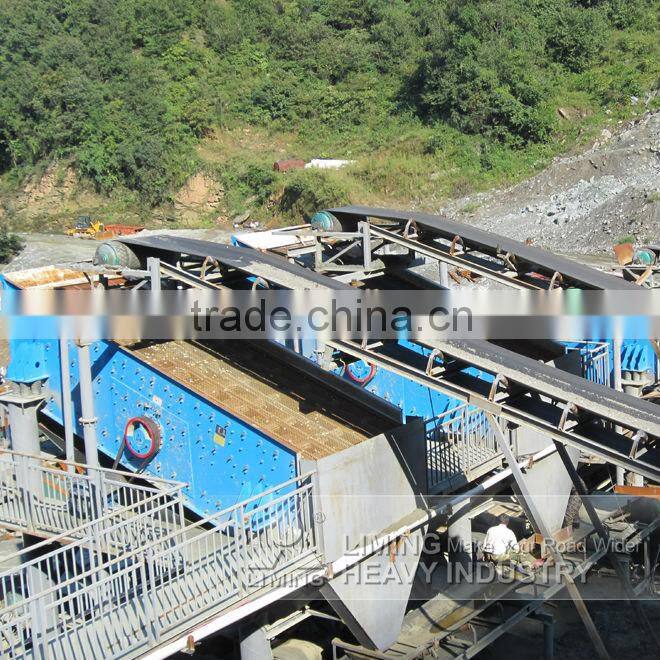

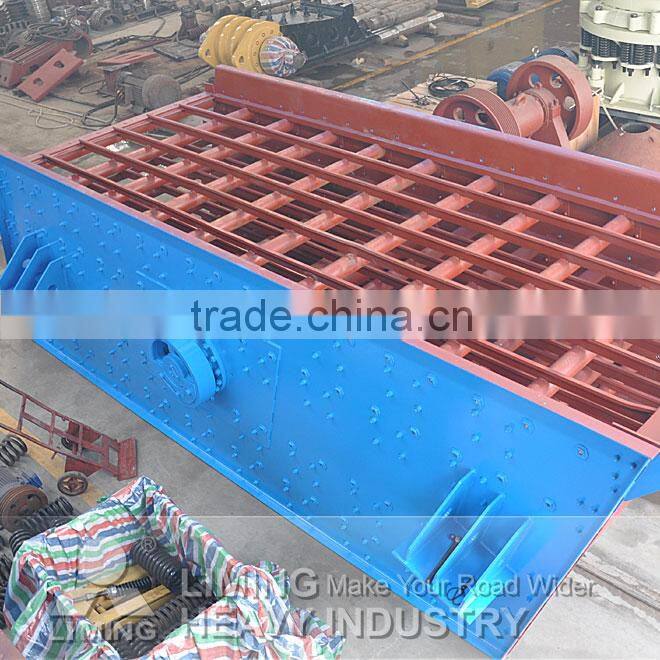

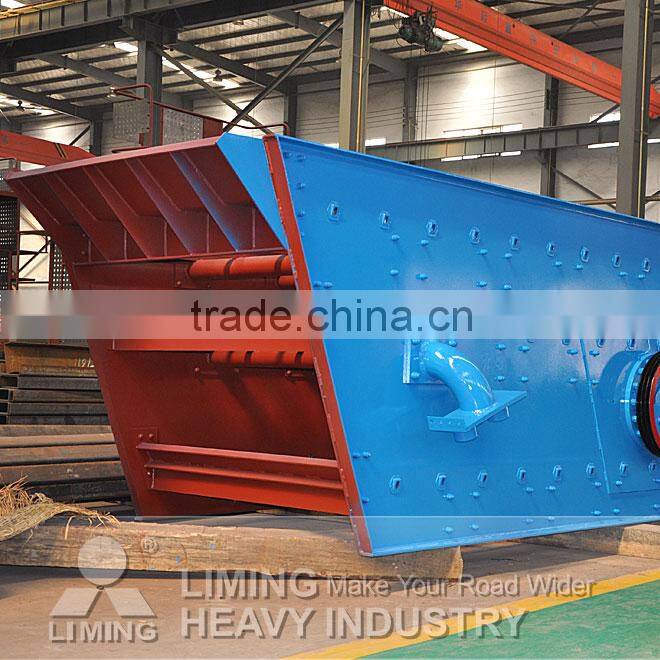

Overview of Circle vibrating screen
We have a wide range of Circle vibrating screen suitable for various screening application.Circle vibrating screen are used to separate materials into various sizes for further processing in Crusher. Circle vibrating screen works on circular motion. It is applicable for wide range of operations like screening of dry or wet sand gravel crushed stone, mineral ores and industrial applications. We offer vibro screens in a variety of combination of sizes to apt solutions for different capacity requirement for crushers. In screen grading, the material is separated mechanically on screen plates. Circle vibrating screen has rolling bearing stressed by high loads. Output of the screen depends on screen inclination, feeding system, screen RPM and vibration ratio. We can design and supply all ranges of Circle vibrating screen according to the capacity and requirement.
Features of Circle vibrating screen
1. It uses eccentric block to produce strong exciting force.
2. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
3. It adopts tire coupling with capability of flexible connection and stable operation.
4. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
Working Principle of Circle vibrating screen
Circle vibrating screen is manufactured for stand alone or supplemental installations. It can be manufactured in customized shape and size fit to the crusher and other processing applications and production requirements. Vibro screens are suitable with various screening systems. It can be installed and integrated with existing crusher units and plants. Screens are used for discharging bulky goods, sand, gravel, coal, mineral ores and coke from hoppers to crusher.
Specifications of Circle vibrating screen
| Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
| 3YZS1237 | 3700×1200 | 3 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
| 2YZS1548 | 4800×1500 | 2 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
| 3YZS1548 | 4800×1500 | 3 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
| 2YZS1848 | 4800×1800 | 2 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YZS1848 | 4800×1800 | 3 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 4YZS1848 | 4800×1800 | 4 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YZS1860 | 6000×1800 | 2 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
| 3YZS1860 | 6000×1800 | 3 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
| 4YZS1860 | 6000×1800 | 4 | 3-80 | 100 | 60-300 | 30 | 750-950 | 5-9 |
| 2YZS2160 | 6000×2100 | 2 | 3-80 | 100 | 80-400 | 22 | 700-900 | 5-9 |
| 3YZS2160 | 6000×2100 | 3 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
| 4YZS2160 | 6000×2100 | 4 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
| 2YZS2460 | 6000×2400 | 2 | 5-80 | 100 | 100-500 | 30 | 700-900 | 5-9 |
| 3YZS2460 | 6000×2400 | 3 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
| 4YZS2460 | 6000×2400 | 4 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
Note:Any change of technical data shall not be advised additionally.
