Help Center2015 Energy Efficient Artificial Sand Washing Machine
Related Products

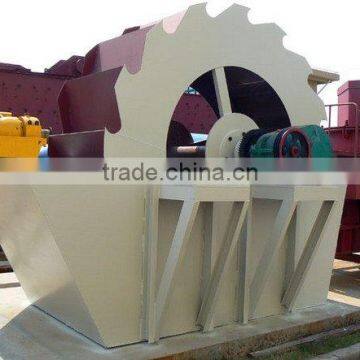

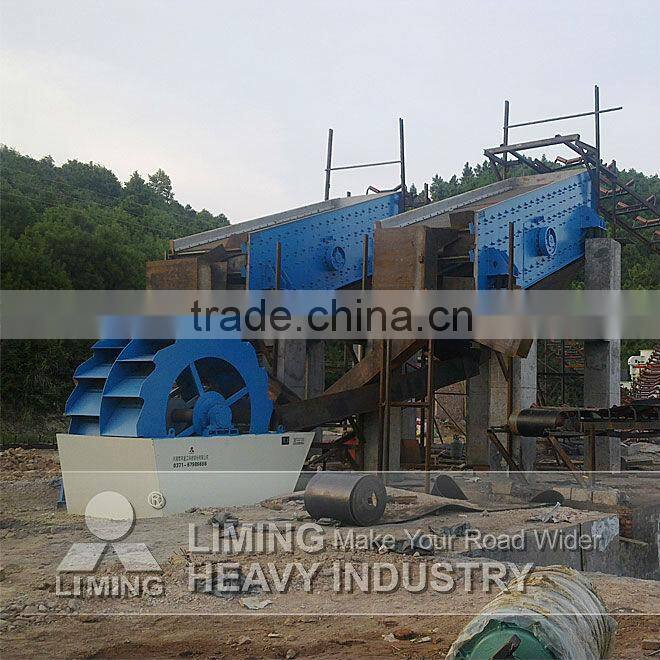

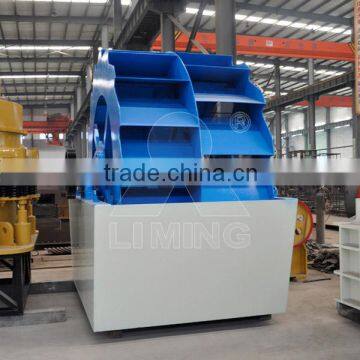

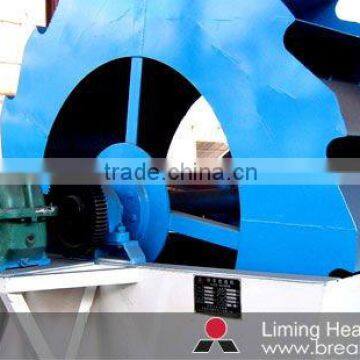

This series XSD Sand Washing Machines are a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand. XSD series Sand making machine is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factorys quartz sand and refilling pressure sand.
Working Principle of Sand Washing Machine:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Characteristics of Sand Washing Machine:
Reasonable structure, large capacity, low consumption, little loss of the sand during the washing process, low failure rate.
Specifications of Sand Washing Machine:
| Model | Wheel Size (mm) | Max feed size (mm) | Power (kW) | Weight (t) | Capacity (t/h) | Overall dimension (mm) |
| XSD2610 | Φ2600×1000 | 10 | 5.5 | 2.7 | 20-50 | 3255×1982×2690 |
| XSD2816 | Φ2800×1600 | 10 | 11 | 5.5 | 30-60 | 3540×3000×2880 |
| XSD3016 | Φ3000×1600 | 10 | 15 | 5.8 | 50-100 | 3845×3000×3080 |
Henan LIMING Heavy Industry Science and Technology Co. LTD which mainly manufacture large and medium-sized crushing and grinding equipments was founded in 1987. It is a modern joint-stock corporation with research, manufacturing and sales together.
The company headquarters is located in Zhengzhou National Hi-Tech Industrial Development Zone, where is mixed with tradition and innovation, with an area of 80,000 square meters. The machinery and equipment Industrial Park which is located in Shangjie covers an area of 67,000 square meters.
The products of Liming Heavy Industry have the highly quality and advanced technology. The General Research Institute focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes Liming Heavy Industry being the best in the industry.What’s more, LIMING got ISO international quality system certification, European Union CE certification and Russian GOST certification. The company has strong research and development strength and innovation.
As a high-end crushing, grinding and assembling company, LIMING values the technology exchange and cooperation with overseas countries. It wins the huge foreign market with mature product and perfect service system. Liming products are exported to more than 100 countries and districts all over the world such as Russia, Central Asia, Middle East, Africa, Southeast Asia, Australia, European Union, North America, South America, etc.
Over the past 26 years, our company adheres to modern scientific management system, precision manufacturing, pioneering and innovation. Now LIMING has become the leader in domestic and oversea machinery manufacturing industry.
High quality service is what we are pursuing. Our service is available all around the world. And our high quality service team is ready to provide you with fast and efficient service from the tailored solutions for competitive production process to free training of complete plant installation.
