YZS Vibrating Screen
- Shanghai Tianjin Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Circular, Separator | |
| Application | Ore | Place of Origin | Henan, China | |
| Brand Name | LIMING | Model Number | yzs | |
| Power(W) | 11-37KW | Certification | ISO9001:2000, ISO9001 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

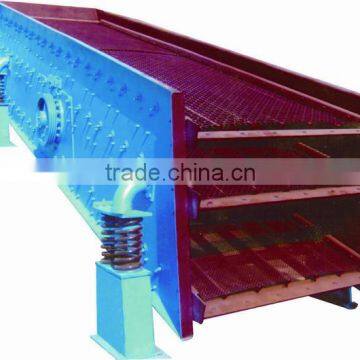

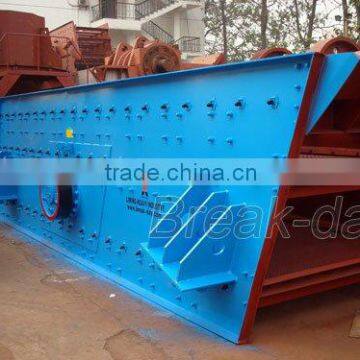

The Overview of YZS Vibrating Screen
Vibrating Screens are used to separate materials into various sizes for further processing in Crusher. Vibrating screen works on circular motion. It is applicable for wide range of operations like screening of dry or wet sand gravel crushed stone, mineral ores and industrial applications. We offer vibro screens in a variety of combination of sizes to apt solutions for different capacity requirement for crushers. In screen grading, the material is separated mechanically on screen plates. Vibrating screen has rolling bearing stressed by high loads. Output of the screen depends on screen inclination, feeding system, screen RPM and vibration ratio. We can design and supply all ranges of vibrating screens according to the capacity and requirement.
The features of YZS Vibrating Screen
1. It uses eccentric block to produce strong exciting force.
2. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
3. It adopts tire coupling with capability of flexible connection and stable operation.
4. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
The specifications of YZS Vibrating Screen
| Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
| 2YZS1237 | 3700×1200 | 2 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
| 3YZS1237 | 3700×1200 | 3 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
| 2YZS1548 | 4800×1500 | 2 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
| 3YZS1548 | 4800×1500 | 3 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
| 2YZS1848 | 4800×1800 | 2 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YZS1848 | 4800×1800 | 3 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 4YZS1848 | 4800×1800 | 4 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YZS1860 | 6000×1800 | 2 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
| 3YZS1860 | 6000×1800 | 3 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
| 4YZS1860 | 6000×1800 | 4 | 3-80 | 100 | 60-300 | 30 | 750-950 | 5-9 |
| 2YZS2160 | 6000×2100 | 2 | 3-80 | 100 | 80-400 | 22 | 700-900 | 5-9 |
| 3YZS2160 | 6000×2100 | 3 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
| 4YZS2160 | 6000×2100 | 4 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
| 2YZS2460 | 6000×2400 | 2 | 5-80 | 100 | 100-500 | 30 | 700-900 | 5-9 |
| 3YZS2460 | 6000×2400 | 3 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
| 4YZS2460 | 6000×2400 | 4 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
Henan LIMING Heavy Industry Science and Technology Co. LTD which mainly manufacture large and medium-sized crushing and grinding equipments was founded in 1987. It is a modern joint-stock corporation with research, manufacturing and sales together.
The company headquarters is located in Zhengzhou National Hi-Tech Industrial Development Zone, where is mixed with tradition and innovation, with an area of 80,000 square meters. The machinery and equipment Industrial Park which is located in Shangjie covers an area of 67,000 square meters.

The products of Liming Heavy Industry have the highly quality and advanced technology. The General Research Institute focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes Liming Heavy Industry being the best in the industry.What’s more, LIMING got ISO international quality system certification, European Union CE certification and Russian GOST certification. The company has strong research and development strength and innovation.
As a high-end crushing, grinding and assembling company, LIMING values the technology exchange and cooperation with overseas countries. It wins the huge foreign market with mature product and perfect service system. Liming products are exported to more than 100 countries and districts all over the world such as Russia, Central Asia, Middle East, Africa, Southeast Asia, Australia, European Union, North America, South America, etc.
Over the past 26 years, our company adheres to modern scientific management system, precision manufacturing, pioneering and innovation. Now LIMING has become the leader in domestic and oversea machinery manufacturing industry.
The General Research Institute of Liming Heavy Industry focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes Liming Heavy Industry a pioneer of the industry. By providing fundamental research results, the institute supports Liming Heavy Industry existing technology and products to be the world's top ones.
The General Research Institute of Liming Heavy Industry is the primary R&D department for technical research and technical management. It is responsible for developing technology applicable to Liming all products, conducting forefront technical research on new products and setting standards; researching vibration, impact, noise, hydraulic technology, power matching and energy saving, new materials and control systems, creating innovative technologies and conceptive products and building up a network-based special and generalized platform for experiments and tests so as to share general experiment and test results.
