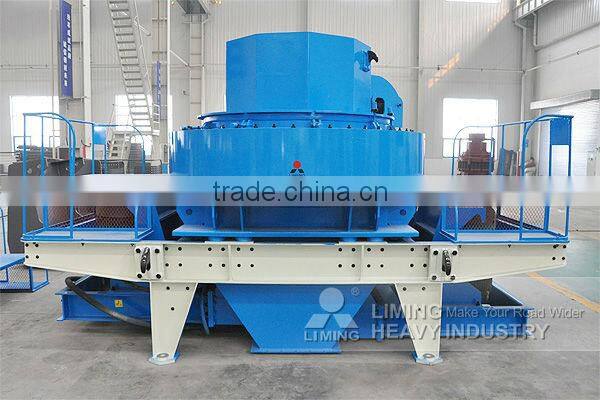

Help CenterThe Working Principle and the Price of VSI5X Sand Making Machine
Related Products
-
The Latest VSI5X System Sand Making Machine TheoryNegotiableMOQ: 1 Set -
How Much is the 100 Mesh Sand Making Machine MachineNegotiableMOQ: 1 Set
-
Artificial Sand Making Process in AustraliaNegotiableMOQ: 1 Set
-
VSI5X Vertical Shaft Impact CrusherUS$ 9,999 - 99,999MOQ: 1 Set
-
VSI Series Efficient Vertical Shaft Impact CrusherNegotiableMOQ: 1 Set
Specifications

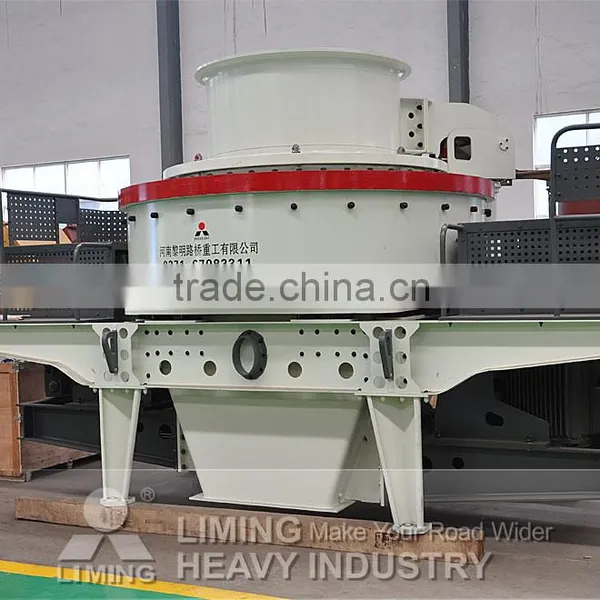

VSI sand making machine is widely used in metallic and nonmetallic ores,cement,corhart,abrasive material,glass,metallurgy,etc.VSI Sand Making Machine is a newly researched equipment, with international advanced level.
VSI High Efficiency sand making machine(VSI crusher) is the top preferred equipment in artificial sand making and stone reshaping industry.
VSI sand making machine is specially suitable for making qualified stone and sand for highway,high-speed railway,high buliding,hydropower dam construction,concrete mixing station.
VSI Sand Making Machine Characteristics:
1. Advanced double-pump oil lubrication system guarante shaft bearing lower temperature increase, longer life time, more reliable operation.
2. Main shaft is equipped with imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increase productivity.
3. Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.
4. Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure. It will stop the machine, in order to protect it.
5. Special dust-proof design for main shaft bearing fully avoid dust entering bearing lubrication part, which make sure the machine work normally.
6. Special feed opening structure make it possible that center feeding and ring feeding comes together, in order to meet requriement of different stones. In addition, this equipment can not only crush stone, but also iron.
7. Shape of material-throughing device is better designed, which improve the utilization ratio.
VSI Sand Making Machine Usage:
VSI Sand Making Machine is widely used for artificial sand, in metal and non-metal ores, cement, refractory material, bauxite, silicon carbide, glass material, building material.
VSI Sand Making Machine Working Principle:
(1) Center Feeding:
Raw material falls down into feed hopper, then enter into impellor through central entrance hole. It is accelarated in high-speed impellor, then is thrown out at speed of 60-75m/s. When it hits impact plate, it is crushed. Final products come downwards though outlet.
(2) Ring Feeding:
Raw material falls down into feed hopper, then through ring, it is divided into two divisions by material-deviding plate. One enters into impellor through the center of material-deviding plate. The other falls down from outside of material-deviding plate. Material, which is thrown out by impellor at speed of 60-75m/s, hits material coming down from outside of material-deviding plate. In this way, material is crushed.
Specifications
1. Main technical parameters:
| model | VSI5X7615 | VSI5X8522 | VSI5X9532 | VSI5X1145 | |
| Throughput capacity (t/h) | Center and Ring feeding | 150~280 | 240~380 | 350~540 | 500~640 |
| Center feeding | 70~140 | 120~190 | 180~280 | 250~360 | |
| Max. Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
| Hard material | <30 | <35 | <40 | <45 | |
| Rotation speed (r/min) | 1700~1900 | 1500~1700 | 1300~1510 | 1100~1310 | |
| Power of double motor (KW) | 150 | 220 | 320 | 440 | |
| Overall dimension L×W×H (mm) | 4100×2330×2300 | 4140×2500×2700 | 4560×2600×2900 | 5000×2790×3320 | |
| Weight (t) | 8.6 | 11.8 | 17.5 | 27.5 | |
| Power source | 380v,50Hz | ||||
| Thin oil lubrication station | Power for double oil pump | 2 x 0.37 KW | |||
| Safety | To make sure the supply of oil with double oil pump, working without oil, temperature when water cools, start the motor by heating it in winter. | ||||
| Power for oil box heater | 2 KW | ||||
| Overall dimension L×W×H (mm) | 820×520×1270 | ||||
Note: Capacity depends on crushing limestone, material size, moisture and features also affect capacity.
2. Lubricating system parameter:
| Oil box volume (L) | 240 |
| Rated pressure (MPa) | 0.63 |
| Flow capacity (L/min) | 8 |
| Power (KW) | 0.31 |
| Cooling water consumption (m3/h) | ≥1.2 |
| Electrical heating voltage (V) | 220 |
| Medium | Bearing oil 32—46# |
Note:Any change of technical data shall not be advised additionally.
