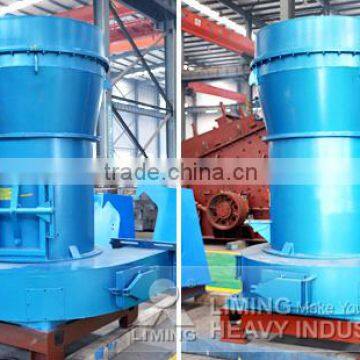

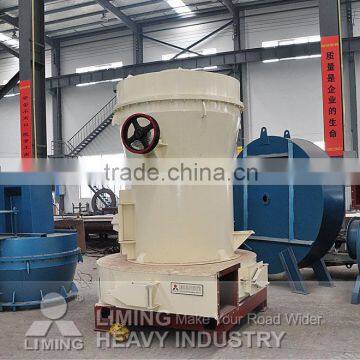

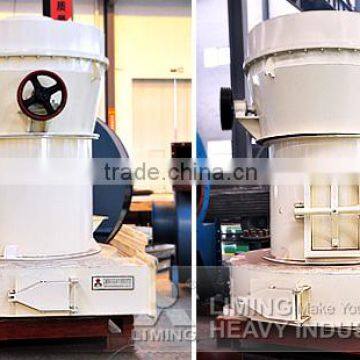

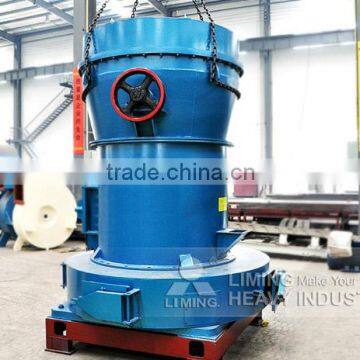

Overviews of Raymond mill,raymond grinder,grinding mill
After many years of practice and improvement, its structure is getting perfect day by day.
For low consumption, low investment, environment friendly , small occupation area, and more efficient than the traditional mill, it is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder. The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products change from 613 micron to 44 micron. Through the function of separator and blower, it can meet different customers’ demand.
Features of Raymond mill,raymond grinder,grinding mill
1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant. 5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
Working Principle of Raymond mill,raymond grinder,grinding mill
Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.
After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.
Specifications of Raymond mill,raymond grinder,grinding mill
| Model | 3R2115 | 3R2615 | 3R2715 | 3R3016 | 4R3216 | ||
| Roller | Number | 3 | 3 | 3 | 3 | 4 | |
| Diameter (mm) | 210 | 260 | 270 | 300 | 320 | ||
| Height (mm) | 150 | 150 | 150 | 160 | 160 | ||
| Ring | Inside diameter (mm) | 630 | 780 | 830 | 880 | 970 | |
| Height (mm) | 150 | 150 | 150 | 160 | 160 | ||
| Maximum feed size (mm) | 15 | 15-20 | 15-20 | 15-20 | 20-25 | ||
| Output size (mm) | 0.044-0.165 | 0.044-0.165 | 0.044-0.165 | 0.044-0.165 | 0.044-0.165 | ||
| Power of main frame (kW) | 15 | 18.5 | 22 | 30 | 37 | ||
| Fineness of final product (mm) | 0.165 | capacity (t/h) | 1.2-1.8 | 1.8-2.5 | 2.3-2.8 | 2.6-3.2 | 3.2-4.5 |
| 0.075 | 0.6-1.2 | 1.2-1.8 | 1.8-2.3 | 1.9-2.6 | 2.4-3.1 | ||
| 0.044 | 0.6-1.0 | 0.8-1.2 | 0.9-1.7 | 1-1.9 | 1.8-2.5 | ||
The General Research Institute of Liming Heavy Industry focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes Liming Heavy Industry a pioneer of the industry. By providing fundamental research results, the institute supports Liming Heavy Industry existing technology and products to be the world's top ones.
The General Research Institute of Liming Heavy Industry is the primary R&D department for technical research and technical management. It is responsible for developing technology applicable to Liming all products, conducting forefront technical research on new products and setting standards; researching vibration, impact, noise, hydraulic technology, power matching and energy saving, new materials and control systems, creating innovative technologies and conceptive products and building up a network-based special and generalized platform for experiments and tests so as to share general experiment and test results.
High quality service is what we are pursuing. Our service is available all around the world. And our high quality service team is ready to provide you with fast and efficient service from the tailored solutions for competitive production process to free training of complete plant installation.
Liming Products are exported to more than 100 countries and districts all over the world such as Russia, Central Asia, Middle East, Africa, Southeast Asia, Australia Union, North America, South America, etc.
