Specifications
modern 110 tph closed circuit cement mill can crush, dry, grind, and classify the materials.If you would like to receive the price and detailed specifications of our modern 110 tph closed circuit cement mill, please Leave Us a message Below!!

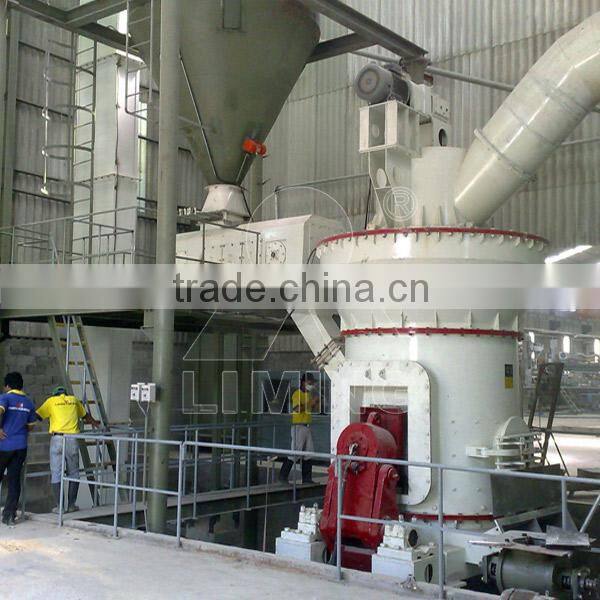

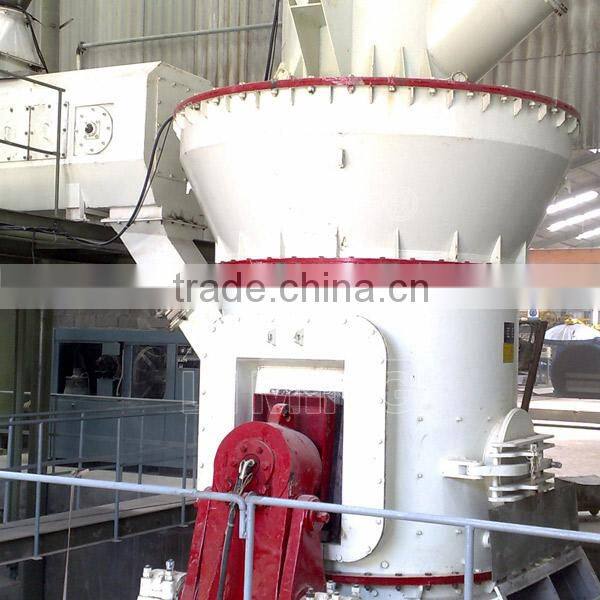

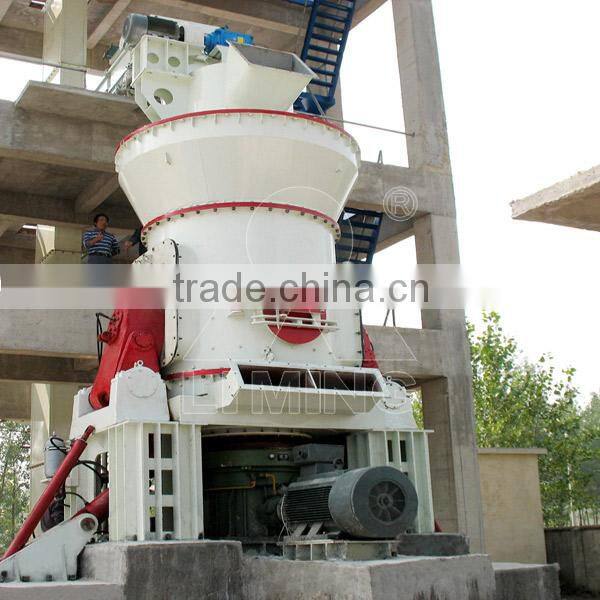

Overview of modern 110 tph closed circuit cement mill
modern 110 tph closed circuit cement mill is one advanced mill, adopting top technology domestic and abroad, and based on many years’ mill experiences. It can crush, dry, grind, and classify the materials.
modern 110 tph closed circuit cement mill can be widely used in such industries as cement, power, metallurgy, chemical industry, non-metallic mineral. It is used to grind granular and powdered materials into powder with required fineness.
Features of modern 110 tph closed circuit cement mill
1. Low Investment Cost. This mill itself can crush, dry, grinding, classifying, so the system is simple, and occupation area is about 50% of ball mill system. In addition, it can be installed outside, so it will reduce a large number of investment costs.
2. Low Operation Cost. High efficiency: roller compacted materials directly onto the grinding disc, so power consumption is low. Compared with ball mill, it saves energy consumption by 30% ~ 40%. Less wear and tear: As the roller is not in direct contact with the disc, and material of the roller and liner is high quality, so life lime is long.
3. High Drying Ability. As the hot air inside contacts directly with the material, drying ability is higher, and it saves energy. By regulating the air temperature, it can meet requirements with diffirent humidity.
4. Simple and reliable operation. It is equipped with automatic control systems, so remote control makes it easy to operate. It is equipmented with one device,which prevents the roller from contacting with the liner directly, and avoids the destructive impact and severe vibration.
5. The stability of product quality. As the material stays in the mill for a short time, it is easy to detect and control the product particle size and chemical composition, to reduce duplication of milling, stable product quality.
6. Maintenance convenience. By reparinging fuel tank, rotating the arm, it is fast to replace the roller sleeve, and liner, and reduce the downtime loss.
7. Environmental protection. It is with small vibration, low noise, and the overall sealing. The system works under negative pressure, so there is no dust going out. It meets the requirements of the state Environmental Protection.
Working Principle of modern 110 tph closed circuit cement mill
modern 110 tph closed circuit cement mill has two pairs of grinding rollers, each pair of roller composed of two narrow rollers, mounted on the same axis and can rotate at different speeds. There are two circular disc slot, and roller to the tire shape, work pressure in the tank. Disc roller and the relative sliding velocity between small and roller can swing, even if the roller sleeve and the disc after the liner wear can guarantee a good abrasive, will not affect the grinding effect. Roller symmetrical structure, one side can be upside down after use and wear. Material grinding process: hydraulic pneumatic roller device through the pressure applied to the material on the crushing of materials, the materials have been moved to crush the edge of disc, from the disc around the nozzle from the exhaust air to improve these materials to Separator.Meal to separate returns after a concentrated mill, fine powder was collected in the precipitator unloading. In the gas flow is small, the meal can not be increased to enhance air flow, they would fall through the nozzle discharged outside the mill, bucket elevator to be transported to the feeder of modern 110 tph closed circuit cement mill and was re-grinding mill feed people.
This cycle features of the way there:
ring by adjusting the air valve, can change the product fineness can shide mill bed load material uniformity and stability, improving the grinding efficiency;
coarse particles in the external circulation, helps reduce Fan power consumption and overall system power.
Specifications of modern 110 tph closed circuit cement mill
Ore Mill
| Contents|Data//Model | LM130K | LM150K | LM170K | LM190K | LM220K | LM240K | |
| Disc Dia. (mm) | 1300 | 1500 | 1700 | 1900 | 2200 | 2400 | |
| Capacity (t/h) | 10~30 | 13~40 | 18~57 | 23~72 | 36~114 | 41~128 | |
| Output fineness | micron | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 | 170~45 |
| mesh | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | 80~325 | |
| Product moisture | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Max.input size (mm) | <38 | <40 | <42 | <45 | <50 | <55 | |
| Best input moistrure | <4% | <4% | <4% | <4% | <4% | <4% | |
| input moistrure(drying required) | <15% | <15% | <15% | <15% | <15% | <15% | |
| Inlet air temperature (°C) | <350 | <350 | <350 | <350 | <350 | <350 | |
| Outlet air temperature (°C) | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | 70~95 | |
| Main mill power (KW) | 185~220 | 250~280 | 355~400 | 450~500 | 710~800 | 800~900 | |
| Dimension | Lmm | 3500 | 4200 | 4700 | 8500 | 10200 | 11700 |
| Wmm | 3400 | 3900 | 4500 | 5600 | 6700 | 7700 | |
| Gmm | 5800 | 7100 | 8300 | 8800 | 10600 | 12200 | |
| Weight (t) | 48 | 75 | 90 | 100 | 125 | 160 | |
Notes:
1. Material should be with hardness less than 7 in Mohs.
2. Hot air is only necessary if outlet moisture is required to be less than inlet moisture.
3.When grinding mateiral that is difficult to grind, please use the largest power.
Coal Mill
| Contents|Data//Model | LM130M | LM150M | LM170M | LM190M | LM220M | LM240M | |
| Disc Dia. (mm) | 1300 | 1500 | 1700 | 1900 | 2200 | 2400 | |
| Capacity (t/h) | 10~15 | 16~22 | 20~28 | 26~35 | 35~45 | 40~50 | |
| fineness (R0.08) | <15% | <15% | <15% | <15% | <15% | <15% | |
| Coal powder moisture | <1% | <1% | <1% | <1% | <1% | <1% | |
| Max.input size (mm) | <38 | <40 | <42 | <45 | <50 | <55 | |
| input moistrure | <15% | <15% | <15% | <15% | <15% | <15% | |
| Inlet air temperature (°C) | <350 | <350 | <350 | <350 | <350 | <350 | |
| Outlet air temperature (°C) | 75~95 | 75~95 | 75~95 | 75~95 | 75~95 | 75~95 | |
| Hardgrove index of raw coal (HGI) | >55 | >55 | >55 | >55 | >55 | >55 | |
| Main mill power (KW) | 185 | 250 | 315 | 400 | 500 | 560 | |
| Dimension | Lmm | 3500 | 4200 | 4700 | 8500 | 10200 | 11700 |
| Wmm | 3400 | 3900 | 4500 | 5600 | 6700 | 7700 | |
| H mm | 5800 | 7100 | 8300 | 8800 | 10600 | 12200 | |
| Weight (t) | 46 | 75 | 94 | 100 | 122 | 157 | |
Note:Any change of technical data shall not be advised additionally.
Certificate
We have got the certificate of European Union CE certification, ISO international quality system certification, and SZUTEST certification.
About Liming
Henan LIMING Heavy Industry Science and Technology Co. LTD which mainly manufacture large and medium-sized crushing and grinding equipments was founded in 1987. It is a modern joint-stock corporation with research, manufacturing and sales together.
The company headquarters is located in Zhengzhou National Hi-Tech Industrial Development Zone, where is mixed with tradition and innovation, with an area of 80,000 square meters. The machinery and equipment Industrial Park which is located in Shangjie covers an area of 67,000 square meters.
The products of Liming Heavy Industry have the highly quality and advanced technology. The General Research Institute focuses on research and development of advanced technology and customer-oriented products as well as building up core competitiveness to makes Liming Heavy Industry being the best in the industry. What’s more, LIMING got ISO international quality system certification, European Union CE certification and Russian GOST certification. The company has strong research and development strength and innovation.
As a high-end crushing, grinding and assembling company, LIMING values the technology exchange and cooperation with overseas countries. It wins the huge foreign market with mature product and perfect service system. Liming products are exported to more than 100 countries and districts all over the world such as Russia, Central Asia, Middle East, Africa, Southeast Asia, Australia, European Union, North America, South America, etc.
Over the past 26 years, our company adheres to modern scientific management system, precision manufacturing, pioneering and innovation. Now LIMING has become the leader in domestic and oversea machinery manufacturing industry.
