High Quality Hydrualic oil Testing Equipments

    Hydrualic oil Testing Equipments

Functional use

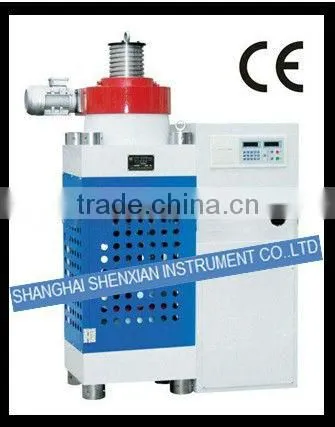

The Compression Testing Machine is mainly used for doing compressive test of some construction materials like brick, stone, cement and other building materials concrete

Features:

Hydraulic load, Electronic measuring,

Display load value and loading rates

Keep Max load and overload protection,

Power data retention and other functions.

Specifications :

Maximum Test Force : 2000kN

Test Force showed the value of the relative error: <± 1%

Screw adjustment method : electrical power

The upper and lower platen size : 260 × 300mm;

Maximum distance between the upper and lower platen; 320mm;

Piston stroke 30mm ;

Piston diameter φ250mm ,

Hydraulic pump rated pressure : 40MPa

motor power : 3 phase 0.75kW  1.1 kW

Packing information :

Packing material : plywood case to meet long sea requirements

 Dimension: 800 × 500 × 1200 mm

Net weight is about 750Kg

Pkgs No: 1
