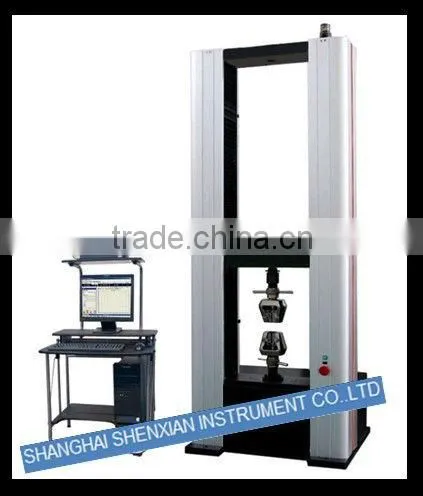

Digital Electronic Wood-based Panel Testing Machine
Introduction
The wood-based panel testing machine is mainly used to test the properties of various kinds of wood-based panels.It can test the surface bonding strength of the panels, static bending strength, bending modulus, nail holding strength, internal bonding strength of the panels.
Specifications
Model |
MW-S10 |
MW-S20 |
MW-S30 |
MW-S50 |
MW-S100 |
|
Max test force |
10KN |
20KN |
30KN |
50KN |
100KN |
|
Resolution of test force |
1N |
|||||
Min reading value of deformation |
0.01mm |
|||||
Relative error of indicating value |
±1 |
|||||
Speed range |
0.2-500mm/min |
|||||
Loading mode |
Electrically |
|||||
Control mode |
Micro-computer control |
|||||
Distance between columns |
400mm |
500mm |
||||
Stroke of crossbeam |
990mm |
1000mm |
950mm |
1000mm |
||
Voltage / power |
220V, 50Hz |
|||||
Dimension (mm) |
660X415X1500 |
740X450X1600 |
755X520X1780 |
850X555X1900 |
||
Send Inquiry to This Supplier
