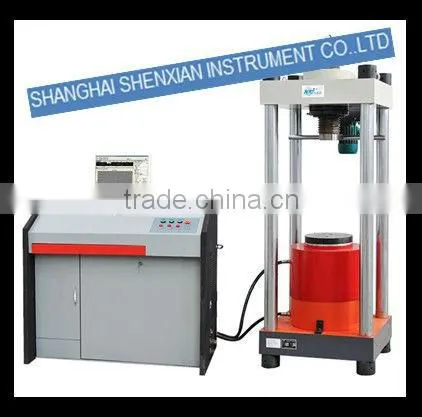

Product Name : Manual Compression Testing Machine
Advantage :
u Adopting high precision electro-hydraulic servo valve to drive precise hydraulic cylinder,
and realize automatical control of test force and displacement in many modes
and can complete compression test to metallic and Non-metallic materials;
u Adopting four-column structure, underneath type hydraulic cylinder, easy for installation and with good stability;
u Using hydraulic servo valve to ensure system high precision, high efficiency, low noise and quick response;
u With computer control and display system to complete parameters setting, control, data acquisition, processing,
analysis, storage and display, precise and accurate;
uEquipped with special Windows software for hydraulic testing machine, which can process data statistically and print
different kinds of test curve and reports. With functions of curves enlargement, comparison, tranversal, very
intelligent, convenient.
uSelf-build powerful test database, in which data can be saved, inquired and retrieved any time and can realize
transmissio and interchange of data with local area network;
Specifications :
No |
Item |
Technical parameters |
1 |
Max. test force |
2000kN |
2 |
Measuring range(kN) |
2% -100%F.S |
3 |
Accuracy of indicating value |
≤ ±1% |
4 |
Max. compression space |
0-400 mm |
5 |
Distance between two columns (L×W) |
500 mm × 400 mm |
6 |
Size of the spherical upper platen |
¢300mm |
Size of the square lower pressure platen |
400 mm × 400 mm |
|
7 |
Max. stroke of the piston |
150mm |
8 |
Loading speed |
0~40KN/s, adjustable |
9 |
Size of main machine (including the Max. stroke of the piston) |
700 × 600 × 1800 mm |
Size of the servo control cabinet |
1200 × 800 × 1100mm |
|
10 |
Weight |
1200kg |
