2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable

2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable thumbnail-1
2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable thumbnail-2

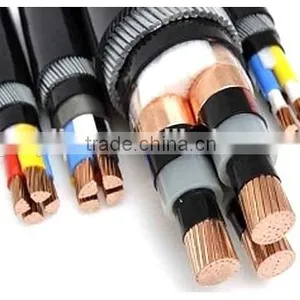

2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable thumbnail-3
2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable thumbnail-4
2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable thumbnail-5
2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable photo-1

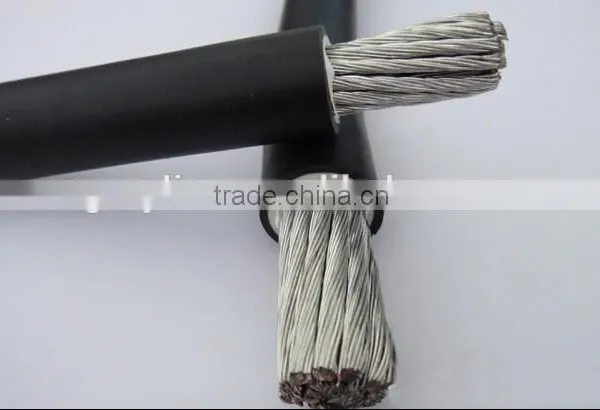

2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable photo-2

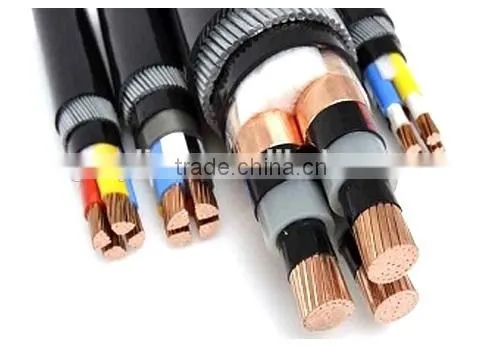

2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable photo-3
2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable photo-4
2016 Medium Voltage XLPE Power Cable Insulated Power Cable Armoured Cable photo-5
US$ 0.1 - 99 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
CHANGFENG
Model Number:
YJV22
Contact Supplier Request Quote Chat Now
Changfeng Wire & Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name CHANGFENG
Model Number YJV22
Insulation Material XLPE
Type Medium Voltage
Application Construction
Conductor Material Copper
Jacket PVC
Product Description

1. Standards: GB/T12706-2008, IEC60502-2005.

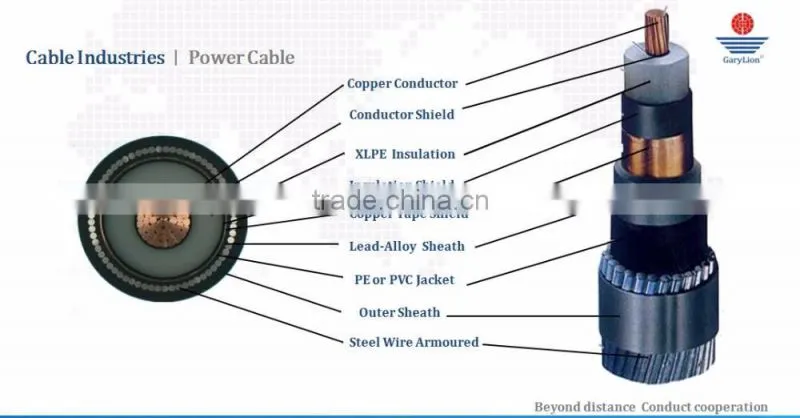

2. Description: copper conductor, XLPE insulated PVC sheathed steel tape armoured power cable.

3. Conductor: Copper.

4. Insulation/sheath:XLPE/ PVC

5. Voltage:0.6/1KV

6. Operation characteristic

Operation temperature
The maximum operating temperature of cores shall not exceed 90ºC when the cable is used for long period. The temperature of cores shall not exceed 250ºC at short circuit for 5 seconds. The laying temperature should not below 0ºC during installation.
Permissible bending radius
The permissible bending radius for cables shall be with the regulation as below:
For single-core no armoured cable: R>12D For multi-core:R>10D
Where: R-bending radius (mm) D-overall diameter of the cable (mm)
The single core cable of using in AC circuit shall be without armour or with steel wire and shall not be laid magnetic ducts.

7. Type ,description and application

Type
Description
Application
YJV(YJY)
YJLV(YJLVY)
Copper(Aluminum)conductor, XLPE insulated PVC sheathed power cable
For laying indoors, in tunnels, in ducts. Able to bear external mechanical force but not lager pulling forces. Single core cables are impermissible to be laid in magnetic ducts.
YJV22(YJY22)
YJLV22(YJLY22)
Copper(Aluminum)conductor, XLPE insulated PVC sheathed steel tape armoured power cable.
For laying indoors, in tunnels, in ducts and underground. Able to bear external mechanical force but not lager pulling forces. Impermissible to user single core in A.C circuit.
Specification
Type
No. of Cores
Rated Voltage(kV)
3.6/6
6/6 6/10
8.7/10 8.7/15
12/20
18/20 18/30
21/35
26/35
Nominal Cross-Section of Conductor
YJV
YJLV
YJY
YJLY
1
25-800
25-800
25-800
35-800
50-630
50-630
50-630
3
25-630
25-630
25-500
35-500
50-400
50-400
50-400
YJV22
YJLV22
YJY23
YJLY23
1
25-800
25-800
25-800
35-800
50-630
50-630
50-630
3
25-630
25-630
25-500
35-500
50-400
50-400
50-400
YJV32
YJLV32
YJY33
YJLY33
1
25-800
25-800
25-800
35-800
50-630
50-630
50-630
3
25-630
25-630
25-400
35-400
50-240
50-185
50-150

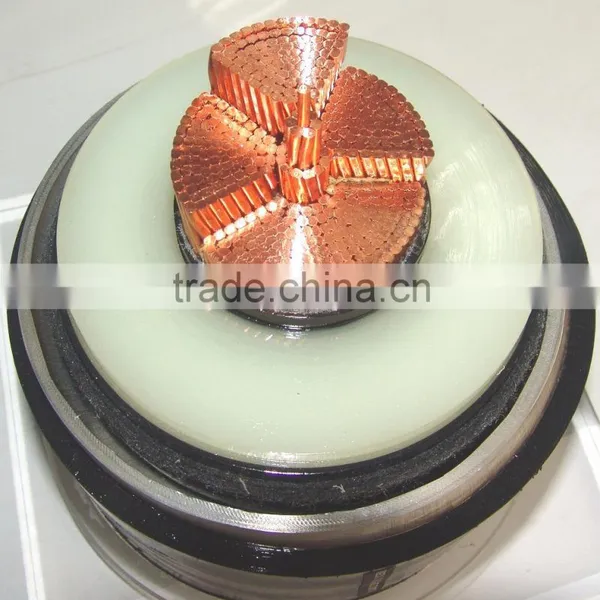

Detailed Images
Packing & Delivery
Our Company


Changfeng Wire & Cable Co., Ltd. was build in 1996, Domestic Sales Head Office is located in Beijing, International Trading Department is in Shandong, and the factory is located in Sha River Bridge Industrial Park, Hejian City, Hebei Province, covering an area of more than 178,000 square meters, the first phase construction area is 78,000 square meters more, registered capital 18 Million USD, project investment 81.8 Million USD. We professionally have engaged in Cable manufacturing for 18 years, our products cover: Power Cable, Mineral Insulated Flexible Fire Proof Cable, Alloy Cable, and ESP Cable for Oil Wells. We have API, UL certificates. We are approved by the State Administration for Industry and Commerce bareheaded administrative divisions, with the collection of cable research and development, production, sales in the integration of large international company.
