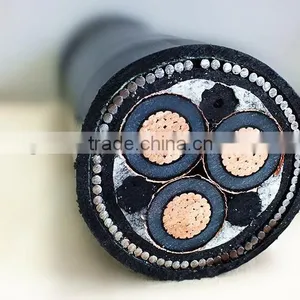

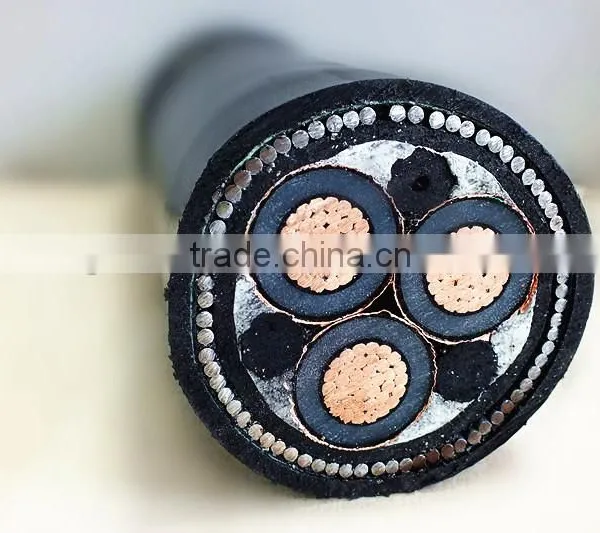

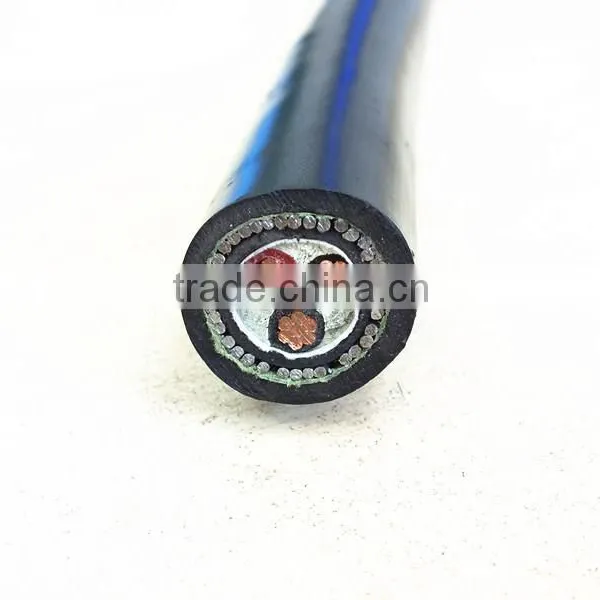

Help CenterXLPE /PVC Power Cable
Related Products
-
Low Voltage /Medium Volatge /High Voltage XLPE /PVC Power CableUS$ 0.5 - 10MOQ: 1000 Meters -
Low Voltage /Medium Volatge /High Voltage Power CableUS$ 0.5 - 10MOQ: 1000 Meters
-
YJV TYPE Power CableUS$ 0.5 - 10MOQ: 1000 Meters
-
YJV Power CableUS$ 0.1 - 0.1MOQ: 100 Meters
-
YJV Power Cable XLPE Insulation and PVC JacketUS$ 0.1 - 0.1MOQ: 100 Meters
Low Voltage Power Cable
Applications
Used for power transmission and distribution line with voltage rated at 35kV and below.
Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Type |
Cu/XLPE/STA/PVC, Cu/XLPE/SWA/PVC, Cu/XLPE/PVC/NY/PVC, Cu/PVC/PVC/NY/PVC, Cu/PVC/STA/PVC, Cu/PVC/SWA/PVC |
Voltage |
0.6/1 kV |
Cores |
1C, 2C, 3C, 4C, 5C, 3C+1E,4C+1E, 3C+2E |
Range of Nominal cross section |
1.5 mm2 - 630 mm2 |
Application |
It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground (when well protect in ducts, in trenches and in steel support brackets. ) |
Standard |
IEC 60502, AS/NZS5000.1, BS 7870, GB/T12706… |
Constructions |
Conductor: Class 1/2 annealed bare copper solid or strands Insulation: PVC, XLPE Armour:Steel tape or Steel wire Sheath: PVC |
Max. Operating Temperature |
70 ℃, can be 90 ℃ and 110 ℃ as per requirement |
Packing |
Wooden drum or as per requirement |
Production Capacity |
30 kilometer / day |
MOQ |
5000 meters for small size, 1000 meters for big size. |
Delivery time |
10 -15 working days |
Remark |
The cable can be of flame retardance, fire resistance, environment friendly or other property |
