Help Center0.6/1kV Copper / Aluminium Conductor XLPE Insulated Power Cable
Related Products
-
0.6/1kV Copper / Aluminium Conductor XLPE Insulated PVC Jacket Power CableUS$ 0.2 - 1MOQ: 500 Meters -
0.6/1kV Copper / Aluminium Conductor XLPE Insulated PVC Jacket Power CableUS$ 0.2 - 1MOQ: 500 Meters
-
Aluminum Alloy Power Cable Electrical Cable /wireUS$ 0.82 - 0.82MOQ: 100 Meters
-
Aluminum Core CableUS$ 0.91 - 0.91MOQ: 200 Meters
-
ABC CableUS$ 0.1 - 1MOQ: 100 Meters
XLPE Insulation Power Cable
a, Number of cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
b, Construction:

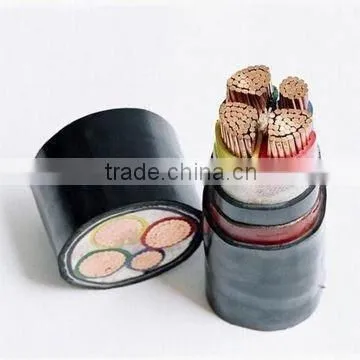

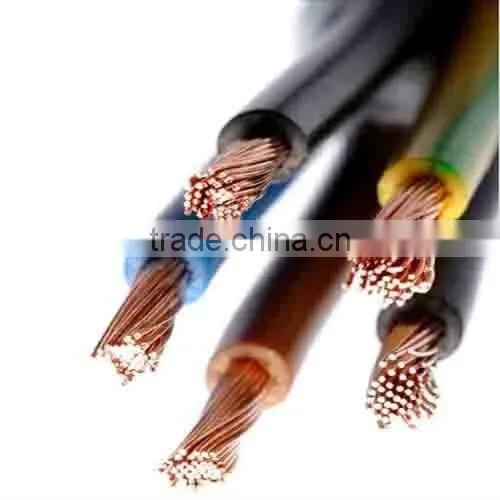

Conductor: Solid or stranded copper Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC) Filler: Polypropylene filament with lapped binding tape Binder: Binding tape Inner sheath: Polyvinyl chloride (PVC) Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA) Sheath: Polyvinyl chloride (PVC)
c, Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35 2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Application:
1)These cables are most suitable for direct burial or for installation on trays or ducts, Where there is a risk of mechanical damage, armoured cables should be used.
2) For laying in ground along route with large difference of level able to bear external mechanical forces.
