Products and Technical Parameters

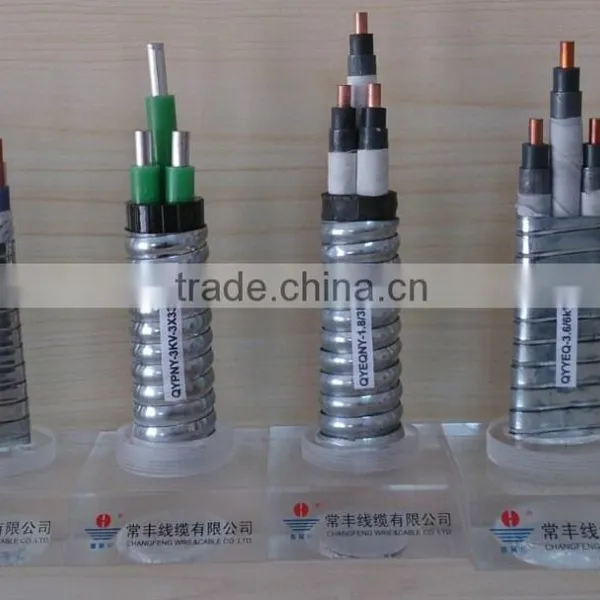

QYEQ Submersible Power Cable
-
Products Description
EPDM insulation, Inner lead sheath,Fiber tape covered completely over the lead sheath, Nitrile rubber jacket, Full galvanized steel (or Stainless steel or Monel) tape armour, Round type.
-
Production Range
Voltage: 3kV 4kV 5kV 6kV
Temperature: The permissible and long-term working temperature is 120℃(248℉).
-
Performing Criterion
GB/T16750-2008,API RP 11S6-2008
-
Application Range
The cable is applicable for using in Electricity Submersible Pump Units with rated voltage less than 3kV or 6kV. It has the excellent ability of oil-resistance, heat-resistance and corrosion-resistance.
-
Delivery & Packing
We use all steel corrugated reels with rapped fuming wood outside, the packing length is according to customers’ requirements, general minimum length is 1000 meters(3281 Feet); the cable are not allowed to knock against or twist, both ends should be moistureproof.

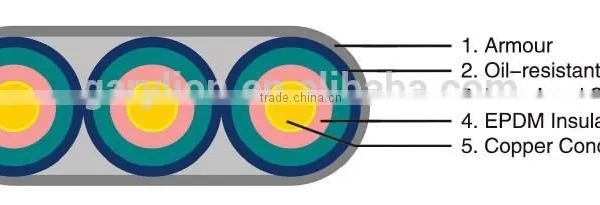

Cable’s Cross Section Chart
-
Specification and Parameters
|
Phase
|
Cross Section mm2 |
Conductor Diameter mm |
DC Resistance at 20℃ ≤Ω/km |
Insulation Thickness mm |
Jacket Thickness mm |
Overall Size and Weight |
||||||
3kV |
6kV |
|||||||||||
Untinned |
Tinned |
3kV |
6kV |
3kV |
6kV |
mm×mm |
kg/km |
mm×mm |
kg/km |
|||
3 |
16 |
1/4.62 |
1.15 |
1.16 |
1.9 |
2.3 |
1.0 |
1.0 |
13×36 |
2211 |
13×38 |
2410 |
3 |
20 |
1/5.19 |
0.84 |
0.86 |
1.9 |
2.3 |
1.0 |
1.0 |
14×38 |
2442 |
14×40 |
2730 |
3 |
33.5 |
1/6.54 |
0.54 |
0.56 |
1.9 |
2.3 |
1.0 |
1.0 |
15×43 |
3116 |
15×45 |
3320 |
3 |
42.5 |
1/7.35 |
0.43 |
0.44 |
1.9 |
2.3 |
1.0 |
1.0 |
16×45 |
3544 |
16×47 |
3850 |
Index of Performance
|
Cross Section |
Conductor Diameter mm |
3kV Insulation Resistance MΩ·km |
3kV Leakage Current at 15.6℃ μA/km/kV |
6kV Insulation Resistance MΩ·km |
6kV Leakage Current μA/km/kV |
DC Voltage Test For 5 Minutes |
||
mm2 |
AWG |
3kV |
6kV |
|||||
16 |
5 |
4.62 |
1484 |
0.700 |
1692 |
0.607 |
27kV |
35kV |
20 |
4 |
5.19 |
1352 |
0.775 |
1548 |
0.656 |
27kV |
35kV |
33.5 |
2 |
6.54 |
1012 |
0.984 |
1170 |
0.853 |
27kV |
35kV |
42.5 |
1 |
7.35 |
919 |
1.083 |
1063 |
0.951 |
27kV |
35kV |
