QYYEQNY Submersible Pump Cable

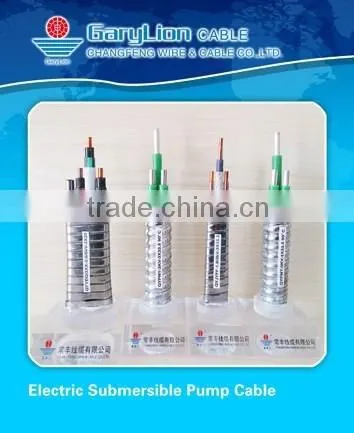

Electric Submersible Pump Cable

QYYEQNY PI&EPDM / Alloy Lead / NBR / 232℃(450℉) / Round

Products Description

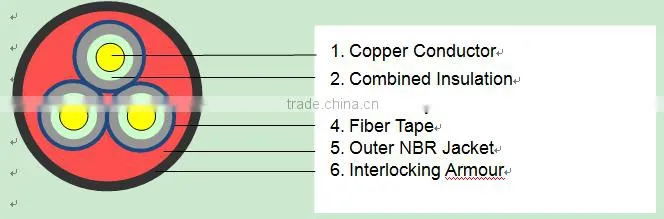

Oxygen-free Solid (Stranded) Bare Copper Conductor, Combined Insulation with Polyimide-F46 Composite Film and EPDM Rubber, Inner Alloy Lead Sheath, Fiber Tape covered completely over the Sheath, Outer Nitrile Rubber Jacket, Full Galvanized Steel (or Stainless Steel or Monel) Tape Interlocking Armour, Round type.

Production Range

Voltage: 3kV, 4kV, 5kV, 6kV

Temperature: The permissible and long-term working temperature is 232℃(450℉).

Performing Criterion

API RP 11S5-2008, 11S6-2008; IEEE 1017, 1018, 1019; GB/T 16750-2008

Application Range

The cable is applicable for using in Electric Submersible Pump Units with rated voltage less than 3kV or 6kV. It has the excellent function of oil-resistance, heat-resistance and corrosion-resistance.

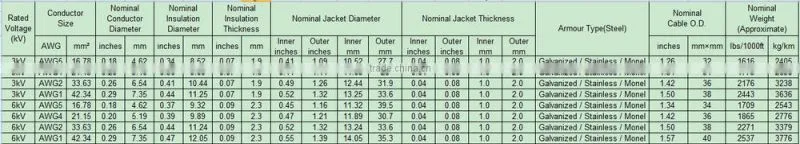

Specification & Parameters

We can also produce customers’ required cable according to the concrete specification.

Delivery & Packing

All-steel corrugated reels with fixed base, outside wrapped by fuming wood;

Packing length according to customers' requirements.
