Specifications
Press Plumbing Stainless Steel Fittings1.Install simply and quickly
2.Reliable connection security
3.Maintenance- free
Stainless steel press fitting and pipe system
Water working pressure high to 1.6MPa (232psi);
Only need 8 second to finish install a connector, very easy install;
Perfect choice to replace traditional pipe fitting.
Standard:
Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116
Pipe standard: GB/T 19228.2-2003, BS EN 10312 and JIS G3448
Sealing ring standard: GBT 19228.3-2003, EN681-1: 1998
Technical information:
-- Material: Stainless steel 304 and 316 available.
-- Max working pressure 1.6MPa (equal to 232 psi),
Testing water pressure: 2.5MPa for JIS sizes (equal to 362.5psi), and 5MPa for EN10312 sizes.
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: Cold water, hot water, compressed air, gas, oil etc

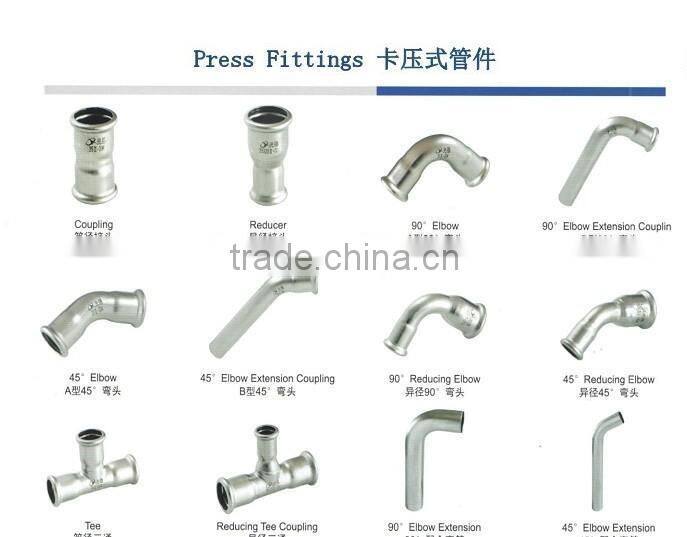

Press fitting range:
Coupling -- Equal coupling, Reducing coupling, Adjustable coupling, coupling with screw;
Elbow -- equal elbow, reducing elbow, elbow with plain end, elbow with screw;
Tee -- equal tee, reducing tee, tee with screw;
Other fittings -- Pipe cap, pipe bridge and Flange.
Sealing ring material:
Option 1. CIIR(Chlorinated butyl rubber): Sanitary for human consumption, not oil resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air.
Option 2. EPDM(Ethylene-Propylene-Diene Monomer): Sanitary for human consumer, not oil resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air and compressed gas.
Option 3: FKM(Fluororubber): It is both oil proof and sanitary. Suitable for edible oil, compressed air. But a little more expensive than CIIR, EPDM and NBR.
