cold rolled steel straightening machine 4mmx1600mm
Main technical parameters of cold rolled steel straightening machine 4mmx1600mm:
a. applied to: cold rolled steels;
b. material quality: first class steel coils of the international standard;
c. width:1600mm(Max);
d. thickness: 0.5-4mm;
e. diameter of leveling rollers: φ85
f. distance of leveling rollers: 90mm,
g. material of leveling roller:GCr15,hardness:HRC58-60
Brife introducton of cold rolled steel straightening machine 4mmx1600mm:
1.It is equipped with the press and pinch device at the entry which is driven by hydraulic.
2.It is composed of 17 leveling rollers, 2 groups of supporting rollers ,driving device and 2 pinch rollers and frame. Both sides of each rolling wheel is transmitted by needle pins all are the main force rollers. the total quantity of the rollers is 19, the diameter is φ85 and the distance between the rollers is 90mm, with supporting rollers. All the rollers are plating leather to protect the stainless steel plate surface is not wear.
3.The function of the supporting roller is to balance the leveling rollers force and reduce the friction to the rollers.
4.The working rollers can be adjusted the gap electrically which is controlled by 2 hand wheel to ensure the leveling quality.
5.Driving model: all the independent rollers and gear box are driven by 55Kw frequency control motor.

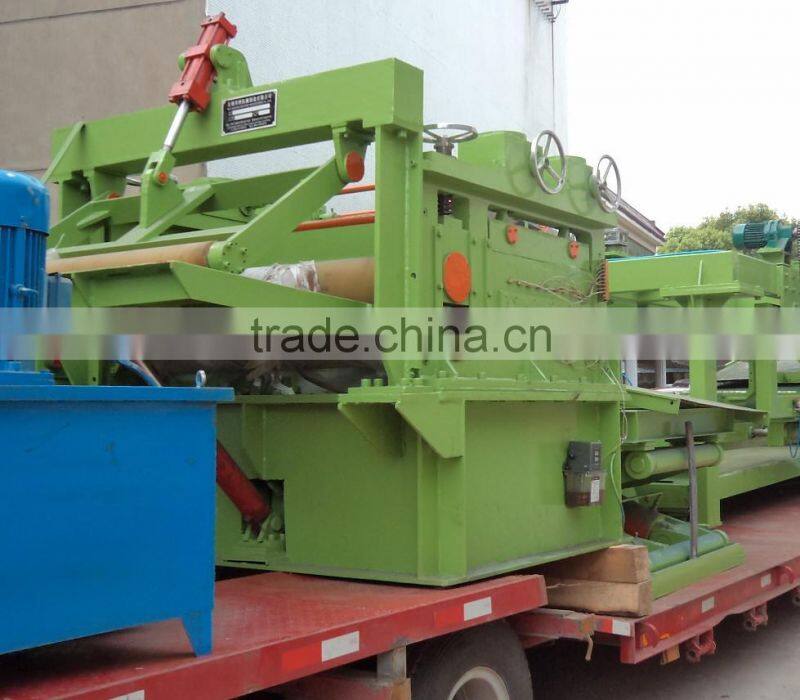

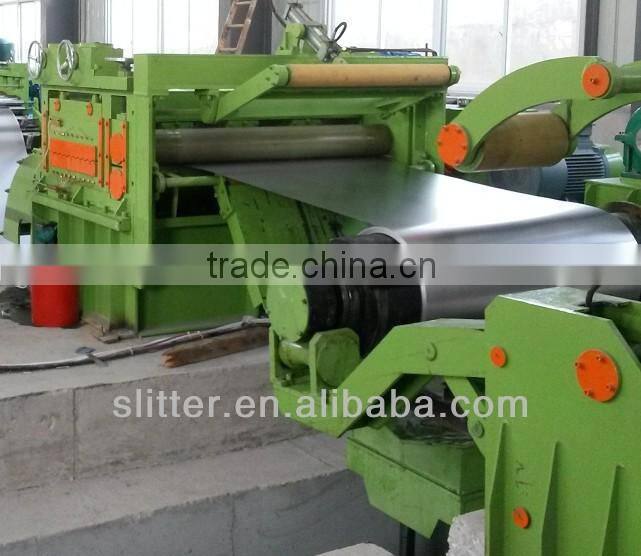

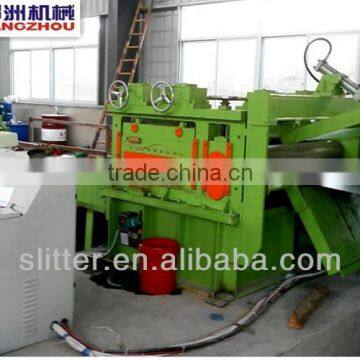

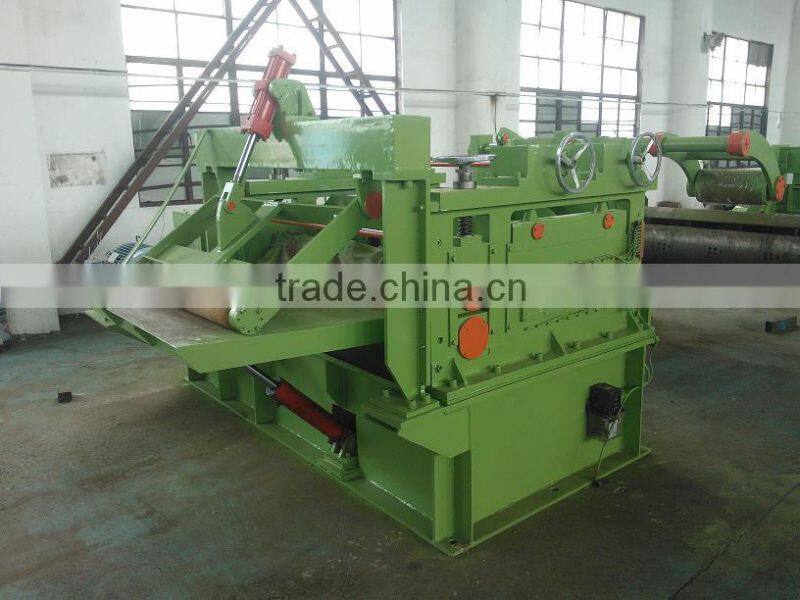

The pictures of cold rolled steel straightening machine 4mmx1600mm:
Company Introduction
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Jiangyin, Wuxi City. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, Steel cut to length machines, Flat bar chamfering, deburring and straightening machines, . Our products are supplied to roll forming machine and pipe welding factories and can be also applied to other industries which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Our Advantages
1.we can do the designs according to the customers'requirement
2. We can give you the best suggestions to meet your machine requirements
3.we can offer you the high quality & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design and production team
6. promptly delivery. small order is welcome.
Welcome to our company like them
Our company is a manufacturer, welcome to our factory!!!
