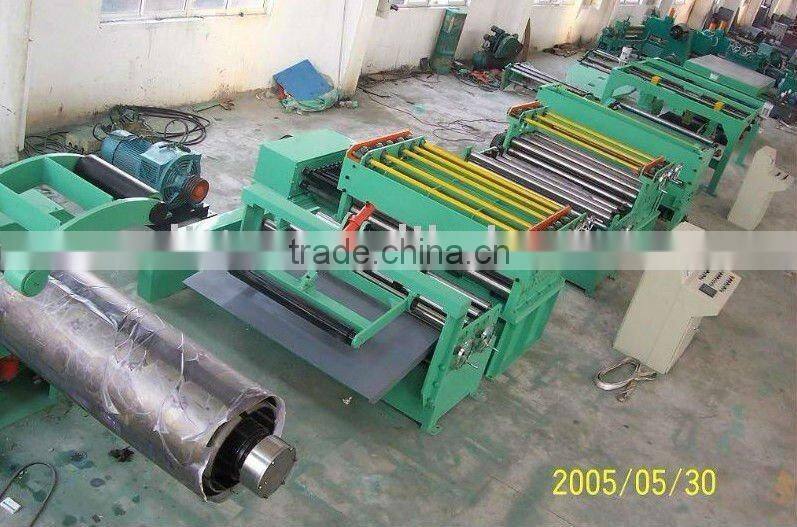

Help CenterJP 2-6x1500 Metal Plate Flattener or Leveling Machine or Straightening Machine
Related Products
-
Cold Rolled Leveling or Straightening Machine for Stainless SteelNegotiableMOQ: 1 Set -
JP 0.15-2x1000 Metal Sheet or Steel Coils Leveler MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
6x1600 Fourfold-roller Leveling /flattening MachineUS$ 25,000 - 60,000MOQ: 1 Set
-
JP 3x1000 Metal Coil Straightening MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
Metal Sheet Leveling MachineUS$ 20,000 - 40,000MOQ: 1 Set
Specifications
il thickness:2-6mm;il width:1500mm;
3.high precision
4.built to order
Technical parameters
1.Specification of processable material ---- thickness δ=2-6 width B≤1500mm
2.Application---various steel plate include ASTM/ Q195/Q235/Q352
3.Tensile strength----δb≤450MPa
4.Leveling rollers---150(diameter)×1600(width) Material---GCr15(HRC59°~61°)
5.No.of leveling rollers---13.
6.Supporting rollers---equipped with multiple groups of upper and lower supporting rollers.
7.Drive model---all the independent rollers and gear box are driven by direct-current electric machine, and consists of gear distribution box and all-round shaft connection and hydraulic brake. Etc.
8.Line speed---v=5~20m/min
9.The base is made by welding of the steel plate.
10.The assemblies of leveling rollers with circulating oil lubrication and oil box.
11.The process of rollers raw material- conditioning- roughing- hardening -finishing.
12.The machine is equipped with electric control box.
All our products can be made according to the need of yours !
