Specifications
Straightener1.High flattening precise straightener
2.High efficiency Competitive price strightening line
3.Applied to CRS
Main technical parameters of steel sheet leveling machine, leveler :
a. applied to: cold rolled steels;
b. material quality: first class steel coils of the international standard;
c. width:1250mm(Max);
d. thickness: 0.3-3mm;
e. diameter of leveling rollers: φ65
f. distance of leveling rollers: 70mm,
g. material of leveling roller:GCr15,hardness:HRC58-60
Brife introducton of steel sheet leveling machine, leveler :
1.It is equipped with the press and pinch device at the entry which is driven by hydraulic.
2.It is composed of 17 leveling rollers, 2 groups of supporting rollers ,driving device and 2 pinch rollers and frame. Both sides of each rolling wheel is transmitted by needle pins all are the main force rollers. the total quantity of the rollers is 19, the diameter is φ65 and the distance between the rollers is 70mm, with supporting rollers. All the rollers are plating leather to protect the stainless steel plate surface is not wear.
3.The function of the supporting roller is to balance the leveling rollers force and reduce the friction to the rollers.
4.The working rollers can be adjusted the gap electrically which is controlled by 2 hand wheel to ensure the leveling quality.
5.Driving model: all the independent rollers and gear box are driven by 55Kw frequency control motor.

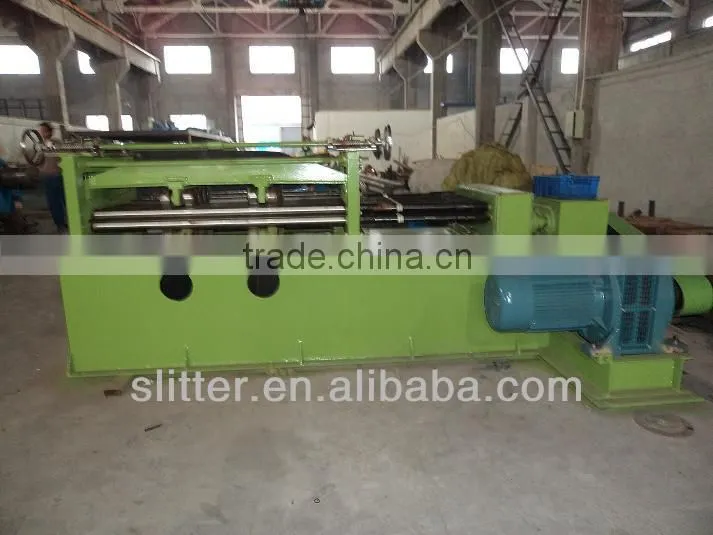

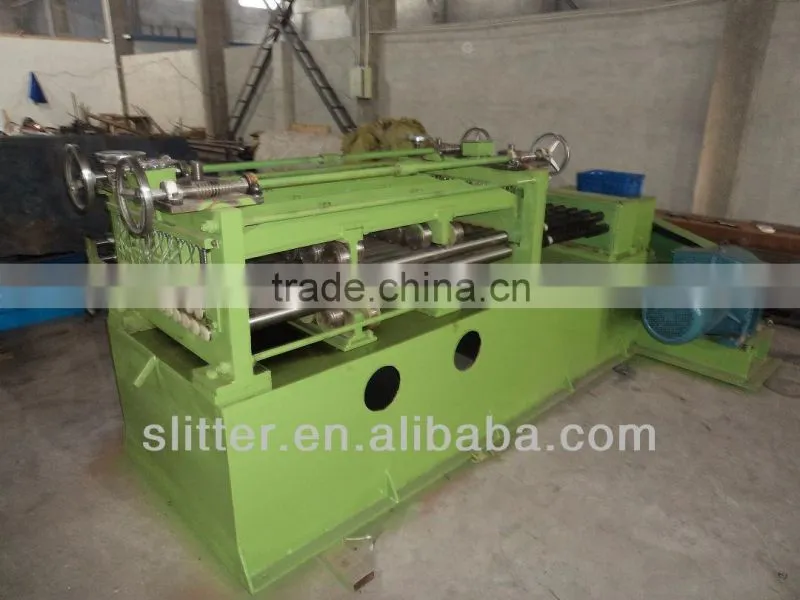

The pictures of steel sheet leveling machine, leveler :

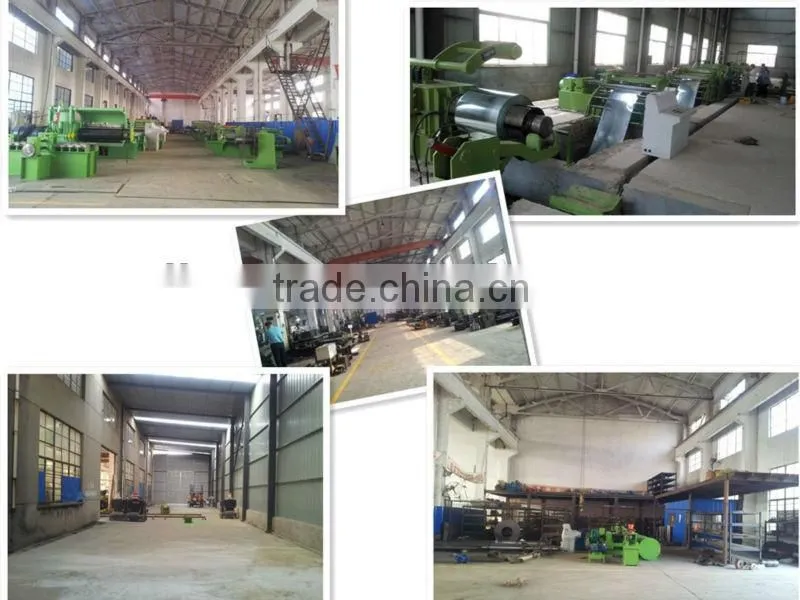

Company Information:
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
